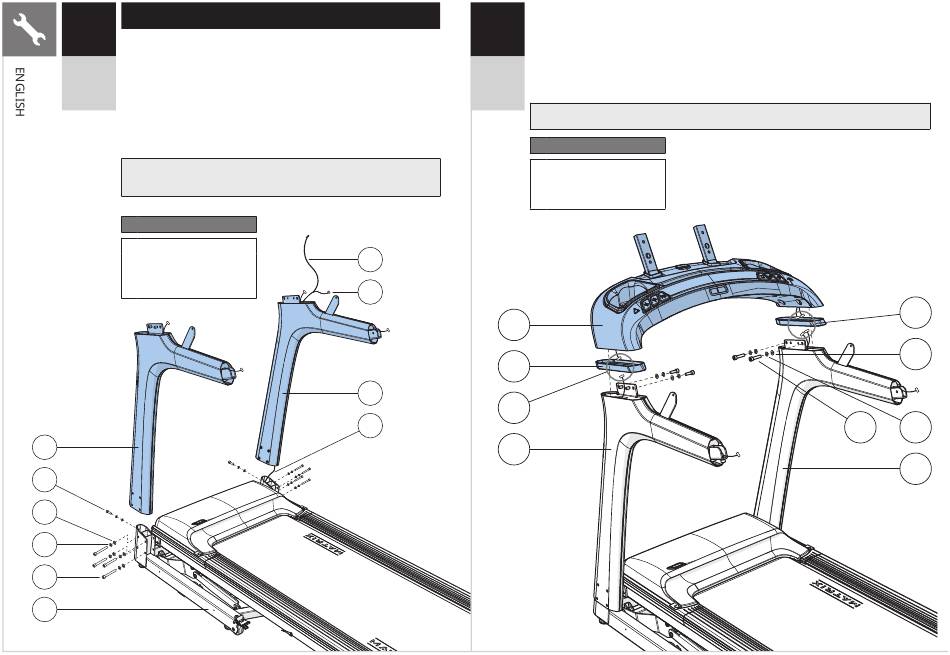

IMPORTANT: Do not tighten bolts until step 3 is complete.
1
A Open HARDWARE FOR STEP 1.
B Attach LEFT CONSOLE MAST (1) to BASE FRAME (2) using 4
BOLTS (A), 4 SPRING WASHERS (B) and 4 FLAT WASHERS (C)
TF30
from the side and 1 BOLT (D), 1 SPRING WASHER (B) and 1
TF50
FLAT WASHER (C) from the rear. Tighten to 20 Nm / 15 lb-ft.
C Attach LEAD WIRE (3) to CONSOLE CABLE (4) and pull lead
wire through RIGHT CONSOLE MAST (5). After pulling the lead
wire through the mast, the top of the console cable should be
located at the top of the mast. Detach and discard lead wire.
NOTE: Be careful not to pinch any wires while attaching the right
console mast.
Hardware For Step 1
Description
A Bolt
B Spring Washer
C Flat Washer
D Bolt
1
D
C
B
A
2
36
Qty
3
8
10
10
4
2
5
4
A Open HARDWARE FOR STEP 2.
2
B Place CONSOLE MAST BOOTS (6) on top of CONSOLE MASTS (1 & 5).
C Connect the CONSOLE CABLES (4) , discard the wire ties, and tuck the cables inside
the CONSOLE MASTS (1 & 5) and slide CONSOLE BASE (7) into console masts.
TF30
D Attach CONSOLE BASE (7) to CONSOLE MASTS (1 & 5) using 4 BOLTS (E), 4
SPRING WASHERS (F) and 4 FLAT WASHERS (G). Tighten to 20 Nm / 15 lb-ft.
TF50
NOTE: Be careful not to pinch any wires while attaching the console base.
Hardware For Step 2
Description Qty
E Bolt 4
F Spring Washer 4
G Flat Washer 4
7
6
4
1
4
G
E F
5
