Buttons operation
Control Condition/operating
mode
ON button
Device is switched off
Display off
Device is switched on,
quick menu, main menu
ZOOM button Device is switched on,
quick menu, main menu
REC button
Device is switched on,
quick menu, main menu,
video mode
Device is switched on,
quick menu, main menu,
video recording activated
Device is switched on,
quick menu, main menu,
photo mode
Controller
Device is switched on
Quick menu
Main menu
Zoom

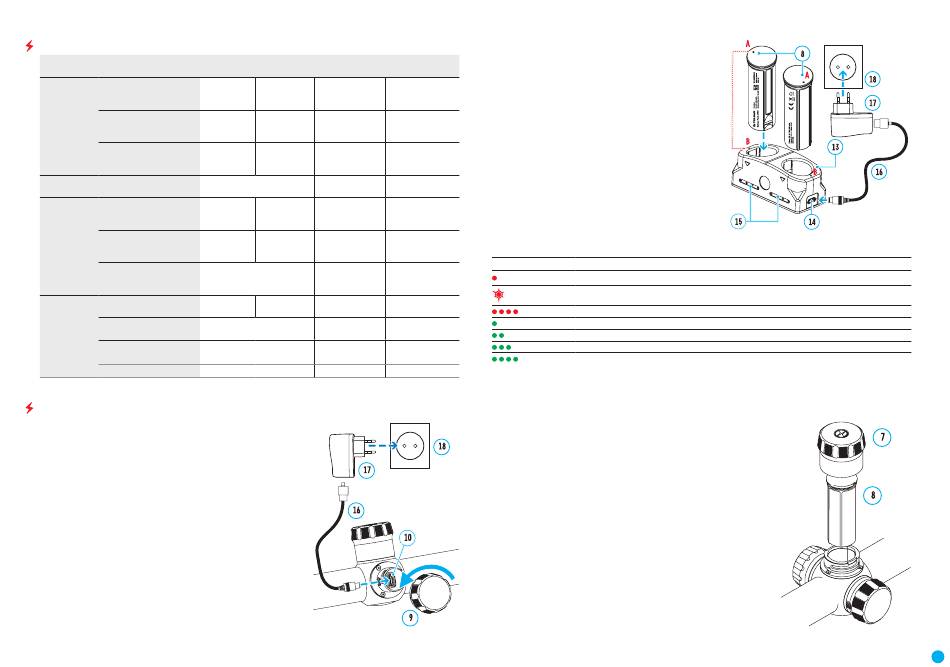

USING BATTERY PACK
DIGEX night vision digital riflescopes come with a built-in rechargeable
Lithium-Ion APS3 battery pack with a capacity of 3200mAh and a removable
rechargeable Lithium-Ion APS2 battery pack with a capacity of 2000mAh.
Batteries should be charged before using.
Charging battery pack:
• Open the MicroUSB cover (9) by turning it counterclockwise.
•
Connect the MicroUSB plug of the USB cable (16) to the MicroUSB port
(10) in the body of the sight.
•
Connect the second USB plug of the USB cable (16) to the MicroUSB
port on the mains adapter (17). Plug the device into a 100-240V socket
(18).
Attention! When charging batteries via the MicroUSB port (10), the built-in
APS3 battery pack is charged first. When it is completely charged, the
removable APS2 battery pack starts charging. When the device is in use,
power consumption occurs in the reverse sequence.
USER MANUAL FOR DIGEX NIGHT VISION DIGITAL RIFLESCOPE
First short Subsequent Long press
press short presses
Powers on Enables the Powers on device
device SumLight
function
Turns on Enables the Turns device off
display SumLight
function
Enables the Turns off the Turns display off
SumLight SumLight / turns device off
function function
Changes magnification Turns PiP on/off
(zoom)
Starts video Pause Switches video/
recording photo modes
Pause Start video Stop video
recording recording
Photography Switches video/
photo modes
Accesses - Accesses main
quick menu menu
Upwards navigation Exits quick menu Parameter change
Confirms values, enters menu Exits menu items,
items main menu
- -
The rechargeable Lithium-Ion APS2 battery pack can be
recharged using the APS charger*.
Rotation
• Insert the APS2** battery pack (8) along the rail into the APS
charger slot as far as it will go. The APS charger is supplied
-
with your device.
• Point A on the battery and point B on the charger should
aligned.
-
•
Two batteries can be charged at the same time: the second
slot is designed for this.
-
• Connect the MicroUSB plug of the USB cable (16) to the port
(14) of the charger (13).
• Connect the second plug of the USB cable (16) to the USB
-
port on the mains adapter (17). Plug the device into a 100-
240V socket (18).
-
•
The LED indicator (15) will display battery charge level (see
the table).
•
Supplied as part of package.
-
* APS3 batteries sold separately.
LED Indicator*
-
-
Navigation
through menu
Smooth Zooming
* LED indicator displays the current battery charge status for 30 seconds when the APS charger is not plugged
in. When power is being supplied, the indicator is constantly displaying the current battery charge status, the
LEDs are additionally flickering to display the battery charging process.
INSTALLING THE BATTERY PACK IN THE RIFLESCOPE
•
Turn the battery cover (7) counterclockwise and remove it.
• Install the battery (8) into the battery compartment using the special
guides in the device body designed for it.
•
When properly installed, the battery is fixed in the battery compartment of
the device.
• Close the battery compartment cover (7), turning it clockwise.
PRECAUTIONS
•
When charging, always use the charger supplied with the scope. The use
of any other charger may permanently damage the battery pack or the
charger.
•
After being stored for a long time, the battery should be partially charged:
it should not be completely charged or completely discharged.
•
Do not charge the battery immediately after bringing it from cold to warm.
Wait for 30-40 minutes so that the battery may warm up.
•
Do not leave the battery unattended while charging.
Battery charge status
Battery level is from 0% to 10%. Charger is not connected to the mains.
Battery level is from 0% to 10%. Charger is connected to the mains.
Defective battery. Do not use.
Battery level is from 10% to 20%.
Battery level is from 20% to 60%.
Battery level is from 60% to 95%.
The battery is completely charged and can be disconnected from the charger.
