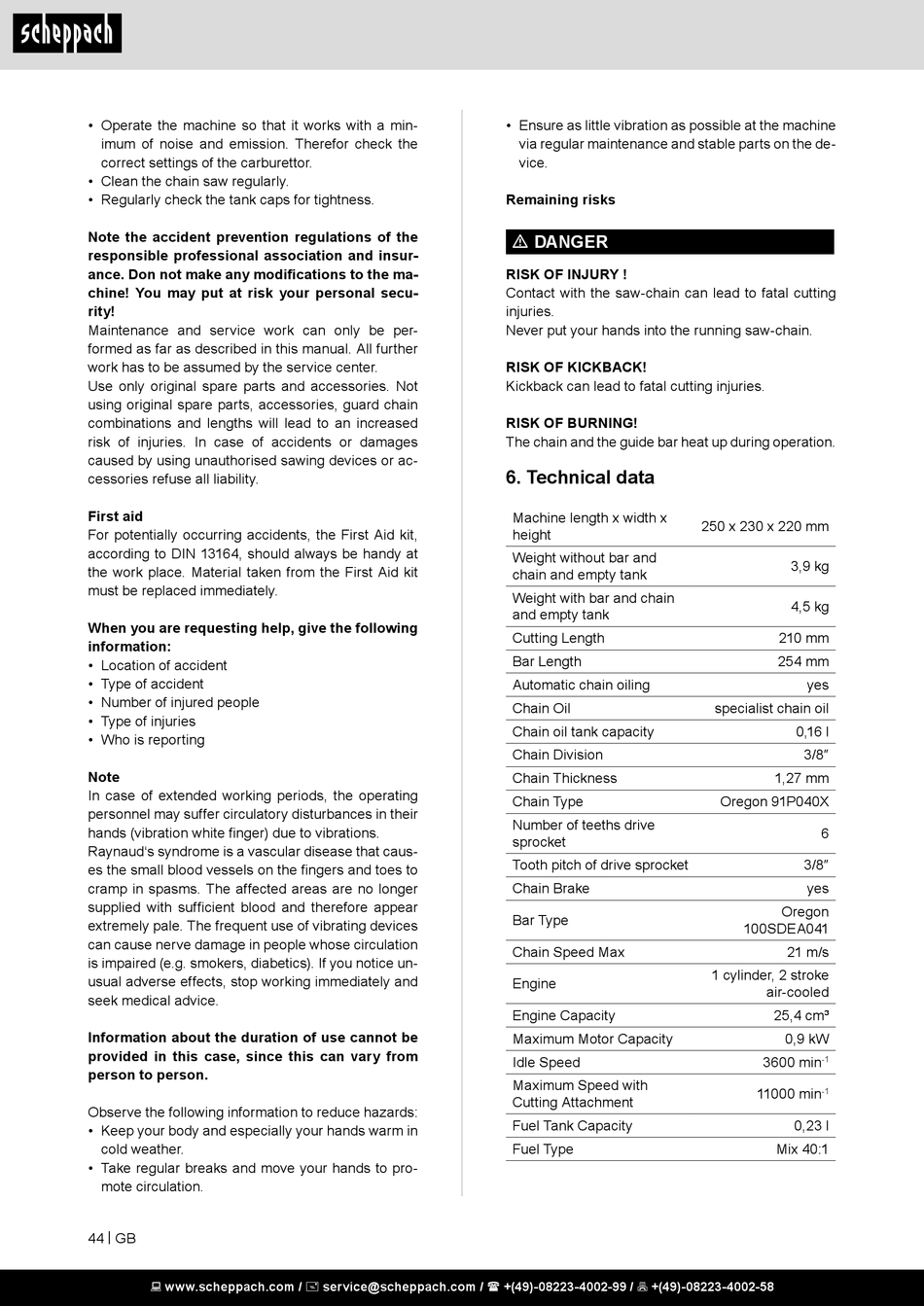

Technical Data - Scheppach CSP2540 Original Bedienungsanleitung

• Operate the machine so that it works with a min-
imum of noise and emission. Therefor check the
correct settings of the carburettor.
• Clean the chain saw regularly.
• Regularly check the tank caps for tightness.
Note the accident prevention regulations of the
responsible professional association and insur-
ance. Don not make any modifications to the ma-
chine! You may put at risk your personal secu-
rity!
Maintenance and service work can only be per-
formed as far as described in this manual. All further
work has to be assumed by the service center.
Use only original spare parts and accessories. Not
using original spare parts, accessories, guard chain
combinations and lengths will lead to an increased
risk of injuries. In case of accidents or damages
caused by using unauthorised sawing devices or ac-
cessories refuse all liability.
First aid
For potentially occurring accidents, the First Aid kit,
according to DIN 13164, should always be handy at
the work place. Material taken from the First Aid kit
must be replaced immediately.
When you are requesting help, give the following
information:
• Location of accident
• Type of accident
• Number of injured people
• Type of injuries
• Who is reporting
Note
In case of extended working periods, the operating
personnel may suffer circulatory disturbances in their
hands (vibration white finger) due to vibrations.
Raynaud's syndrome is a vascular disease that caus-
es the small blood vessels on the fingers and toes to
cramp in spasms. The affected areas are no longer
supplied with sufficient blood and therefore appear
extremely pale. The frequent use of vibrating devices
can cause nerve damage in people whose circulation
is impaired (e.g. smokers, diabetics). If you notice un-
usual adverse effects, stop working immediately and
seek medical advice.
Information about the duration of use cannot be
provided in this case, since this can vary from
person to person.
Observe the following information to reduce hazards:
• Keep your body and especially your hands warm in
cold weather.
• Take regular breaks and move your hands to pro-
mote circulation.
44 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
• Ensure as little vibration as possible at the machine
via regular maintenance and stable parts on the de-
vice.
Remaining risks
m DANGER
RISK OF INJURY !
Contact with the saw-chain can lead to fatal cutting
injuries.
Never put your hands into the running saw-chain.
RISK OF KICKBACK!
Kickback can lead to fatal cutting injuries.
RISK OF BURNING!
The chain and the guide bar heat up during operation.

6. Technical data

Machine length x width x
height
Weight without bar and
chain and empty tank
Weight with bar and chain
and empty tank
Cutting Length
Bar Length
Automatic chain oiling
Chain Oil
Chain oil tank capacity
Chain Division
Chain Thickness
Chain Type
Number of teeths drive
sprocket
Tooth pitch of drive sprocket
Chain Brake
Bar Type
Chain Speed Max
Engine
Engine Capacity
Maximum Motor Capacity
Idle Speed
Maximum Speed with
Cutting Attachment
Fuel Tank Capacity
Fuel Type
250 x 230 x 220 mm
3,9 kg
4,5 kg
210 mm
254 mm
yes
specialist chain oil
0,16 l
3/8"
1,27 mm
Oregon 91P040X
6
3/8"
yes
Oregon
100SDEA041
21 m/s
1 cylinder, 2 stroke
air-cooled
25,4 cm³
0,9 kW
3600 min
-1
11000 min
-1
0,23 l
Mix 40:1
