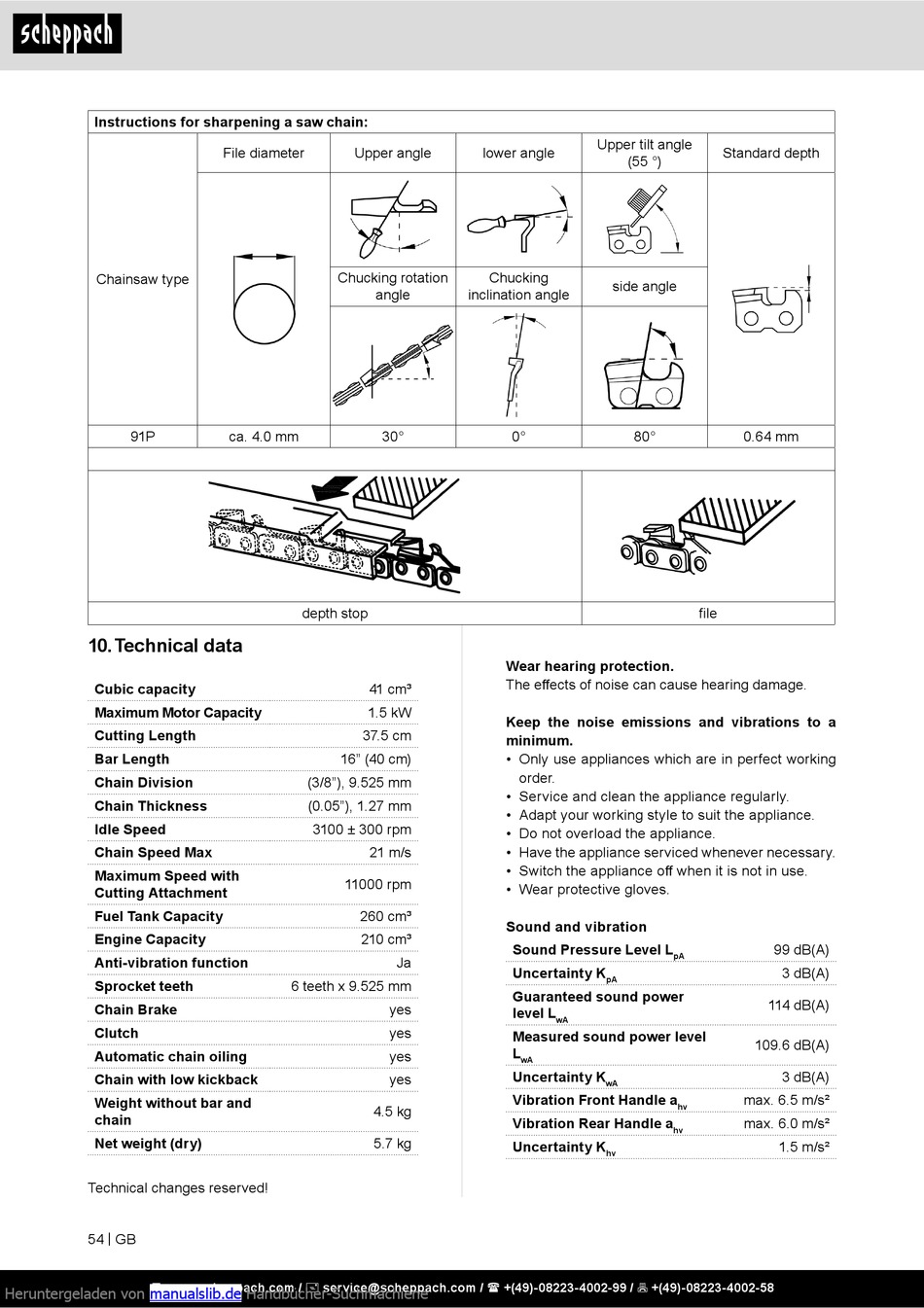

Technical Data - Scheppach CSP41 Original Bedienungsanleitung

Instructions for sharpening a saw chain:
Chainsaw type
91P

10. Technical data

Cubic capacity
Maximum Motor Capacity
Cutting Length
Bar Length
Chain Division
Chain Thickness
Idle Speed
Chain Speed Max
Maximum Speed with
Cutting Attachment
Fuel Tank Capacity
Engine Capacity
Anti-vibration function
Sprocket teeth
Chain Brake
Clutch
Automatic chain oiling
Chain with low kickback
Weight without bar and
chain
Net weight (dry)
Technical changes reserved!
54 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Heruntergeladen von manualslib.de
File diameter Upper angle
Chucking rotation
angle
ca. 4.0 mm 30°
depth stop
41 cm³
1.5 kW
37.5 cm
16" (40 cm)
(3/8"), 9.525 mm
(0.05"), 1.27 mm
3100 ± 300 rpm
21 m/s
11000 rpm
260 cm³
210 cm³
Ja
6 teeth x 9.525 mm
yes
yes
yes
yes
4.5 kg
5.7 kg
Handbücher-Suchmachiene
Upper tilt angle
lower angle
(55 °)
Chucking
side angle
inclination angle
0° 80°
Wear hearing protection.
The effects of noise can cause hearing damage.
Keep the noise emissions and vibrations to a
minimum.
• Only use appliances which are in perfect working
order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.
Sound and vibration
Sound Pressure Level L
Uncertainty K
pA
Guaranteed sound power
level L
wA
Measured sound power level
L
wA
Uncertainty K
wA
Vibration Front Handle a
Vibration Rear Handle a
Uncertainty K
hv
Standard depth
0.64 mm
file
99 dB(A)
pA
3 dB(A)
114 dB(A)
109.6 dB(A)
3 dB(A)
max. 6.5 m/s²
hv
max. 6.0 m/s²
hv
1.5 m/s²
