EN

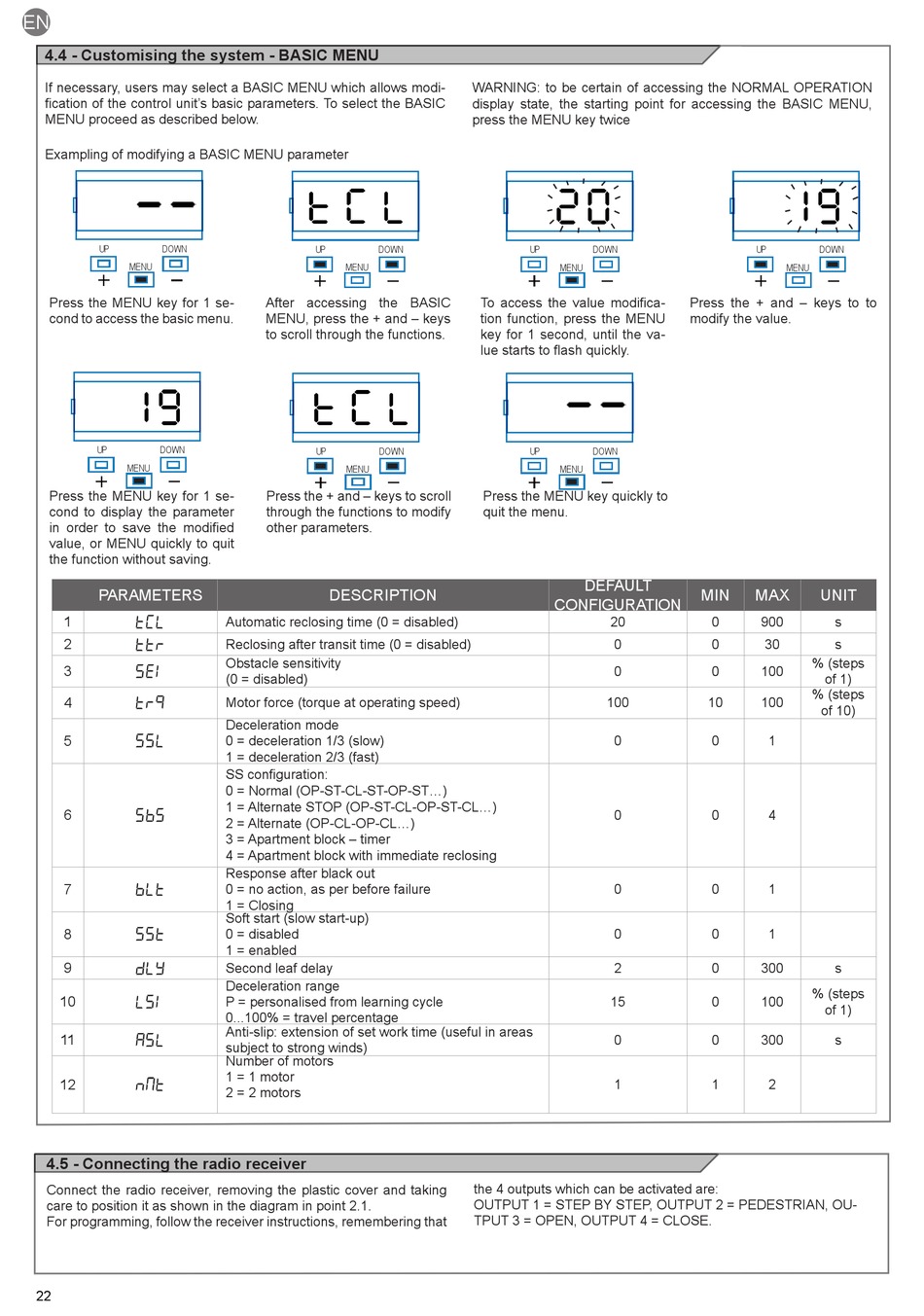

4.4 - Customising the system - BASIC MENU

If necessary, users may select a BASIC MENU which allows modi-
fication of the control unit's basic parameters. To select the BASIC
MENU proceed as described below.
Exampling of modifying a BASIC MENU parameter
UP DOWN
MENU
Press the MENU key for 1 se-
cond to access the basic menu.
UP DOWN
MENU
Press the MENU key for 1 se-
cond to display the parameter
in order to save the modified
value, or MENU quickly to quit
the function without saving.
PARAMETERS
TCL
1
ttr
2
SEI
3
trq
4
SSL
5
SbS
6
bLt
7
SST
8
dLY
9
LSI
10
ASL
11
n
nMt
12

4.5 - Connecting the radio receiver

Connect the radio receiver, removing the plastic cover and taking
care to position it as shown in the diagram in point 2.1.
For programming, follow the receiver instructions, remembering that
22 22
UP DOWN
MENU
After accessing the BASIC
MENU, press the + and – keys
to scroll through the functions.
UP DOWN
MENU
Press the + and – keys to scroll
through the functions to modify
other parameters.
DESCRIPTION
Automatic reclosing time (0 = disabled)
Reclosing after transit time (0 = disabled)
Obstacle sensitivity
(0 = disabled)
Motor force (torque at operating speed)
Deceleration mode
0 = deceleration 1/3 (slow)
1 = deceleration 2/3 (fast)
SS configuration:
0 = Normal (OP-ST-CL-ST-OP-ST...)
1 = Alternate STOP (OP-ST-CL-OP-ST-CL...)
2 = Alternate (OP-CL-OP-CL...)
3 = Apartment block – timer
4 = Apartment block with immediate reclosing
Response after black out
0 = no action, as per before failure
1 = Closing
Soft start (slow start-up)
0 = disabled
1 = enabled
Second leaf delay
Deceleration range
P = personalised from learning cycle
0...100% = travel percentage
Anti-slip: extension of set work time (useful in areas
subject to strong winds)
Number of motors
1 = 1 motor
2 = 2 motors
WARNING: to be certain of accessing the NORMAL OPERATION
display state, the starting point for accessing the BASIC MENU,
press the MENU key twice
UP DOWN
MENU
To access the value modifica-
tion function, press the MENU
key for 1 second, until the va-
lue starts to flash quickly.
UP DOWN
MENU
Press the MENU key quickly to
quit the menu.
DEFAULT
CONFIGURATION
20
0
0
100
0
0
0
0
2
15
0
1
the 4 outputs which can be activated are:
OUTPUT 1 = STEP BY STEP, OUTPUT 2 = PEDESTRIAN, OU-
TPUT 3 = OPEN, OUTPUT 4 = CLOSE.
UP DOWN
MENU
Press the + and – keys to to
modify the value.
MIN MAX UNIT
0 900 s
0 30 s
% (steps
0 100
of 1)
% (steps
10 100
of 10)
0 1
0 4
0 1
0 1
0 300 s
% (steps
0 100
of 1)
0 300 s
1 2
