Emergency Release; Maintenance - RIB R60 Handbuch

G
B
E
MERGENCY RELEASE
To be undertaken after disconnecting power supply.
In the case of power failure use the spanner provided and operate the
emergency release lever to lift the wheel.
In order to carry out the manual operation of the gate leaf the followings
must be checked:
- That the gate is endowed with appropriate handles;
- That these appropriate handles are placed so to avoid safety risks for
the operator;
- That the physical effort necessary to move the gate leaf should not be
higher than 225 N, for doors/gates for private dwellings, and, 390N for
doors/gates for commercial and industrial sites ( values indicated in
5.3.5 of the EN 12453 norm).

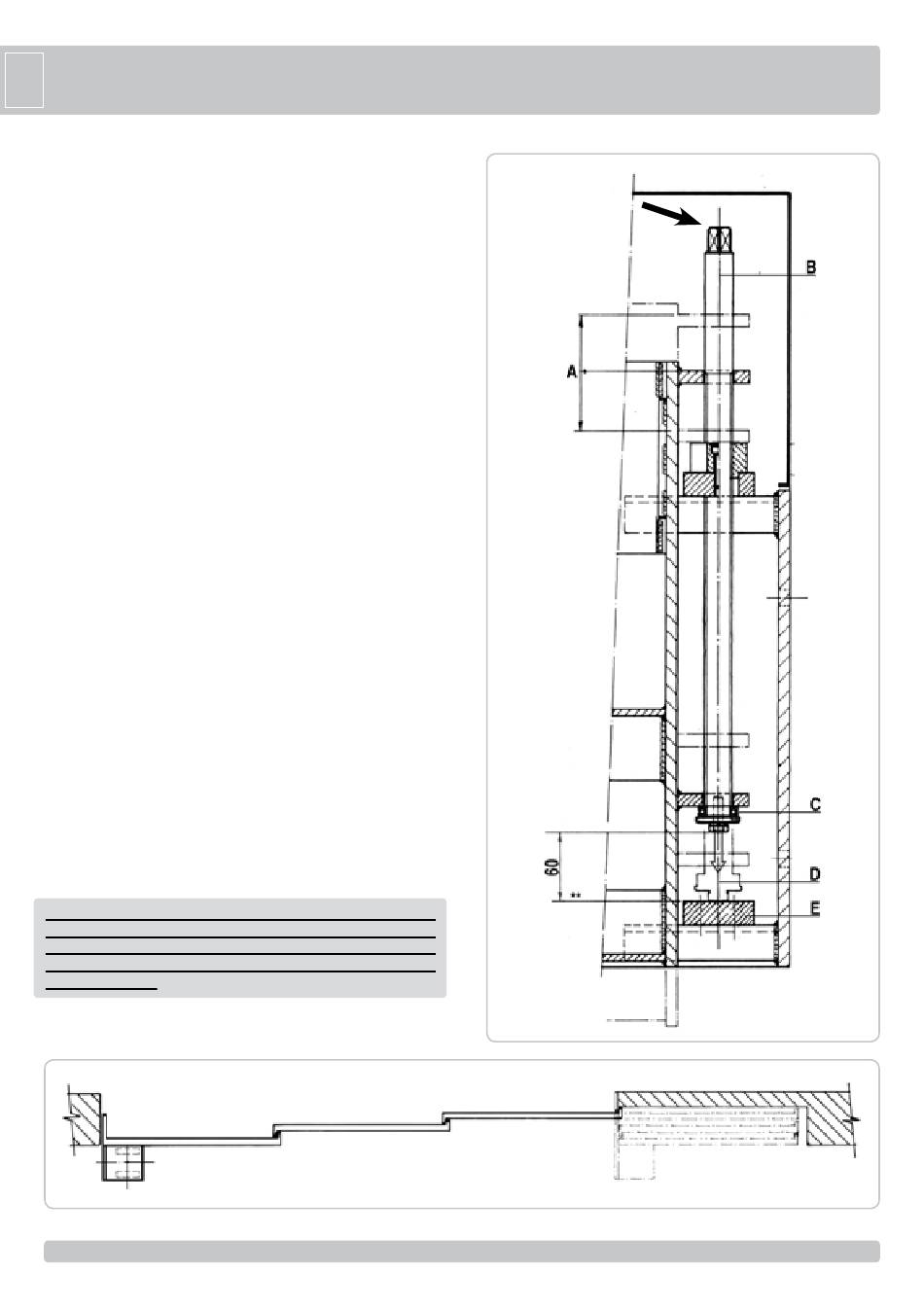

A: Maximum stroke 100 mm during movement (holes or uneven
ground)
B: Rod
C: Position of rod (B) during
installation
D: Position of rod (B) during
movement
E: Block
E
LECTRICAL SAFETY DEVICES
The installation must be installed according to the current regulations
and laws.
We recommend the use of a KS2/R2 control panel.
For connections and technical data of accessories refer to the
appropriate booklets.
R
60 APPLICATION ON MULTIPLE PANEL DOORS
In this case the R60 must be installed on the first leaf and will require
two wheels with tyres.
M
AINTENANCE
To be undertaken by specialized staff after disconnecting power
supply.
Clean the wheel contact surfaces carefully once a week.
Check wheel/ground pressure, V-belt tension, oil level and condition of
motor every six months.
The motor should be overhauled every two years and the oil and V-belts
replaced.
ALWAYS USE AN OPEN/CLOSE PUSH BUTTON WHICH
IS DESIGNED TO PREVENT THE POSSIBILITY OF
SIMULTANEOUSLY SENDING THE OPPOSITE COMMAND
OF OPENING AND CLOSING AND AVOID SO A DAMAGE
TO THE MOTOR.
