R60 INSTALLATION
P
RE-INSTALLATION CHECKS
The leaf must be fixed firmily on the hinges to the pillars, must not be
flexible during the movement and must move without frictions.
The ground on which the R60 wheel runs must be solid and compact
with minimum gradient.
Gate features must be uniformed with the standards and laws in
force. The door/gate can be automated only if it is in a good condition
and its conditions comply with the EN 12604 norm.
- The door/gate leaf does not have to have a pedestrian opening. In
the opposite case it is necessary to take the appropriate steps, in
accordance with EN 12453 norm (for instance; by preventing the
operation of the motor when the pedestrian opening is opened, by
installing a safety microswitch connected with the control panel).
- No mechanical stop shall be on top of the gate, since mechanical
stops are not safe enough.
R
60 INSTALLATION

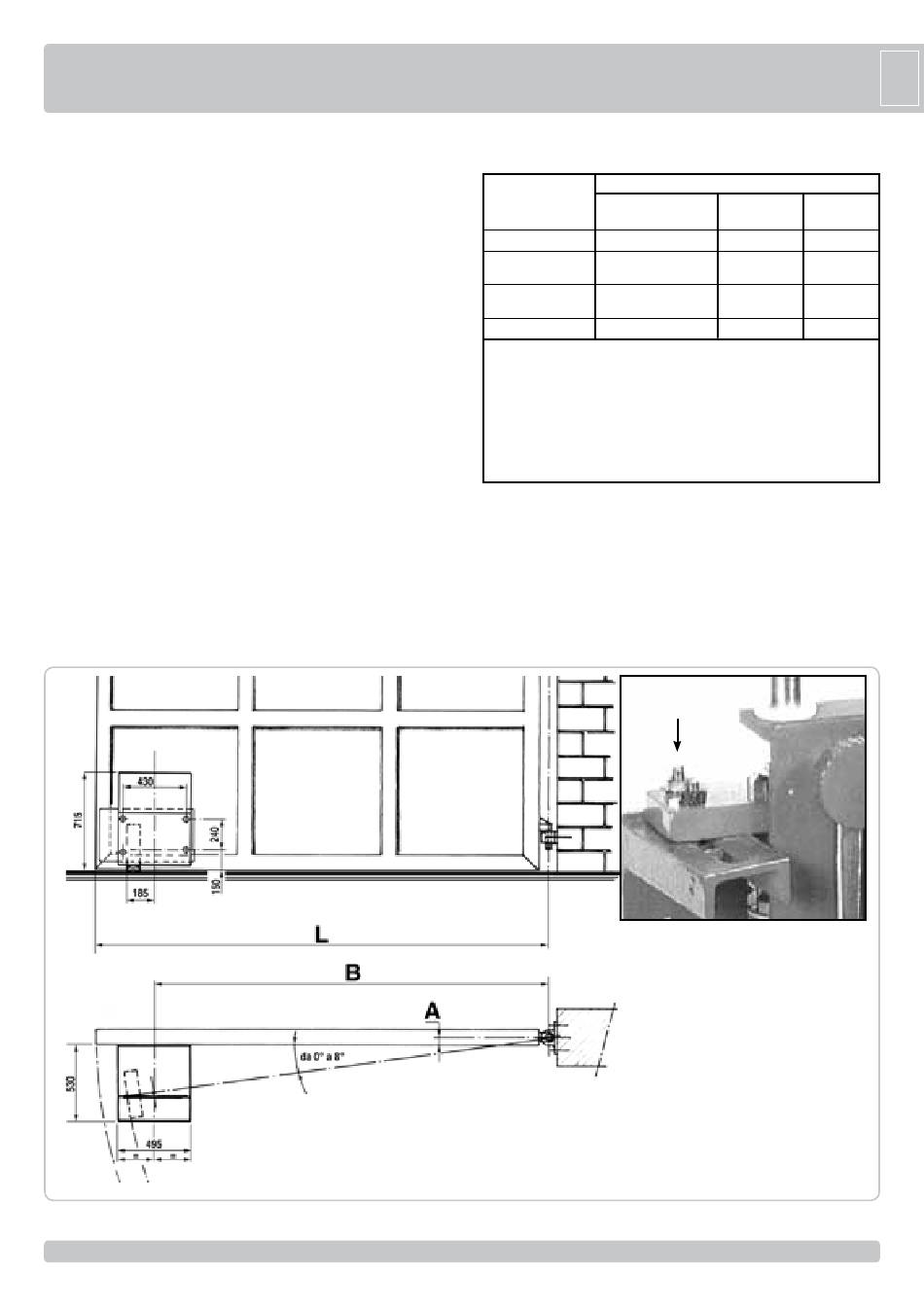

The ground must be solid and even, at least over the wheel travel area.
Fix the gearmotor base plate onto the corner of the leaf so that the
wheel touches the ground.
Fix base plate by drilling four ø 10 mm holes.
Thread holes with a M12 tap, fit 4 screws and tighten with a no. 19
wrench (pic. 3).
Using the ratchet spanner provided, slide the rod down to the block.
Parts to install meeting the EN 12453 standard
COMMAND TYPE
(out of public area*)
with manned operation
with visible impulses
(e.g. sensor)
with not visible impulses
(e.g. remote controldevice)
automatic
* a typical example are those shutters which do not have access to any public way
A: C ommand button with manned operation (that is, operating as long as activated),
like code ACG2013
B: Key selector with manned operation, like code ACG1010
C: Adjustable power of the motor
D: S afety stripsand/or other safety devices to keep thrust force within the limits of
EN12453 regulation - Appendix A.
E: P hotocells, like code ACG8026 (To apply every 60÷70 cm for all the height of the
column of the gate up to a maximum of 2,5 m - EN 12445 point 7.3.2.1)
If the wheel slips on the ground, adjust the ring nut for the springs by
turning it clockwise to increase wheel/ground pressure.
To avoid excessive wheel wear during movement loosen the nuts (D)
with a no. 13 spanner and angle the wheel so that its axis is aligned with
the pivot of the door hinge.
Wheel angle may vary from 0˚ to 8˚.
B min = (0,31+A) / 0,14 [m]
B = 0,81 x L [m]
Opening time = 7,77 x L [sec]
15
15
USE OF THE SHUTTER
Skilled persons Skilled persons
(public area)
A B
C or E C or E
C or E C and D, or E
C and D, or E C and D, or E
D
G
B
Unrestricted use
non possibile
C and D, or E
C and D, or E
C and D, or E
