ENGLISH
3. Connecting the CADSLR4(B)+ to your ADSL Line
Most ADSL Providers require a filter between your Phone Line and the CADSLR4(B)+ that
prevents the ADSL line from interfering with regular telephone services. The two basic
styles of filters are described below.
Note: The CADSLR4(B)+ is not delivered with a filter for the ADSL connection. Please
contact your Telephone or Internet Provider for the correct ADSL Filter.
3.1 In-Line Filter – ADSL MicroFilter
In line filters are used for each telephone or telephone device (answering machines,
faxes etc.) that shares the line with the ADSL service. These filters are attached to the
telephone cable between the telephone and wall jack. The filters will separate the

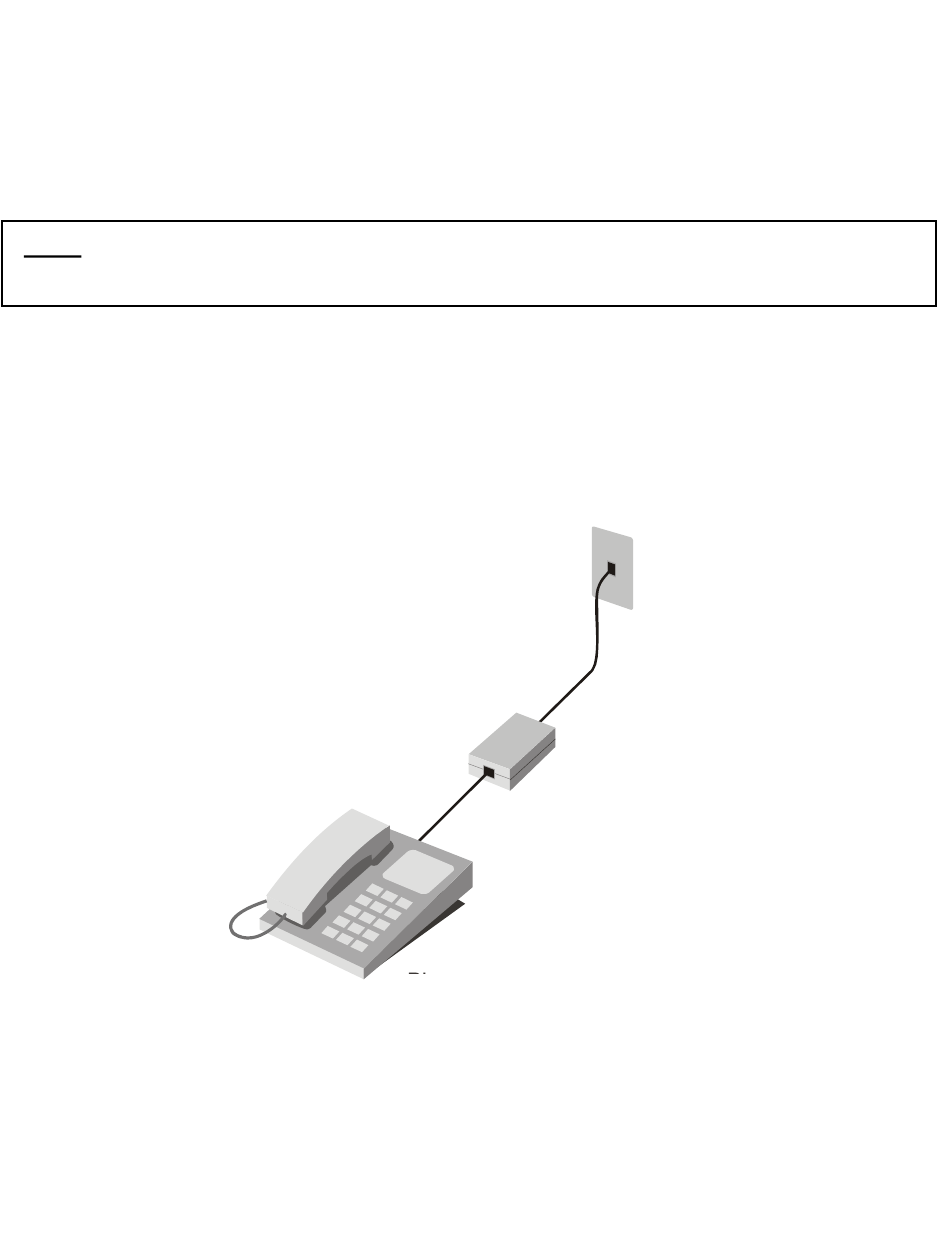

normal telephone service from the ADSL service. A typical in-line filter installation is
shown in the diagram below.
Phone
In-line filter – ADSL Microfilter
21
Phone
Jack
ADSL
Microfilter
