ENGLISH

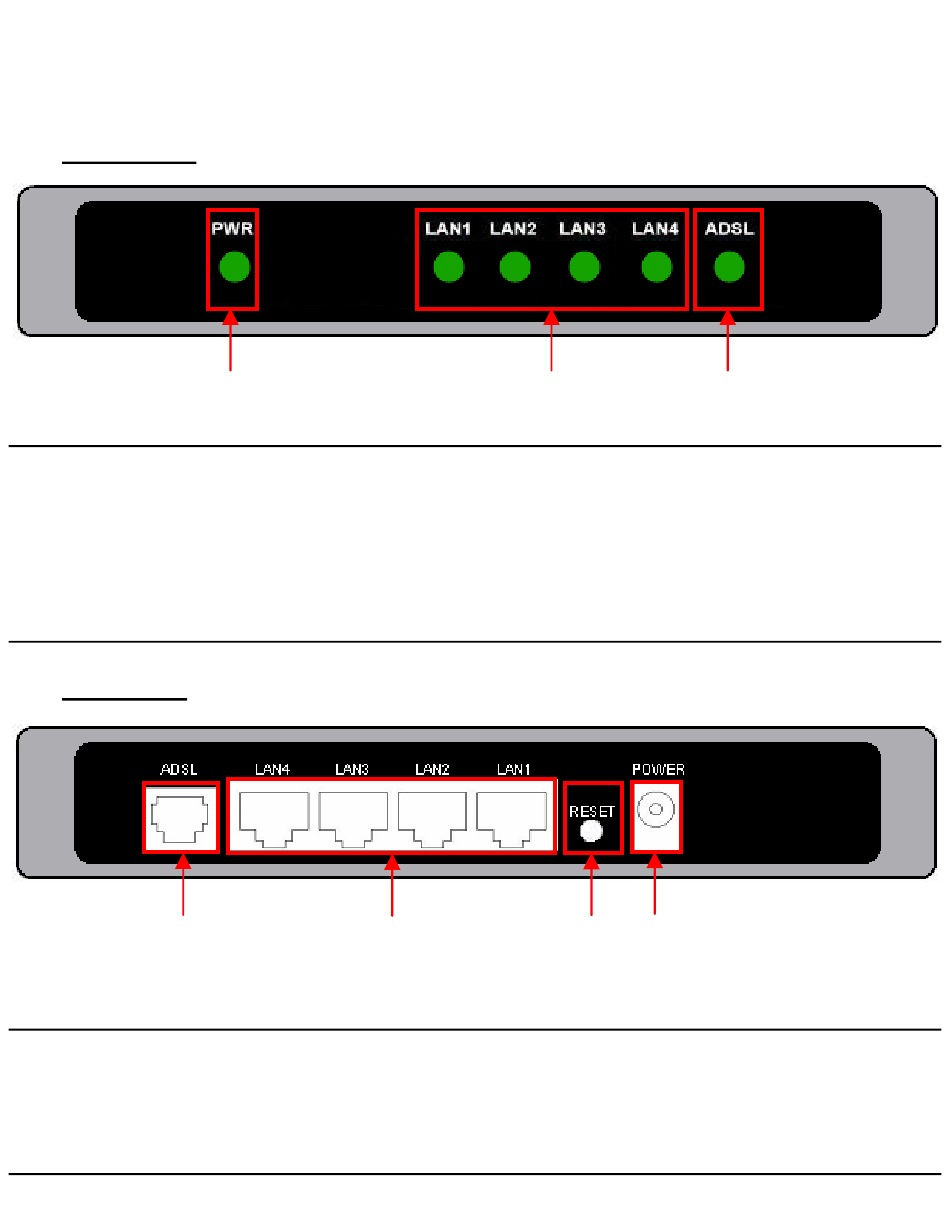

2. The ADSL2+ Router & Modem Explained
• Front Panel
Nr Description
1 Power LED
2 LAN LED's
(1,2,3,4)
3 ADSL LED
• Back Panel
1
Nr Description
1 ADSL Connection
2 LAN Ports
3 Reset Button
4 Power Connection
1
Status
ON
OFF
ON
OFF
Flashing
ON
OFF
2
2
Status Explanation
Device is turned on
Device is turned off
A Network Link is created on the LAN Port
No Network Link is created to the LAN Port
Data is send or received through the LAN Port
An ADSL Connection is created
No ADSL Connection is created
3
Explanation
Connect your ADSL Line to the device
Connect your Computer(s) to the device
Reset the device to the Factory Default Settings
(Press and Hold for +/- 10 seconds)
Connect the Power Supply to the device
