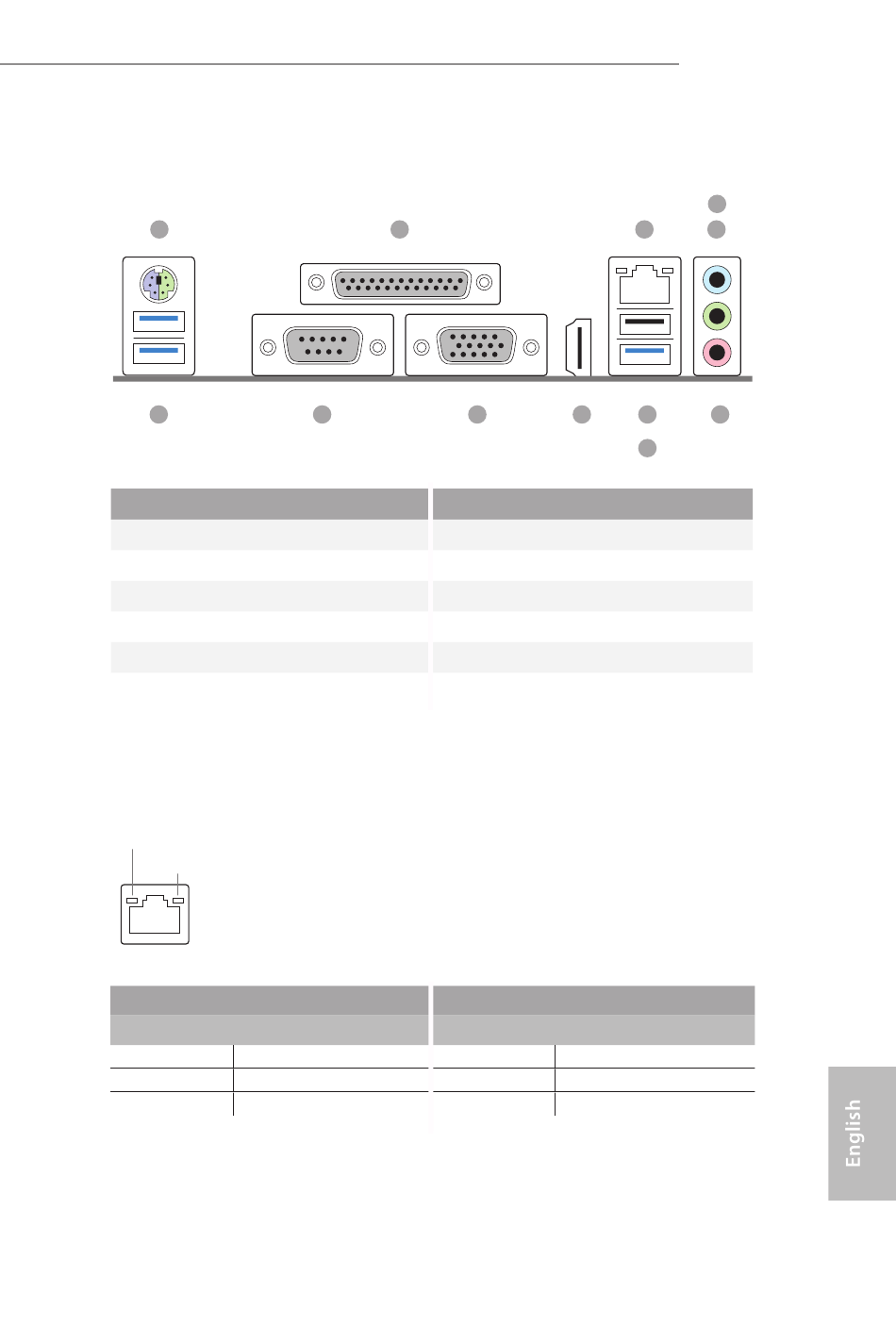

I/O Panel
1
12
No. Description
1 PS/2 Mouse/Keyboard Port
2 Parallel Port
3 LAN RJ-45 Port*
4 Line In (Light Blue)**
5 Front Speaker (Lime)**
6 Microphone (Pink)**
* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status Description
Off No Link
Blinking Data Activity
On Link
2
11 10
No. Description
7 USB 2.0 Port (USB3_3)
8 USB 3.1 Gen1 Port (USB3_4)
9 HDMI Port
10 D-Sub Port
11 COM Port
12 USB 3.1 Gen1 Ports (USB3_1_2)
Speed LED
Status
Off
Orange
Green
J4105B-ITX
J4005B-ITX
4
3 5
9 7 6
8
Description
10Mbps connection
100Mbps connection
1Gbps connection
3
