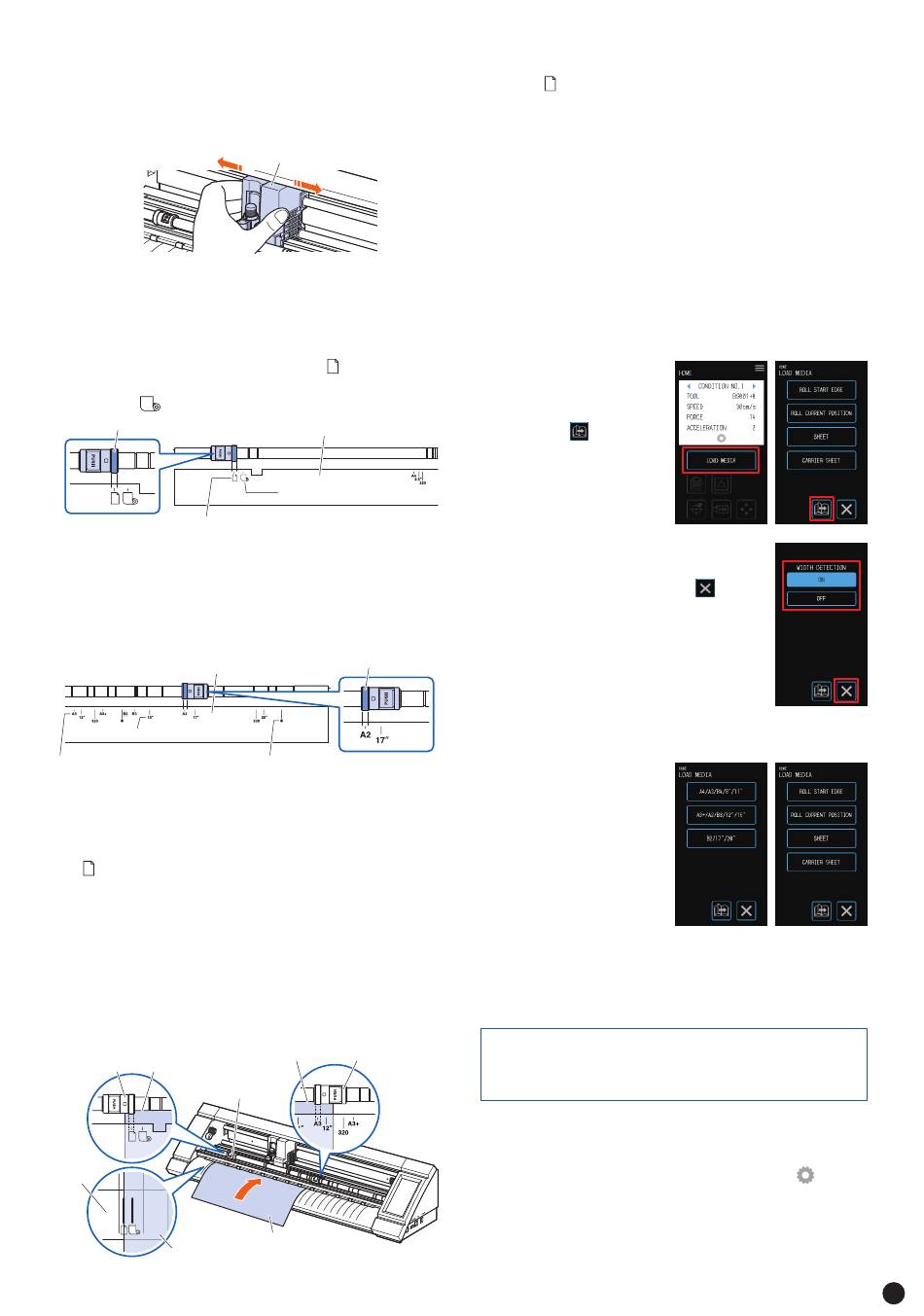

If the tool carriage obstructs the setting the push rollers,
release the left and right media set levers and slowly move
the tool carriage away. Gently hold the tool carriage from
both sides. Holding this at a different position or forcefully
moving it may cause damage.
Push Roller Setting Positions
Left Side Push Roller Setting Positions
Align the "media pressing portion" of the push roller with the
position of the push roller positioning guide to set the push
roller in place. Align the push roller to the "
using the sheet media or the carrier sheet. Align the push
roller to the " " position when using the roll media.
Media Pressing Portion
Sheet Media/Carrier Sheet
Right Side Push Roller Setting Positions
Set the "Media pressing portion" of the push roller according
to the width of media. Align the media pressing portion with
the markings on the top row for standardized sizes (mm), the
middle row for standardized sizes (inch), and the bottom row
for non-standardized sizes or the carrier sheet.
Push Roller Positioning Guide
Standardized Sizes (inch)
Standardized Sizes (mm)
Loading Sheet Media
1
. Raise the media set levers and release the push rollers.
2
. Set the push roller on the left side at the position of the
" " mark. Set the push roller on the right side according
to the width of the sheet media.
3
. Lower the media set levers on both sides to lock the push
rollers.
4
. On the "HOME" screen, touch the "LOAD MEDIA" − "SHEET".
5
. Evenly position the edge of the sheet media up against
the push rollers. Pass the sheet media under the push
roller positioning guide and load it so that it is parallel with
the front guide.
Push Roller Edge of Sheet Media
Push Roller
Front Guide
Sheet Media
Set to be parallel
Tool carriage
" position when
Push Roller Positioning Guide
Roll Media
Media Pressing Portion
Non-standardized sizes/Carrier Sheet
Edge of Sheet Media Push Roller
Sheet Media
6
. Align the left edge of the sheet media with the " I " marking
of the " " mark on the front guide.
7
. The width, front edge, and rear edge of the media are
scanned and the sheet media is loaded. If an error is
displayed, operate the device by following the on-screen
instructions.
Setting the Media Width Detection
Depending on the type of media (especially with high
transparency), the media cannot be set correctly because of
the detection error for the leading edge/ width/ position of the
media. In such a case, use a carrier sheet or disable media
width detection according to the following procedures.
Remove the media before setting the media width detection.
It cannot be set correctly when media is loaded.
1
. Touch the "LOAD MEDIA"
on the "HOME" screen.
2
.
Touch the " (Page)" to
display the "WIDTH
DETECTION" screen.
3
. Select "OFF" to disable the media width
detection. Select "ON" to enable the
media width detection. Touch "
when the setting is completed.
4
. Depending on the setting, the display on the "LOAD
MEDIA" screen on the "HOME" screen will change.
•
When set to "OFF," select
the size of the media.
The media size is treated
as roll media of "A3" if
"A4/A3/B4/8"/11"" is
selected.
The media size is treated
as roll media of "A2" if
"A3+/A2/B3/12"/15"" is
selected.
The media size is treated
as roll media of "20"" if "B2/17"/20"" is selected.
•
When set to "ON", select the shape of the media.
When setting it to "OFF," do not cut the data exceeding
CAUTION
the set media size. The device cuts the outside of the
media, so that the cutter pen and the cutting mat may be
damaged.
Confirming the CONDITION NO.
(Cutting Condition)
Confirm/set the cutting conditions by touching the
CONDITION on the "HOME" screen. For the details, please
refer to the User's Manual 5.1.
(Exit)"
When "OFF" is When "ON" is
selected selected
