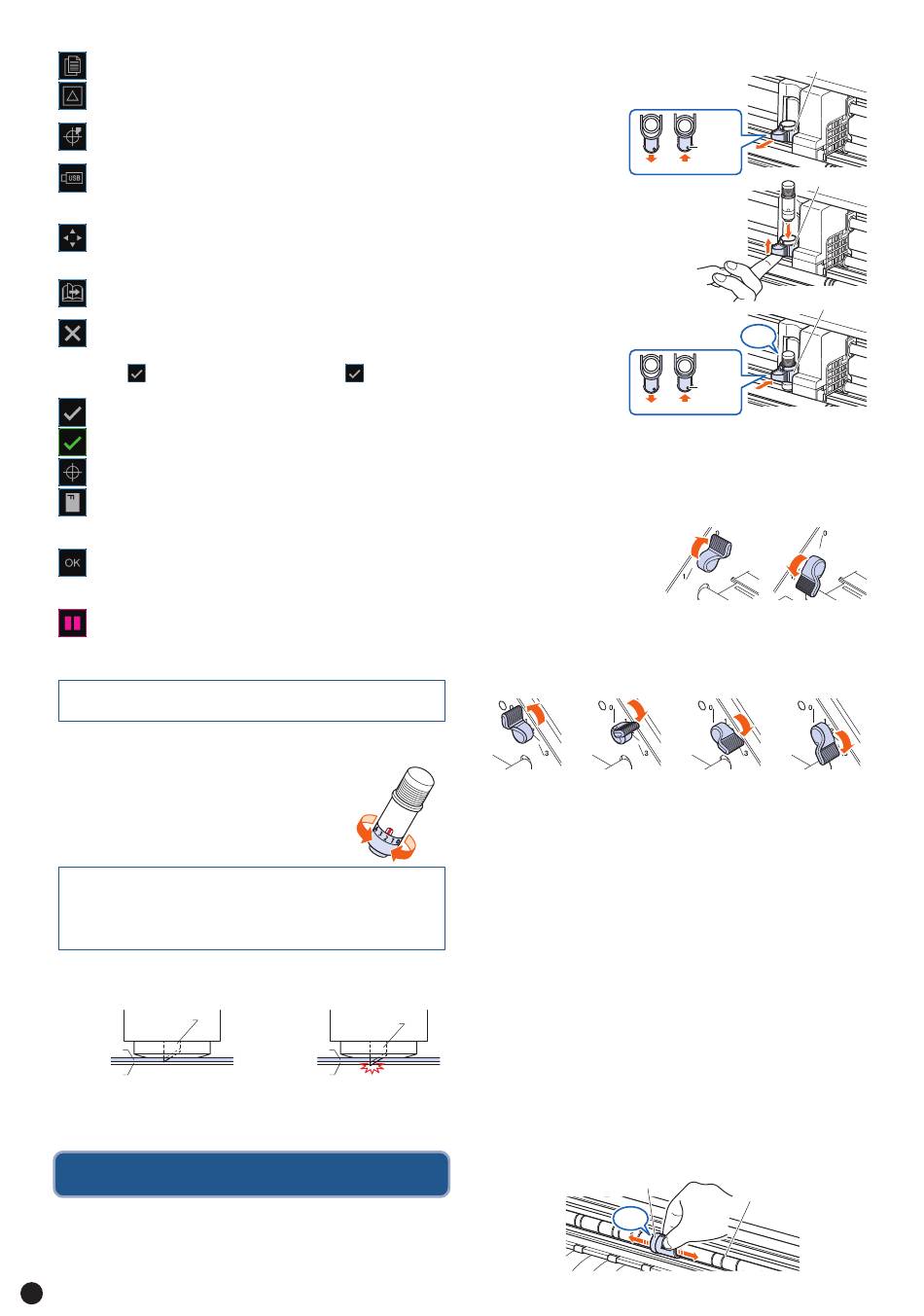

GRAPHTEC CE LITE-50 Installationshandbuch Seite 4

"COPY" button: Used to transition to the copy mode.
"CUT TEST" button:
Used to transition to the cut test screen.
"HOME" button:
Used to move the tool carriage to the home point.
"USB" button:
Used to transition to the menu for cutting from a USB
memory.
Position key: Used to transition to the position key screen.
Other Buttons
"Page" button:
Used to transition to the next page on the same tier level.
"Exit" button:
Used to exit the current screen. When touched before
the (Confirm) in a screen where the
displayed, the screen is exited without setting the item.
"Confirm" button: Used to confirm settings.
"Execute" button: Used to execute settings.
"Origin" button: Used to configure the plot origin.
"Cutting Area" button:
Used to display th cutting area of the media that has
been loaded.
"OK" button:
Used to confirm the position of the tool moved with
the position keys.
"Stop" button: Stops the cutting operation.
Preparation of Cutter Pen
Be careful when handling the cutter blade to avoid cutting
CAUTION
your hands, etc.
The blade depth is adjusted by turning the tip of the cutter pen.
Align the number with the red line to adjust the blade depth.
Aligning a larger number to the line will
increase the blade depth. The blade depth is
changed in approximately 0.1 mm for each
number. The blade depth is able to adjust to a
maximum of approximately 1 mm.
Do not turn the cap clockwise (towards 10) from the state
CAUTION
where the blade tip is not protruding (at 0). Similarly, do
not turn the cap further counter-clockwise (towards 0)
past the state where the blade tip is protruding by 1 mm
(at 10). Doing either of these may damage the cutter pen.
Reference and Precautions regarding Blade Depth
Adjustment
Good
Cutter Blade
Vinyl Sheet
Backing
Adjust the blade depth so as not to penetrate the backing.
Be sure to use a Carrier Sheet when die-cutting.
OPERATION MANUAL
This section describes the procedures of cutting the sheet
media. For the details of the operation, please refer to the
Instruction Manual.
2
(Confirm) is
No Good
Cutter Blade
Vinyl Sheet
Backing
Setting the Cutter pen
1
. Pull the locking lever to open the
lock.
Unlock
2
. Insert the cutter pen to the tool
holder while holding it.
3
. Push the locking lever until it clicks
to hold the cutter pen. Confirm the
locking indicator
became the white.
Unlock
Setting the Media Set Levers
For the details of the operation, please refer to the Instruction
Manual.
Setting the Media Set Lever - Left
Set the media set lever -
Release
left to the lock position to
hold the media with the left
side push roller.
Setting the Media Set Lever - Right
There are three lock positions for the media set lever - right.
The lock position depends on the width of media. Set the
media set lever (1,2,3) - right to the correct position.
Lock 1
Release
Media Width and Lock Position
Lock 1: A4 / 8.5" / 220mm / B4 / 11" / A3
Lock 2: 12" / 320mm / A3+ / CARRIER SHEET / B3 / 15" / A2
Lock 3: 17" / 500mm / 20"
Setting the Push Rollers
Adjust the positions of the left and right push rollers to suit
the width of the media. Set the push rollers positioned onto
both edges of the media.
Moving the Push Rollers
To move the push rollers, raise the media set levers and release
the push rollers. Squeeze the "PUSH" part with your fingers,
and then move the push roller left and right while pressing the
"PUSH" part. If the "PUSH" is in a position that is difficult to
press, rotate the roller so that it can easily be pressed.
When the push roller reaches to the desired position, release
the "PUSH" part and place it in the position where it "clicks"
into the positioning groove. After setting the push roller, move
slightly to the left and right without pressing the "PUSH" part
to check that it fits in the positioning groove.
Push Roller
Click
Locking Lever
Locking
indicator
Lock
Locking Lever
Locking Lever
Click
Locking
indicator
Lock
Lock
Lock 2
Positioning Groove
Lock 3
