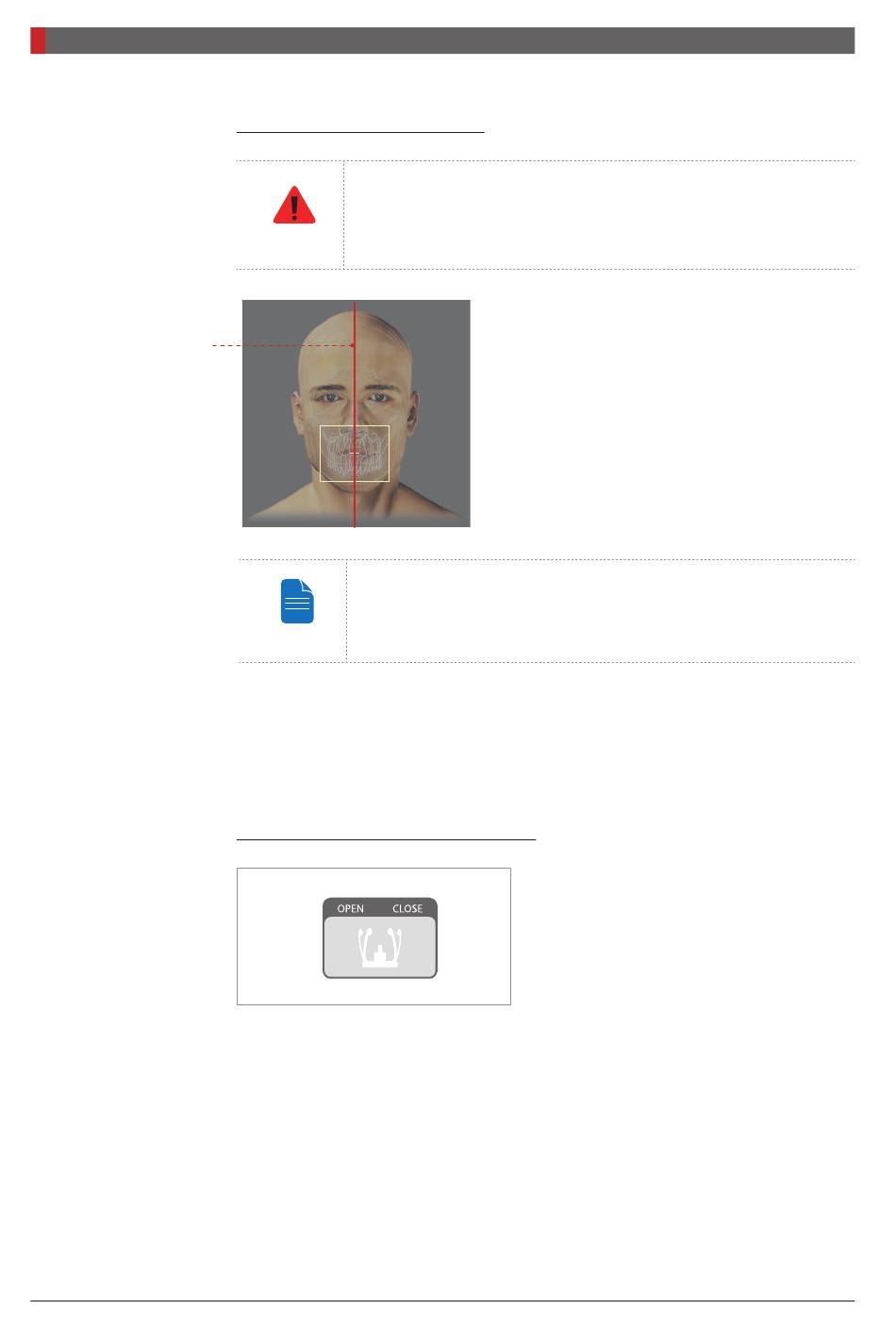

5 Acquiring CT Images
Mid-sagittal plane
laser beam
58
Aligning the Laser Beams
Be careful not to project the laser beams directly into the
patient's eyes as this could severely damage the patient's
WARNING
vision.
(FOV 100 X 85)
This is a sample illustration for reference only. Actual FOV
may vary from the image shown.
NOTE
Mid-sagittal plane laser beam: Position the Mid-sagittal plane laser beam at
the center of the FOV area.
Completing Patient Positioning
2. Click the Ready button after the patient has been properly positioned. No
X-Ray will be emitted at this point.
3. Proceed to the section 5.4 Initiating X-Ray Exposure.
1. After confirming patient positioning
and beam alignment, adjust the temple
supports to fit snugly on both sides of the
patient's head using the temple support
adjustment button.
PaX-i3D Smart(PHT-30LFO) User Manual
