4 Acquiring CEPH Images
4.2.5

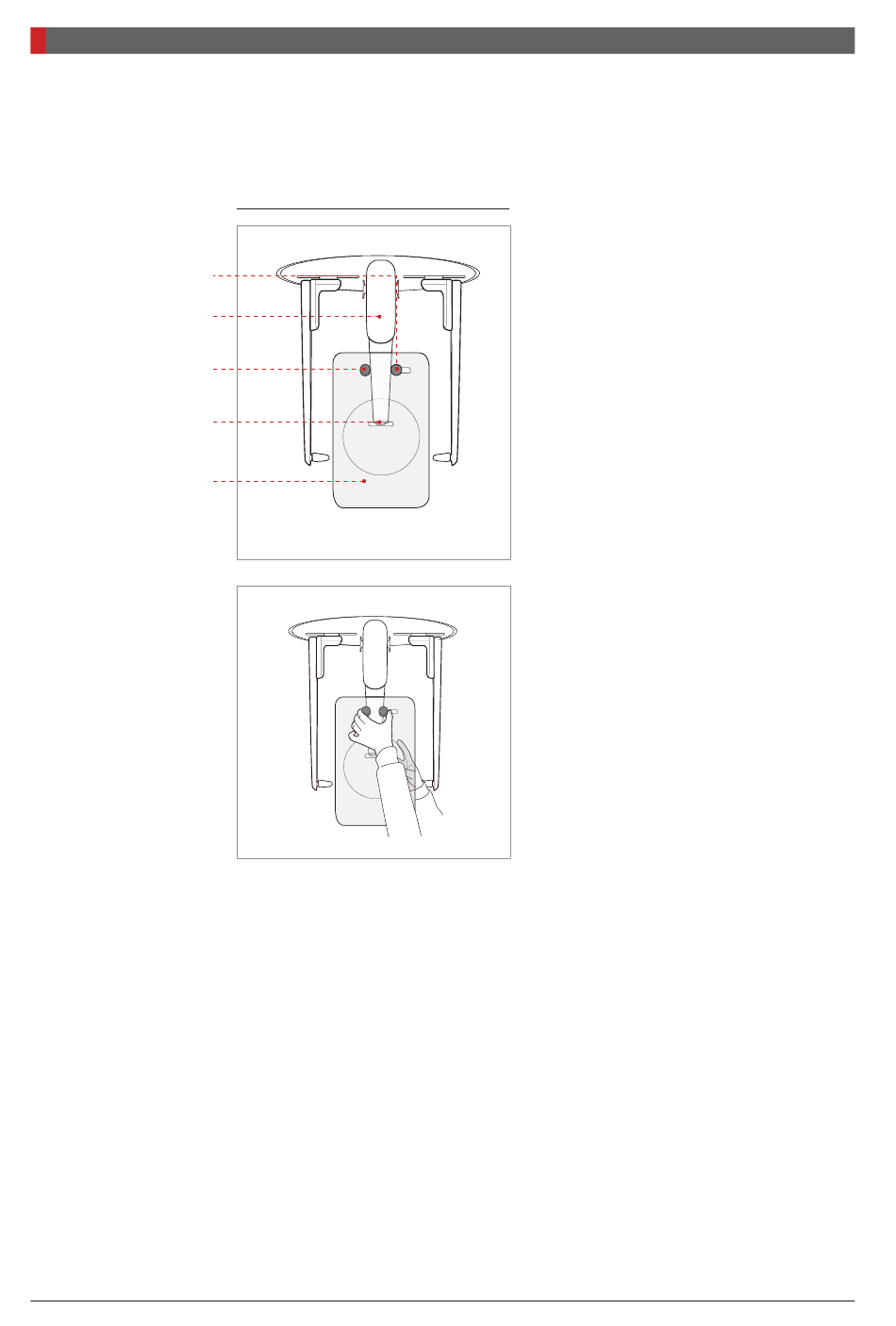

Locking bolt
Nasal positioner
Fixed bolt
Notch
CARPUS Plate
48
CARPUS
Attaching the CARPUS plate
1. Match the notch on the CARPUS plate
to the end of nasal positioner.
2. Slide the CARPUS plate onto the nasal
positioner.
3. Slide the locking bolt on the CARPUS
plate towards the nasal positioner and turn
it to secure the CARPUS plate in place.
4. Ensure that the CARPUS plate is firmly
in place.
PaX-i3D Smart(PHT-30LFO) User Manual
