PaX-i3D Smart(PHT-30LFO) User Manual
Lateral / Full Lateral

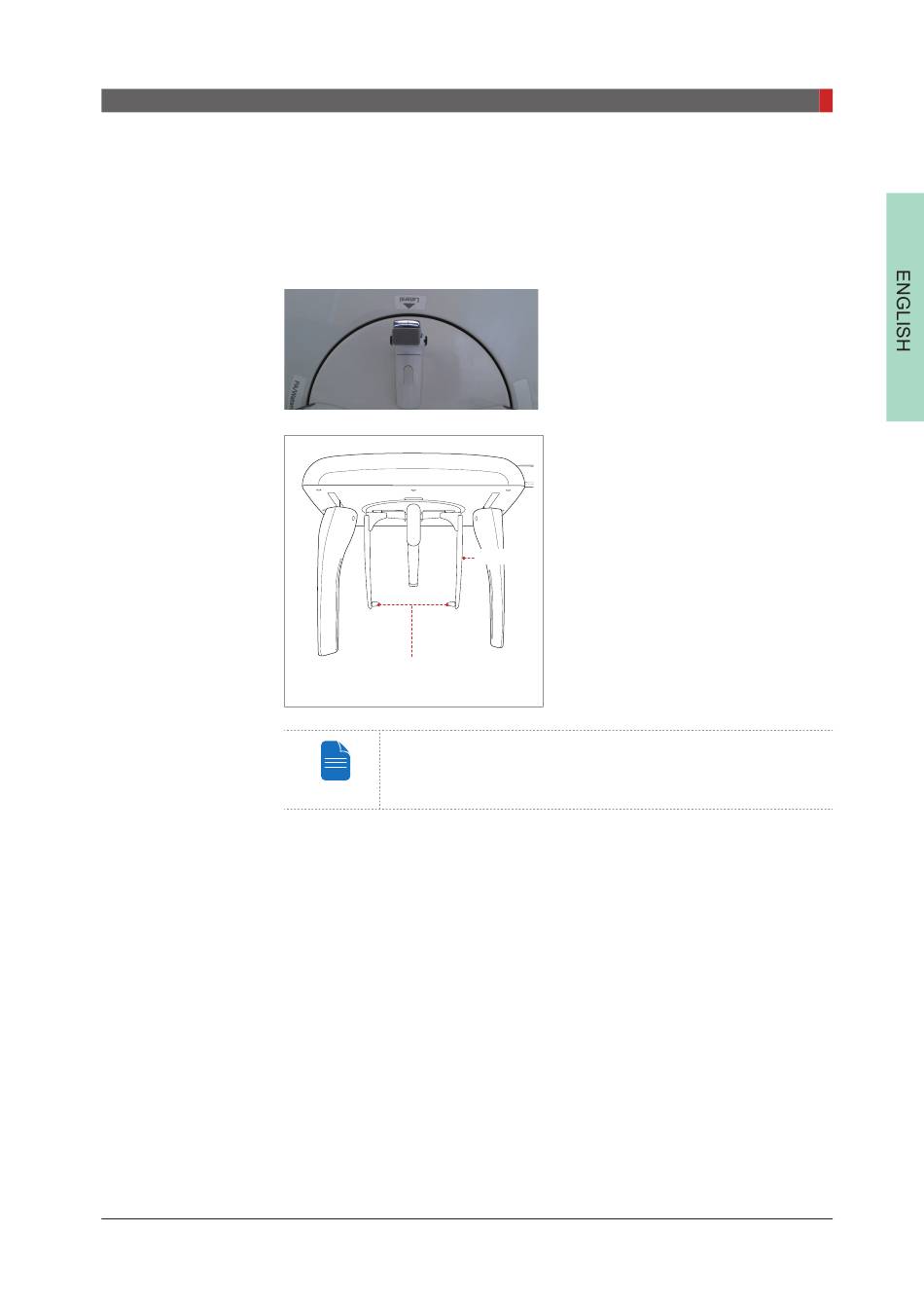

Follow the procedure below to position the patient.
1. Turn the CEPH ear rods to Lateral mode position as shown in the figure.
Porion position reference
indicator
Porion position reference indicator enables the operator to
easily identify the position of the porion on the image.
NOTE
3. Guide the patient to the CEPH unit.
4 Acquiring CEPH Images
2. Widen the distance between the two
ear rods.
Ear rod
