3M™ MicroTouch™ Display M1700SS User Guide

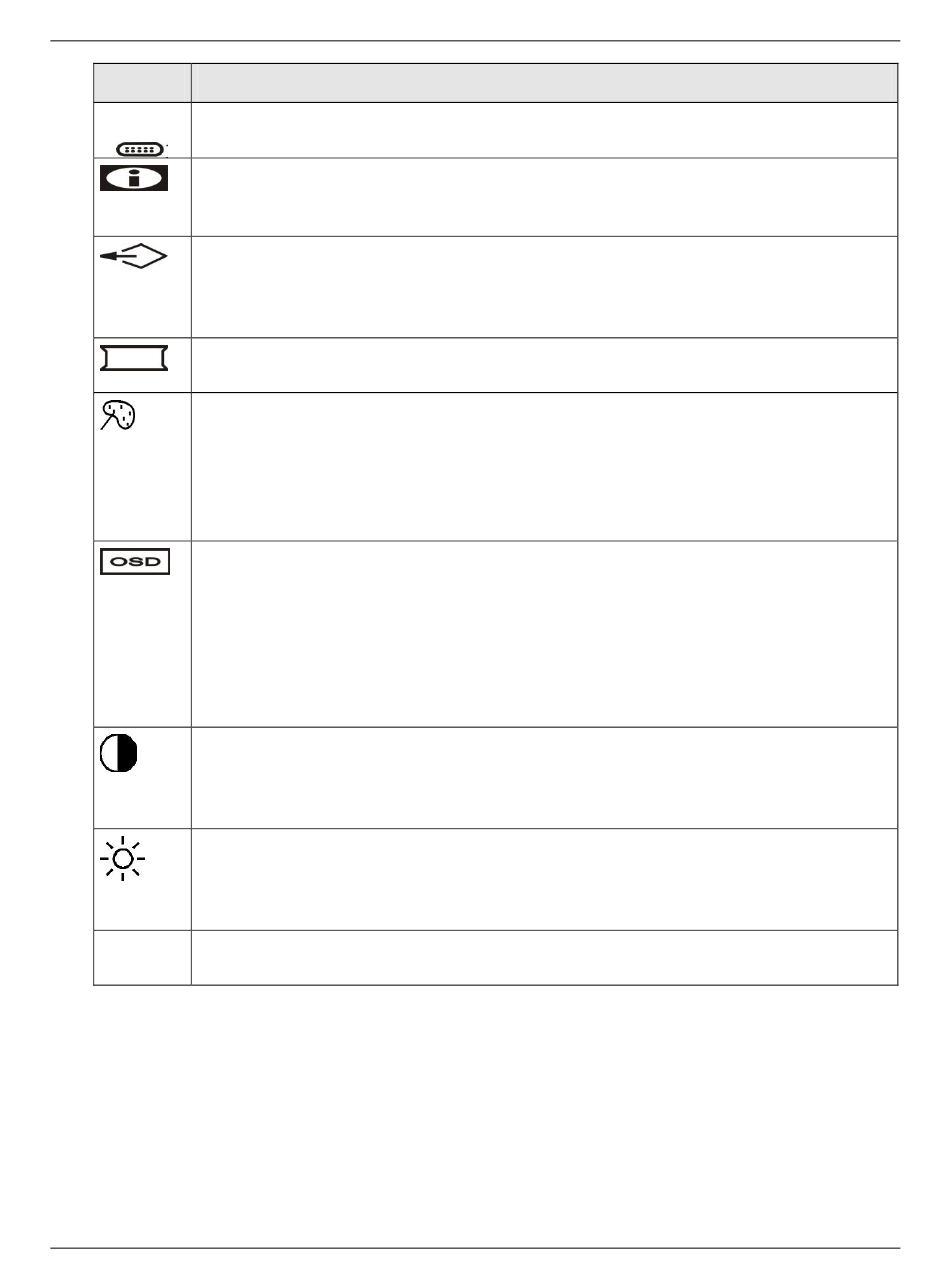

Icon Description
1:2
INPUT LEVEL
Selects the applicable input source analog input (D-sub), or digital input (DVI-D).
INFORMATION
Provides the user with detailed information regarding the current input format and
version.
RECALL
Resets the control functions back to the original factory preset values. In order for the
Recall function to work, the timing must fall under one of the factory preset timing
modes.
SHARPNESS
Adjusts the video quality to be sharp or blurry (special for text mode).
COLOR TEMPERATURE
Adjusts color temperature to PRESET 1 (9300 color temperature) or PRESET 2 (6500
color temperature). Or, for a custom color mode, select USER and push the select
button to activate the RGB submenu. Using the select button activate the Red (Red
Gain), Green (Green Gain) or Blue (Blue Gain) and change color strength for a
customized color mode.
OSD
Adjust the OSD image horizontally or vertically by pressing the Select button.
OSD BLENDING:
To adjust the brightness of the OSD MENU.
LANGUAGE
Selects a language among English, German, French, Spanish, Italian, Simplified
Chinese or Traditional Chinese.
CONTRAST
Selecting the Contrast option increases (▲) or decreases (▼) the strength (lightness or
dimness) of the image. Adjust the contrast using the ◄/left and ►/right arrow
buttons, and press SELECT to confirm the new setting.
BRIGHTNESS
Selecting the Brightness option will allow you to adjust the brightness of the display.
Adjust the brightness using the ◄/left and ►/right arrow buttons, and press SELECT
to confirm the new setting.
EXIT
EXIT
Exits the OSD menu and choose to save any settings (or not).
