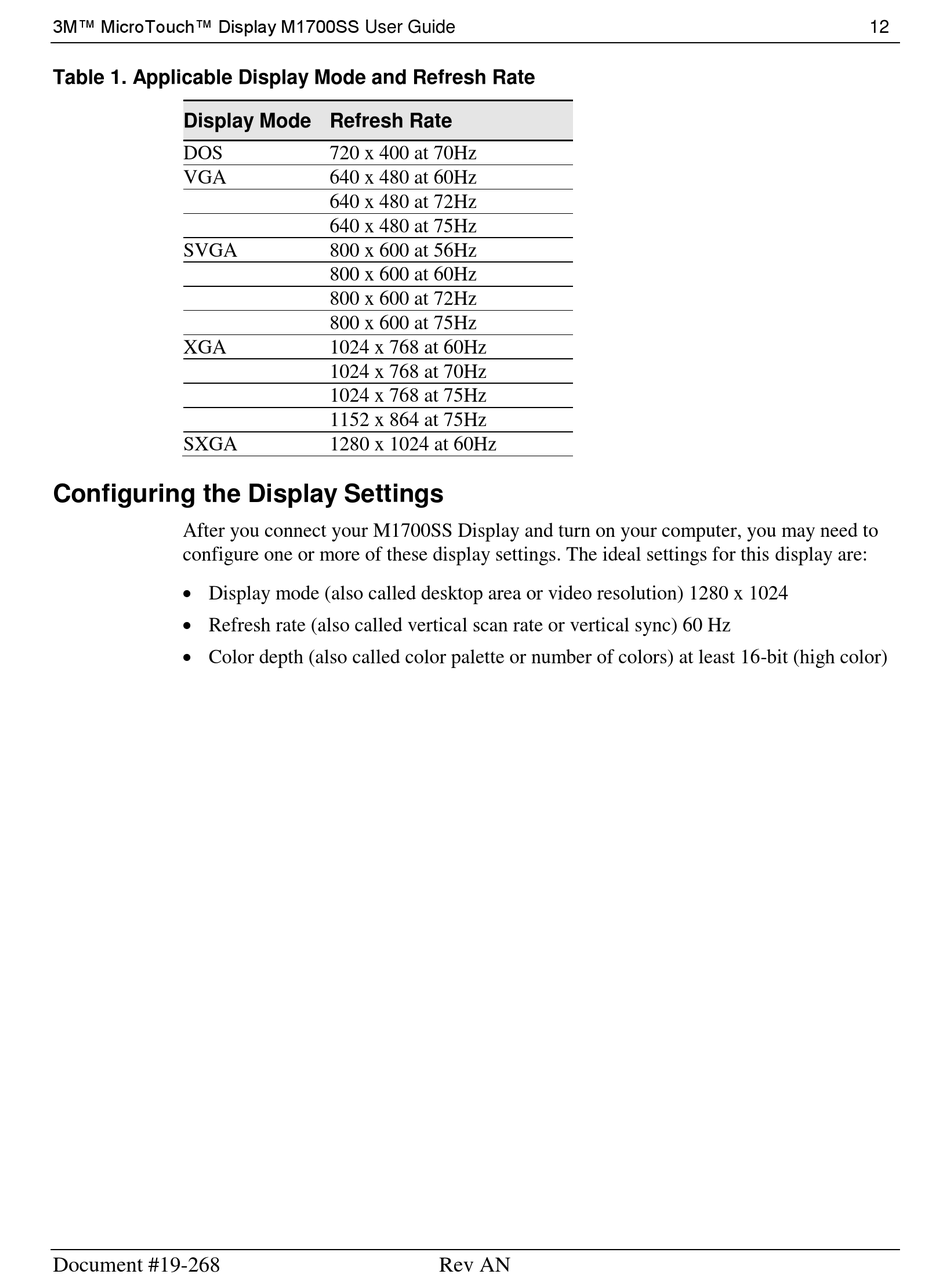

3M™ MicroTouch™ Display M1700SS User Guide
Table 1. Applicable Display Mode and Refresh Rate
Display Mode Refresh Rate
DOS
VGA
SVGA
XGA
SXGA

Configuring the Display Settings

After you connect your M1700SS Display and turn on your computer, you may need to
configure one or more of these display settings. The ideal settings for this display are:
 Display mode (also called desktop area or video resolution) 1280 x 1024
 Refresh rate (also called vertical scan rate or vertical sync) 60 Hz
 Color depth (also called color palette or number of colors) at least 16-bit (high color)
Document #19-268
720 x 400 at 70Hz
640 x 480 at 60Hz
640 x 480 at 72Hz
640 x 480 at 75Hz
800 x 600 at 56Hz
800 x 600 at 60Hz
800 x 600 at 72Hz
800 x 600 at 75Hz
1024 x 768 at 60Hz
1024 x 768 at 70Hz
1024 x 768 at 75Hz
1152 x 864 at 75Hz
1280 x 1024 at 60Hz
Rev AN
12
