Connecting a video device that has a LANC connector

You can connect the R-4's L connector to a video device that has a LANC connector, and make the R-4
operate in synchronization with the video device.
* The R-4 does not record or synchronize to time code. Also, the recording time on the video device and the recording
time on the R-4 may drift during long recordings.

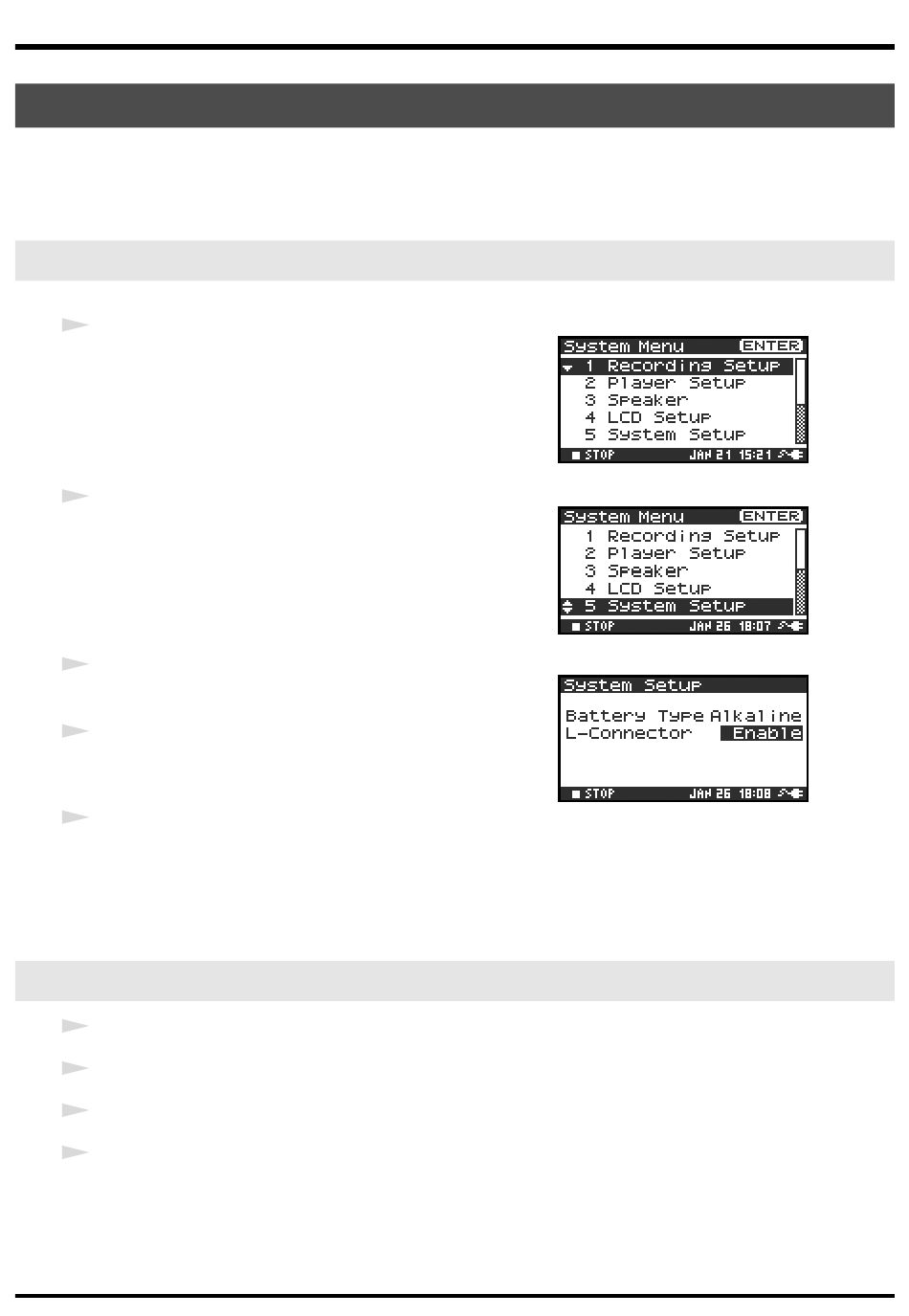

LANC connection settings
fig.recording-1.eps
1
Press the R-4's [SYSTEM] button.
The System Menu screen appears.
fig.system-1.eps
2
Use the [CURSOR] buttons to choose 5 System Setup, and
press the [ENTER] button.
fig.system-2.eps
3
The System Setup screen appears.
Use the [CURSOR] buttons to choose L-Connector.
4
Use the [SCRUB/VALUE] dial to select Enable.
The setting is applied when you select it. You don't need to press
the [ENTER] button.
5
Press the [EXIT] button.
You're returned to the System Menu screen. Press the [EXIT] button once again to return to the main
screen.
In this state, the R-4 will operate in synchronization with your video device. For details on settings and
operation for your video device, refer to the manual of your video device.
Using the LANC connection
1
Use the special cable to connect the LANC connector of your video device to the R-4's [L-CONNECTOR].
2
Power up your video device.
3
When your video device enters recording-standby mode, the R-4 will also enter recording-standby mode.
4
When you begin (or stop) recording on your video device, the R-4 will also begin (or stop) recording.
