Connecting an MD recorder or other digital recording device
(digital connection: digital output connector)
You can connect an MD recorder or other device that has a digital input connector, and use it to record the
sound played back by the R-4.

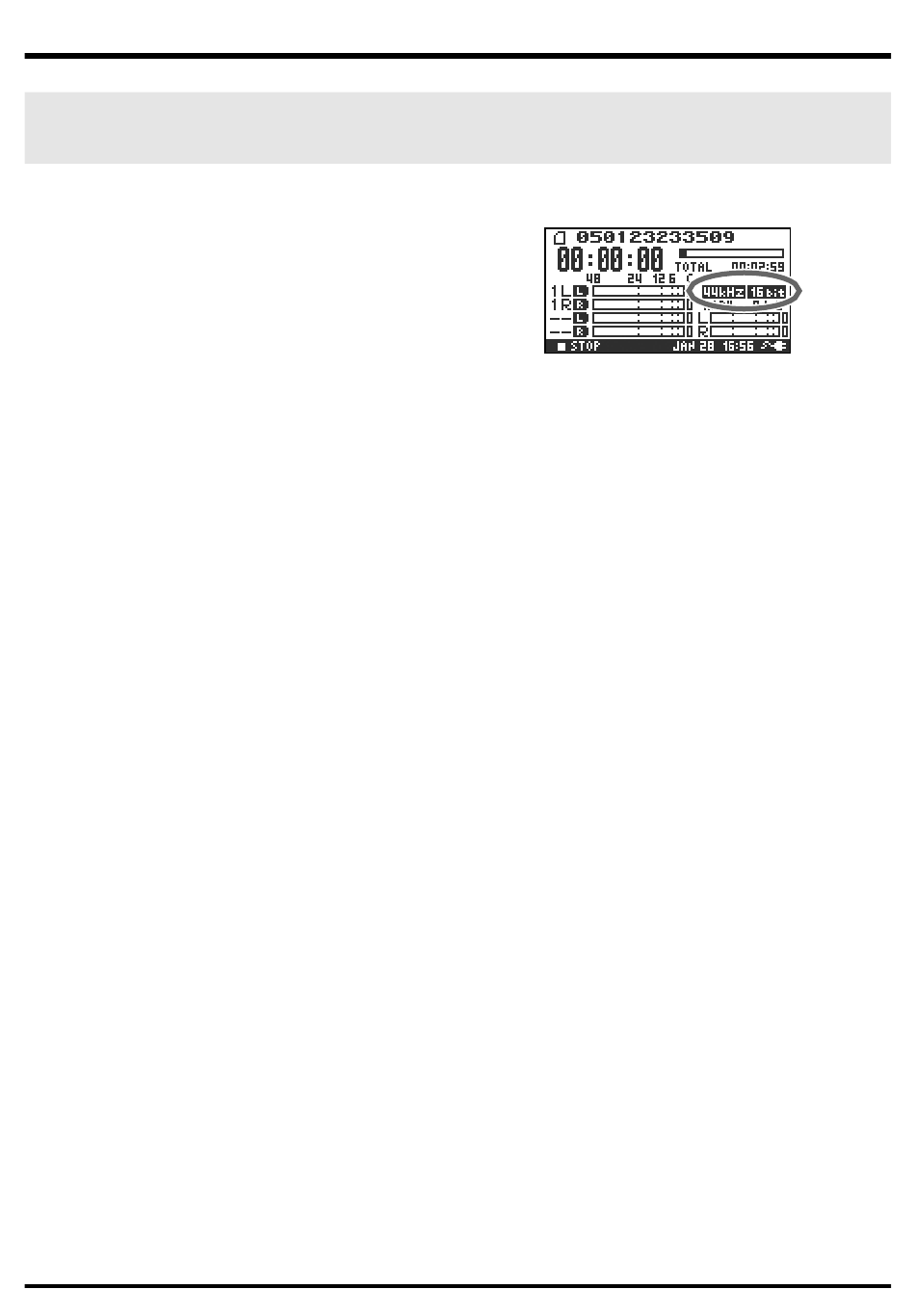

fig.basic-disp.eps
The sampling frequency of the project you're playing back will
be the sampling frequency of the audio that's output from the
digital output connector.
1.
Switch off the power on the R-4.
2.
Switch off your MD recorder.
3.
Connect the R-4's [DIGITAL OUT] jack to the digital input jack of your MD recorder.
* You'll need a separately available coaxial-type cable (not included) for connecting the R-4's digital output
jack to your digital device.
4.
Switch on the R-4's power.
5.
Next, switch on your MD recorder.
* The R-4 does not provide a way to adjust the volume of the digital audio signal.
