Recording analog audio

Here's how to record from an audio device connected to the R-4's combo input jacks.

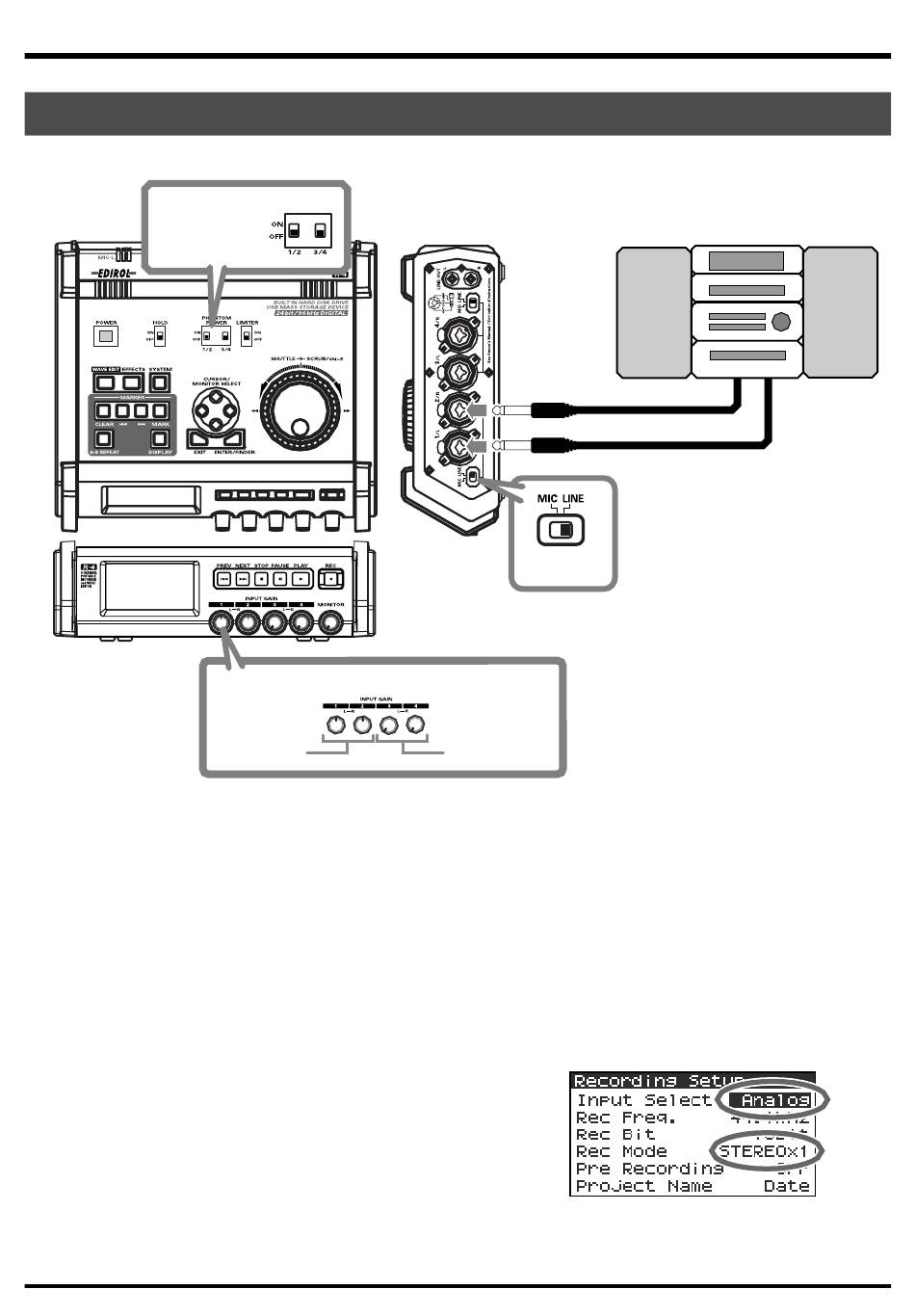

fig.LINE-1.eps
Phantom power
is not required,
so turn this OFF
● Connections
Connect your audio device to the combo input jacks.
You'll need to use phone-jack audio cables (sold separately).
* When connection cables with resistors are used, the volume level of equipment connected to the combo input jacks
may be low. If this happens, use connection cables that do not contain resistors, such as those from the Roland PCS
series.
● Input level select switch
Set to LINE.
● Phantom power switch
Turn this OFF.
fig.input-analog.eps
● System settings
Press the R-4's [SYSTEM] button.
In 1 Recording Setup, set Input Select to Analog.
Set the Rec Mode to STEREOx1.
Set the other items in 1 Recording Setup as appropriate for the
recording you want to make.
* For more about system settings, refer to "System settings" (p. 60).
32
Adjust the input level
Raise slowly
R
L
Set to LINE
Set to minimum
if not used
Audio playback system
(CD player, record player, etc.)
