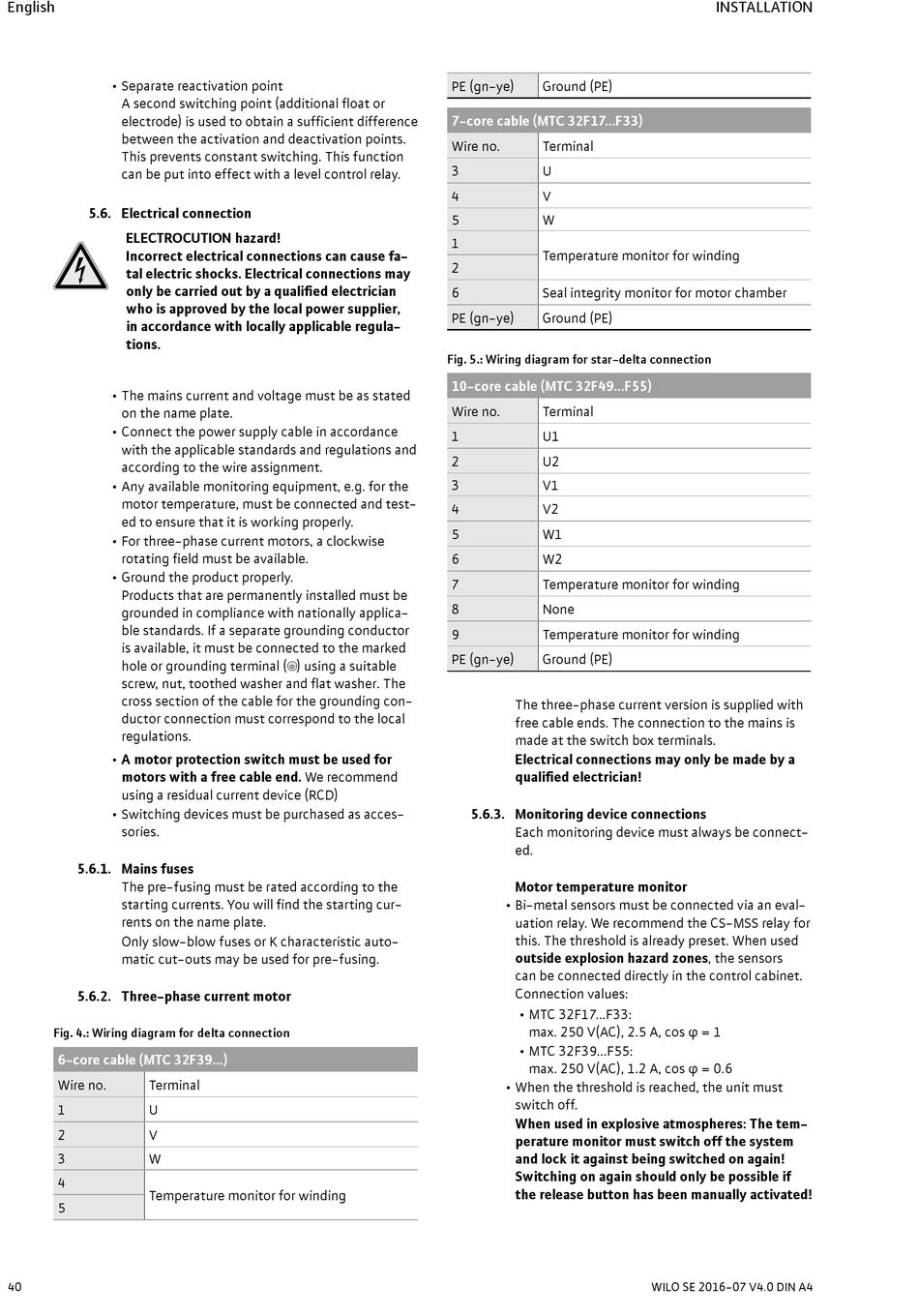

• Separate reactivation point
A second switching point (additional float or
electrode) is used to obtain a sufficient difference
between the activation and deactivation points.
This prevents constant switching. This function
can be put into effect with a level control relay.

5.6. Electrical connection

ELECTROCUTION hazard!
Incorrect electrical connections can cause fa-
tal electric shocks. Electrical connections may
only be carried out by a qualified electrician
who is approved by the local power supplier,
in accordance with locally applicable regula-
tions.
• The mains current and voltage must be as stated
on the name plate.
• Connect the power supply cable in accordance
with the applicable standards and regulations and
according to the wire assignment.
• Any available monitoring equipment, e.g. for the
motor temperature, must be connected and test-
ed to ensure that it is working properly.
• For three-phase current motors, a clockwise
rotating field must be available.
• Ground the product properly.
Products that are permanently installed must be
grounded in compliance with nationally applica-
ble standards. If a separate grounding conductor
is available, it must be connected to the marked
hole or grounding terminal (;) using a suitable
screw, nut, toothed washer and flat washer. The
cross section of the cable for the grounding con-
ductor connection must correspond to the local
regulations.
• A motor protection switch must be used for
motors with a free cable end. We recommend
using a residual current device (RCD)
• Switching devices must be purchased as acces-
sories.
5.6.1. Mains fuses
The pre-fusing must be rated according to the
starting currents. You will find the starting cur-
rents on the name plate.
Only slow-blow fuses or K characteristic auto-
matic cut-outs may be used for pre-fusing.
5.6.2. Three-phase current motor
Fig. 4.: Wiring diagram for delta connection
6-core cable (MTC 32F39...)
Wire no. Terminal
1 U
2 V
3 W
4
Temperature monitor for winding
5
40
PE (gn-ye) Ground (PE)
7-core cable (MTC 32F17...F33)
Wire no. Terminal
3 U
4 V
5 W
1
Temperature monitor for winding
2
6 Seal integrity monitor for motor chamber
PE (gn-ye) Ground (PE)
Fig. 5.: Wiring diagram for star-delta connection
10-core cable (MTC 32F49...F55)
Wire no. Terminal
1 U1
2 U2
3 V1
4 V2
5 W1
6 W2
7 Temperature monitor for winding
8 None
9 Temperature monitor for winding
PE (gn-ye) Ground (PE)
The three-phase current version is supplied with
free cable ends. The connection to the mains is
made at the switch box terminals.
Electrical connections may only be made by a
qualified electrician!
5.6.3. Monitoring device connections
Each monitoring device must always be connect-
ed.
Motor temperature monitor
• Bi-metal sensors must be connected via an eval-
uation relay. We recommend the CS-MSS relay for
this. The threshold is already preset. When used
outside explosion hazard zones, the sensors
can be connected directly in the control cabinet.
Connection values:
• MTC 32F17...F33:
max. 250 V(AC), 2.5 A, cos φ = 1
• MTC 32F39...F55:
max. 250 V(AC), 1.2 A, cos φ = 0.6
• When the threshold is reached, the unit must
switch off.
When used in explosive atmospheres: The tem-
perature monitor must switch off the system
and lock it against being switched on again!
Switching on again should only be possible if
the release button has been manually activated!
