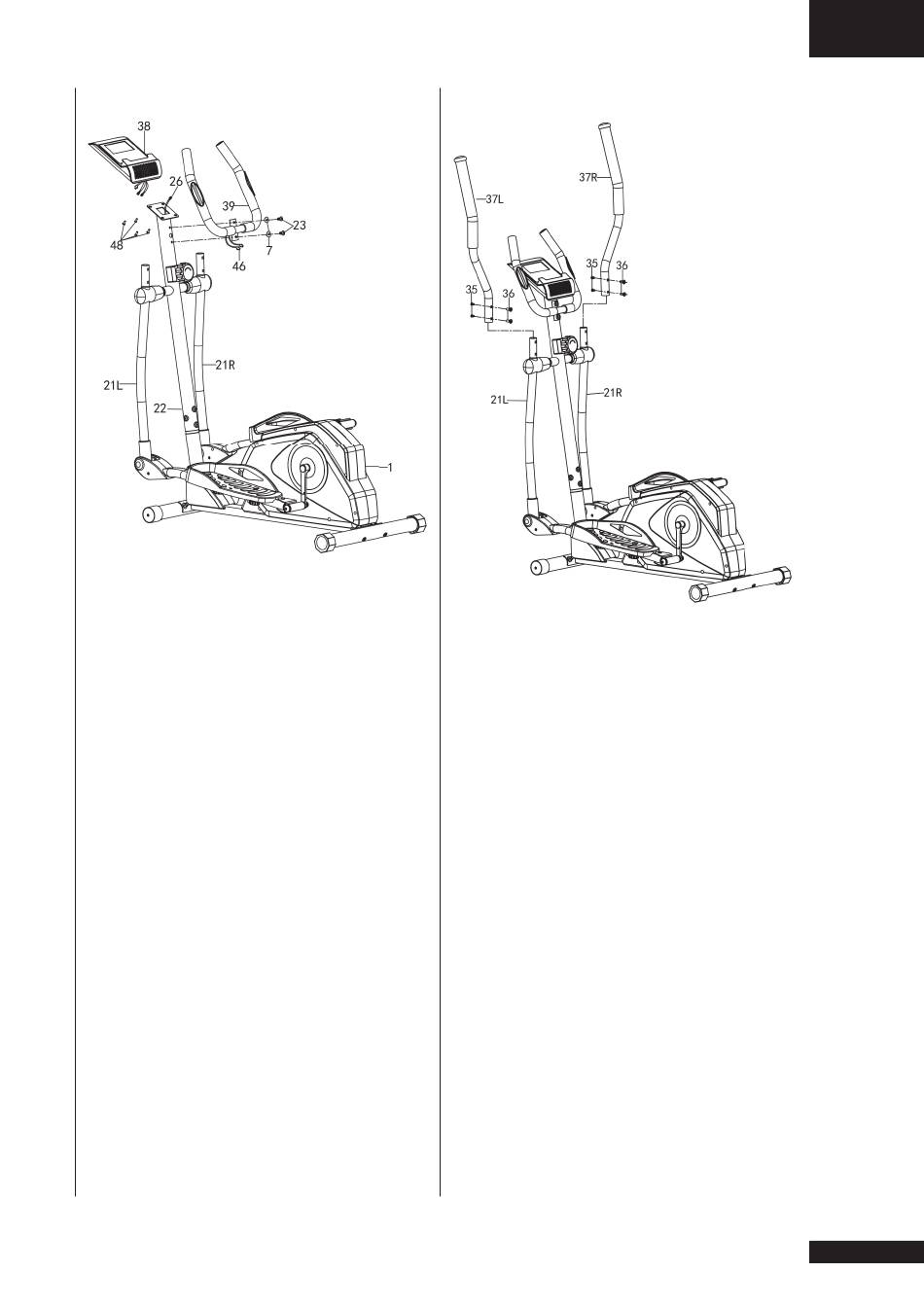

Assembly step 5
• Guide the hand pulse wires coming
from the fixed handlebar through the
console bracket hole.
• Fit fixed handlebar tubes as shown in
picture.
• Connect the hand pulse wires and
data cable with the console.
• Fix the console to the console
bracket.
Remark:
Avoid the wires to damage during
assembly
Remark:
• Avoid the wires to damage during
assembly
• First put all screws/ bolts in correct
place before tightening them fully.
User manual • Cardio Fit Cross C30
Assembly step 6
• Fix upper moving handle bars as
shown in picture.
Remark:
First put all screws/ bolts in correct place
before tightening them fully.
