3 x Assembly

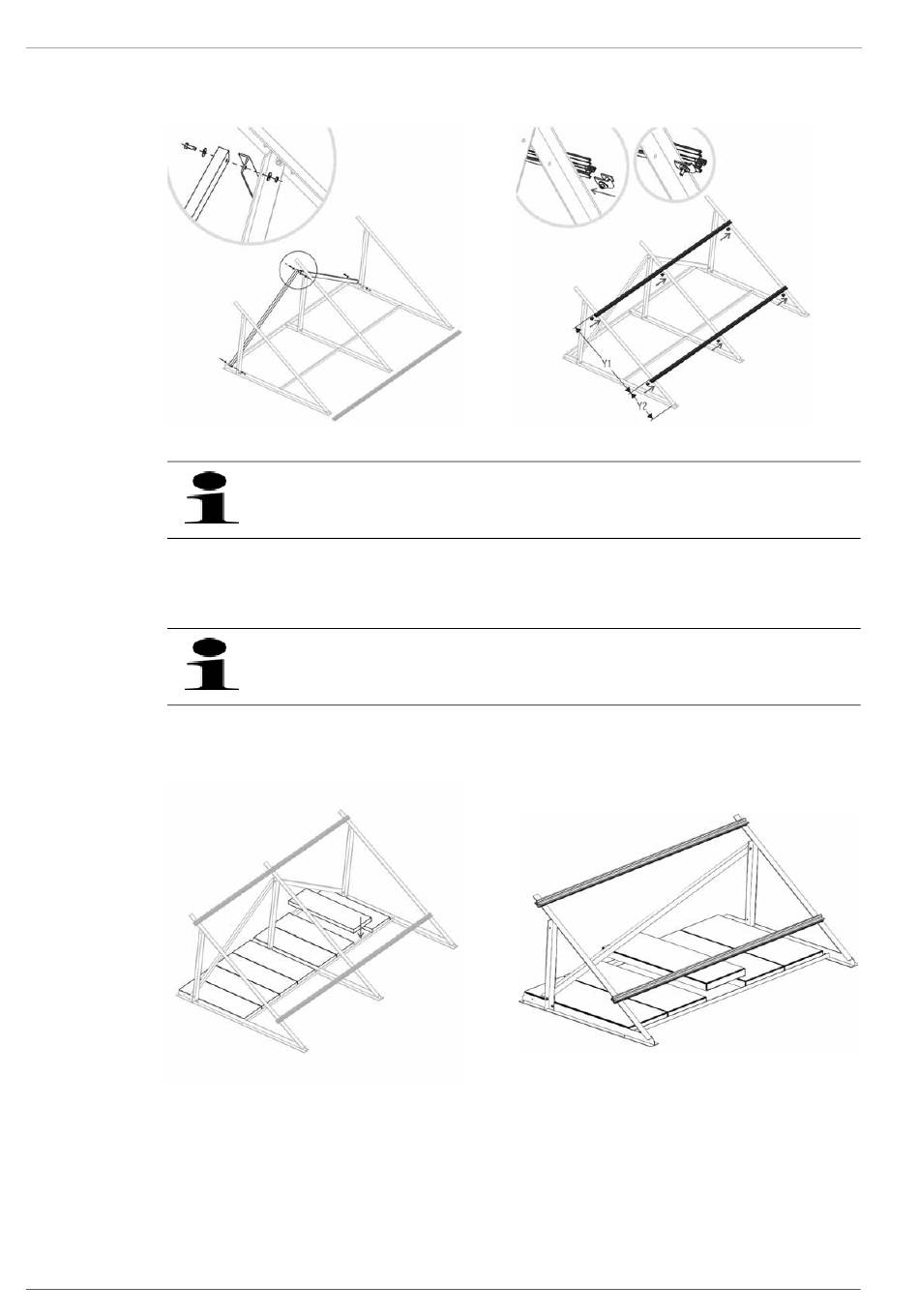

6. Mount all diagonal struts between the base triangles (Fig 3-10). Use self locking hexagon nuts, washers and hexagon screws
supplied for this.
Fig. 3-10
7. Mount the lower and upper mounting DIN rail with clamping screw connections (clamping stone, washers and self locking
hexagon nuts) to the bottom edge of supporting rail considering the distance (Y
mounting DIN rails (see Tab. 3-1 and Fig 3-11).
8. To secure the collector field against wind uplift, place the loading weight (concrete slabs) provided in the flat roof trestle
(Fig 3-12 and Fig 3-13). Observe the required weights in Tab. 3-3.
Fig. 3-12
12
Mounting diagonal struts
If a flat roof trestle is being erected for more than two V26A collectors, first, mount only a diagonal strut on
the planned collector side line.
To start with, tighten the clamping screw connections only with the hand to allow for an easier alignment of
the mounting rails.
Placing concrete slabs (V26A)
Fig. 3-11 Mounting the mounting DIN rail
) as well as the distance (Y
2
Fig. 3-13 Placing concrete slabs (H26A)
