Product description

2.1

Flat roof packages

2 Product description

2.1.1 For the collector V26A

Basic package FD 260 (
– 3 base rails (pos. 9) and 3 support rails (pos. 10)
– 3 support angles (pos. 11)
– 4 cross-struts (pos. 12) as well as 2 diagonal struts
(pos. 13)
– Accessories pouch (pos. 14) with 6 clamping stones,
13 hexagon screws SW13, 19 self locking
hexagon nuts SW13, 40 washers,
6 clamping plate, per 8 round-head screws,
hexagon nuts SW13 as well as spring lock washers
– Mounting instructions (pos. 15)
Extension package FD 130E (
collector (3 to max. 5):
– 1 base rail (pos. 9) and 1 support rail (pos. 10)
– 1 support angle (pos. 11)
– 2 cross-struts (pos. 12)
– Accessories pouch (pos. 14) with 2 clamping stones,
3 hexagon screws SW13, 5 self locking
hexagon nuts SW13, 12 washers,
2 clamping plates, per 4 round-head screws,
hexagon nuts SW13 as well as spring lock washers
– Mounting instructions (pos. 15)

2.1.2 For the collector H26A

Basic package FD 200H (
– 2 base rails (pos. 9) and 2 support rails (pos. 10)
– 2 support angles (pos. 11)
– 2 cross-struts (pos. 12) as well as a diagonal strut (pos. 13)
– Accessories pouch (pos. 14) with 4 clamping stones,
8 hexagon screws SW13, 12 self locking
hexagon nuts SW13, 24 washers,
per 4 clamping plates, round-head screws,
hexagon nuts SW13 as well as spring lock washers
– Mounting instructions (pos. 15)
Extension package FD 200HE (
collector (2 to max. 5):
– 1 base rail (pos. 9) and 1 support rail (pos. 10)
– 1 support angle (pos. 11)
– 2 cross-struts (pos. 12) as well as a diagonal strut (pos. 13)
– Accessories pouch (pos. 14) with 4 clamping stones,
8 hexagon screws SW13, 12 self locking
hexagon nuts SW13, 24 washers,
per 4 clamping plates, round-head screws,
hexagon nuts SW13 as well as spring lock washers
– Mounting instructions (pos. 15)
4
16 47 01) for two collectors:
16 47 02) for every other
16 47 14) for a collector:
16 47 15) for every other

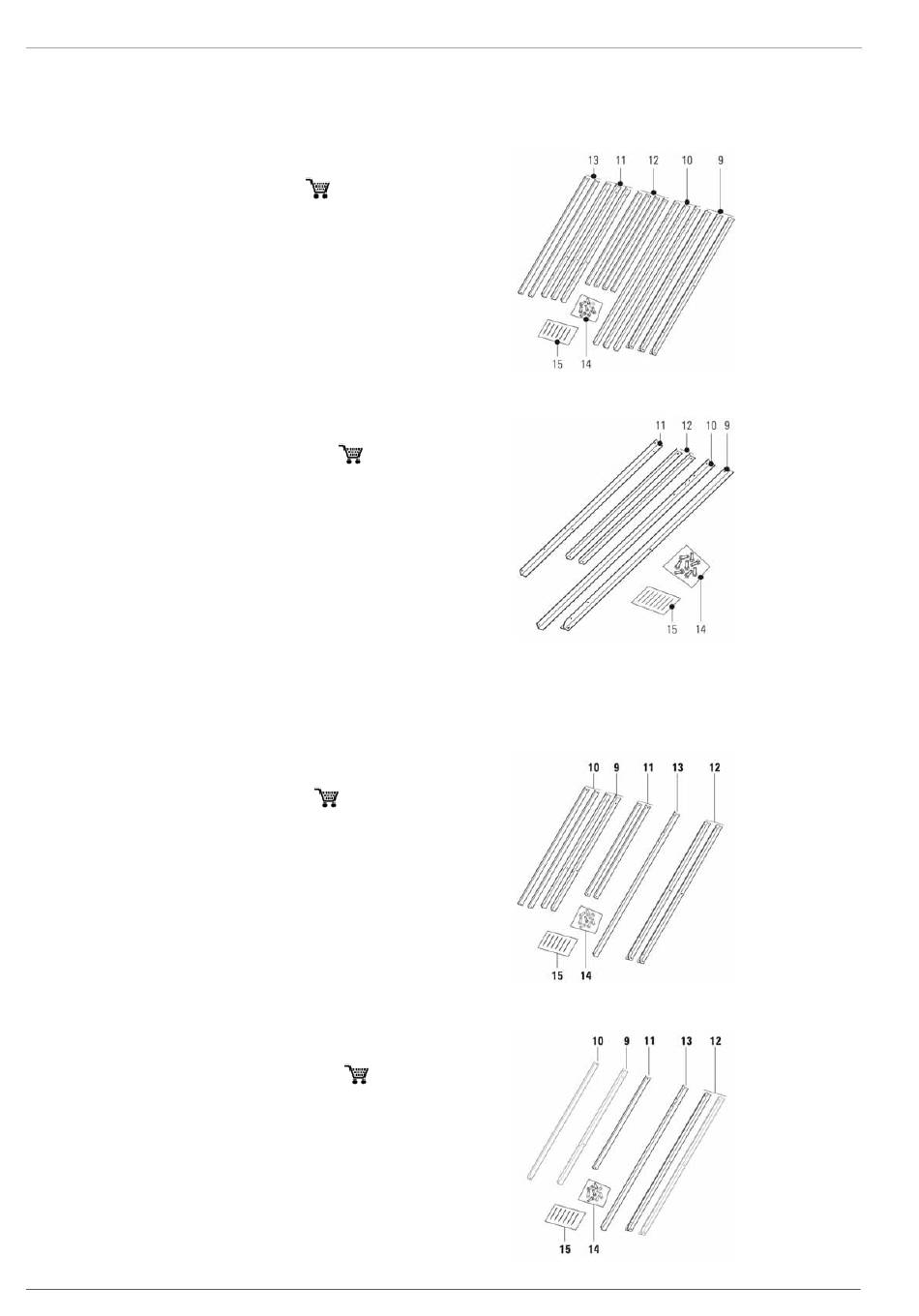

Fig. 2-1 FD 260
Fig. 2-2 FD 130E
Fig. 2-3 FD 200H
Fig. 2-4 FD 200HE
FA ROTEX Solaris flat roof - 05/2007
