3. Establish the number of required base triangles (3 and 2 base triangles for 2 and 1 collector field).

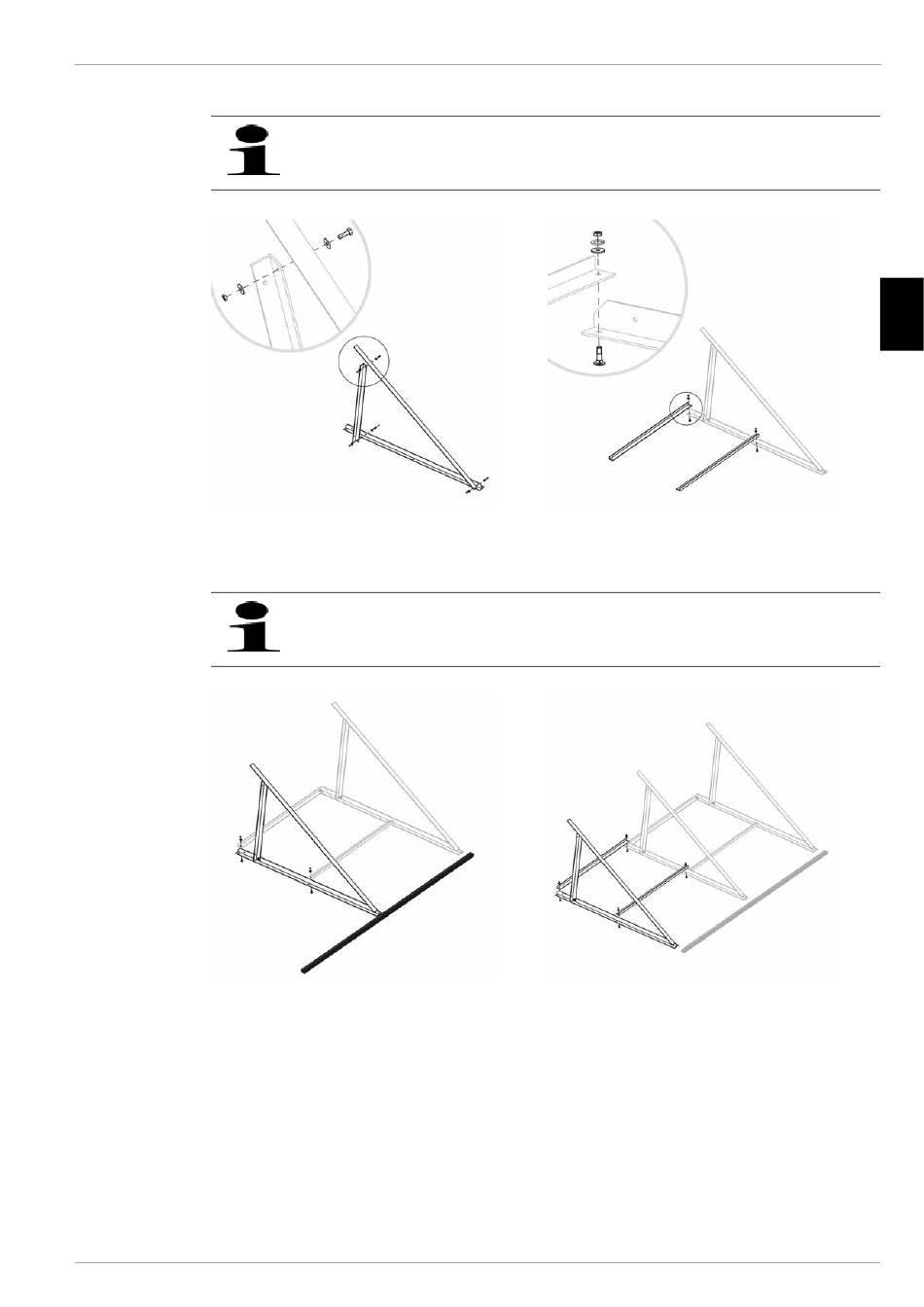

Fig. 3-6
4. Mount all cross-struts between the base triangles (Fig 3-7). Use round-head screws, hexagon nuts, washers and spring lock
washers supplied for this.
Fig. 3-8
5. Only V26A: Secure the third base triangle with 2 further cross-struts (Fig 3-9).
FA ROTEX Solaris flat roof - 05/2007
A base triangle consists of a cornerstone, a support rail and a (cut to length if necessary) support
angle (Fig 3-6).
Establishing a base triangle
The flat roof trestle must be levelled before the final tightening of the nuts (Fig 3-8). For this purpose, the
mountig DIN rail is set from corresponding collector mounting rail package before the base triangles. The
leading edge of all base triangles must be fixed on an alignment.
Installation of the second base triangle and alignment with
mounting rail
Fig. 3-7 Mounting cross-struts
Fig. 3-9 Installation of cross-struts and the third base triangle
(only V26A)
3 x Assembly
