Technical Data
6.1.2

Pressure ranges

Permitted control pressure for control function A: 5.5 – 10 bar
Permitted control pressure for control function B: 2.0 – 10 bar
Medium pressure for control function A: from vacuum to 16 bar
Required minimum control pressure for control function B depending on the medium pressure
The following graph indicates the minimum control pressure required for control function B depending on
the medium pressure.

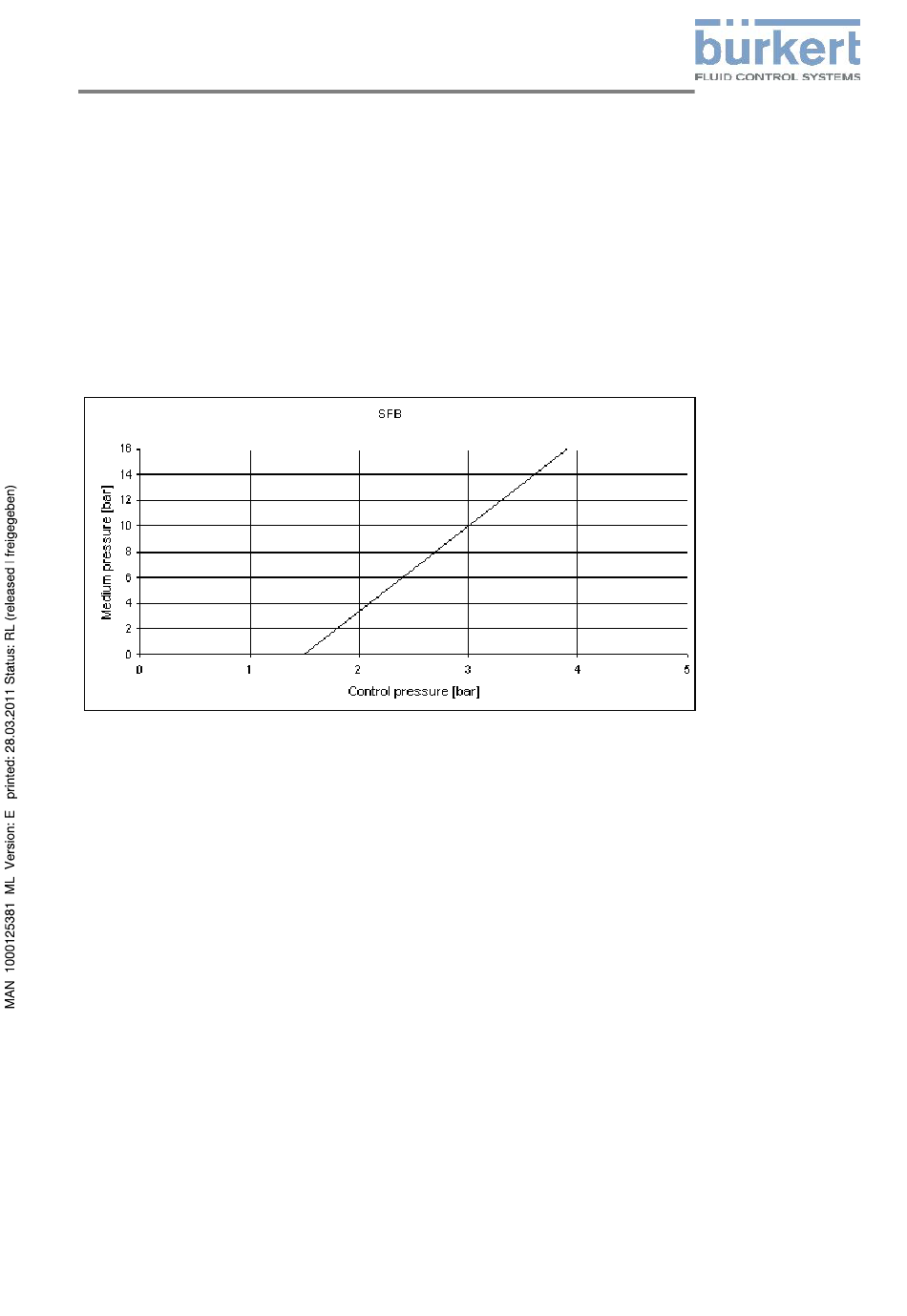

Fig. 2: Pressure graph, control function B, incoming flow under seat
