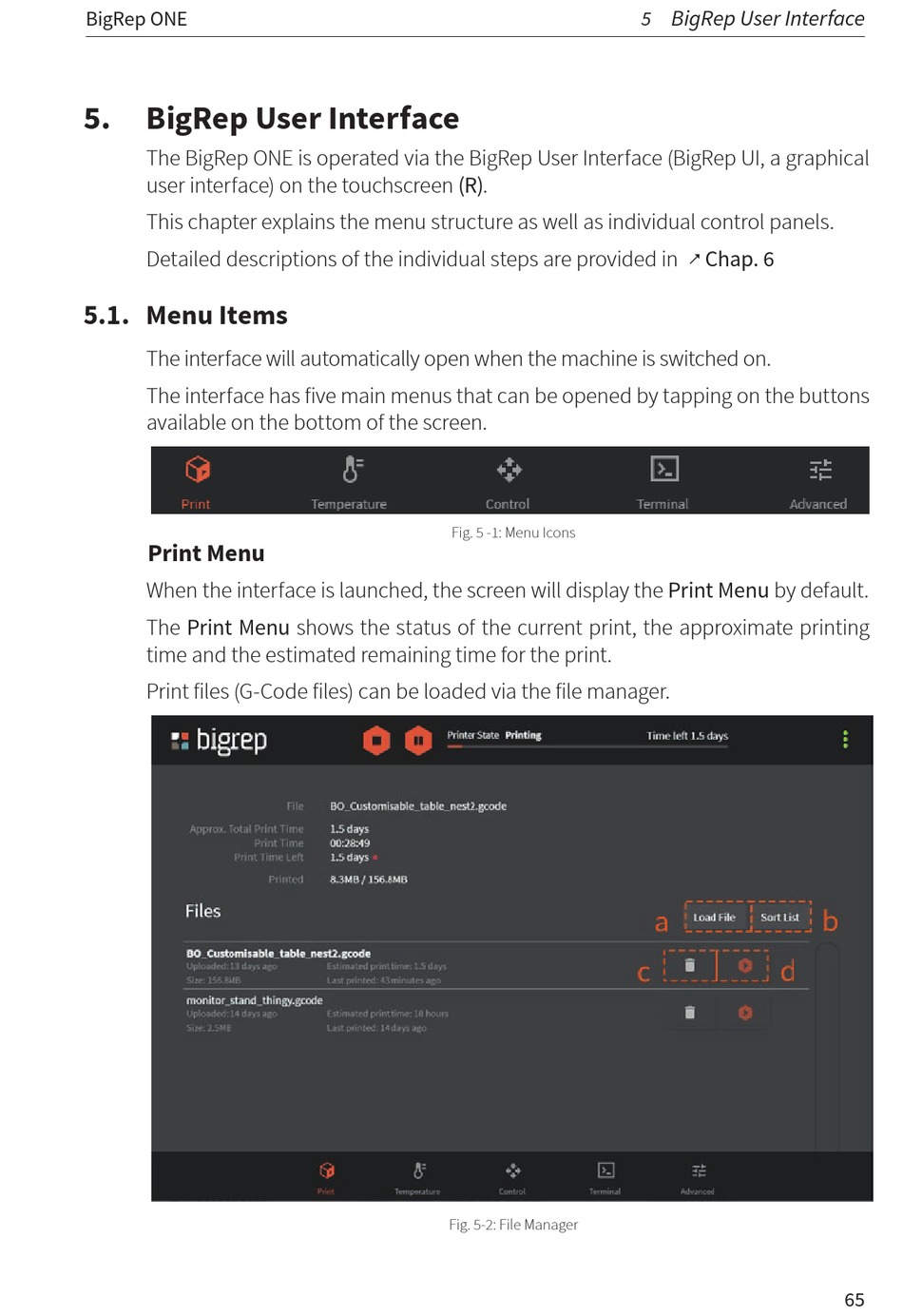

5. BigRep User Interface
The BigRep ONE is operated via the BigRep User Interface (BigRep UI, a graphical
user interface) on the touchscreen (R).
This chapter explains the menu structure as well as individual control panels.
Detailed descriptions of the individual steps are provided in

5.1. Menu Items

The interface will automatically open when the machine is switched on.
The interface has five main menus that can be opened by tapping on the buttons
available on the bottom of the screen.
Print Menu
When the interface is launched, the screen will display the Print Menu by default.
The Print Menu shows the status of the current print, the approximate printing
time and the estimated remaining time for the print.
Print files (G-Code files) can be loaded via the file manager.
Fig. 5 -1: Menu Icons
Fig. 5-2: File Manager
BigRep User Interface
5
Chap. 6
&
65
