Operation and Control
6
›

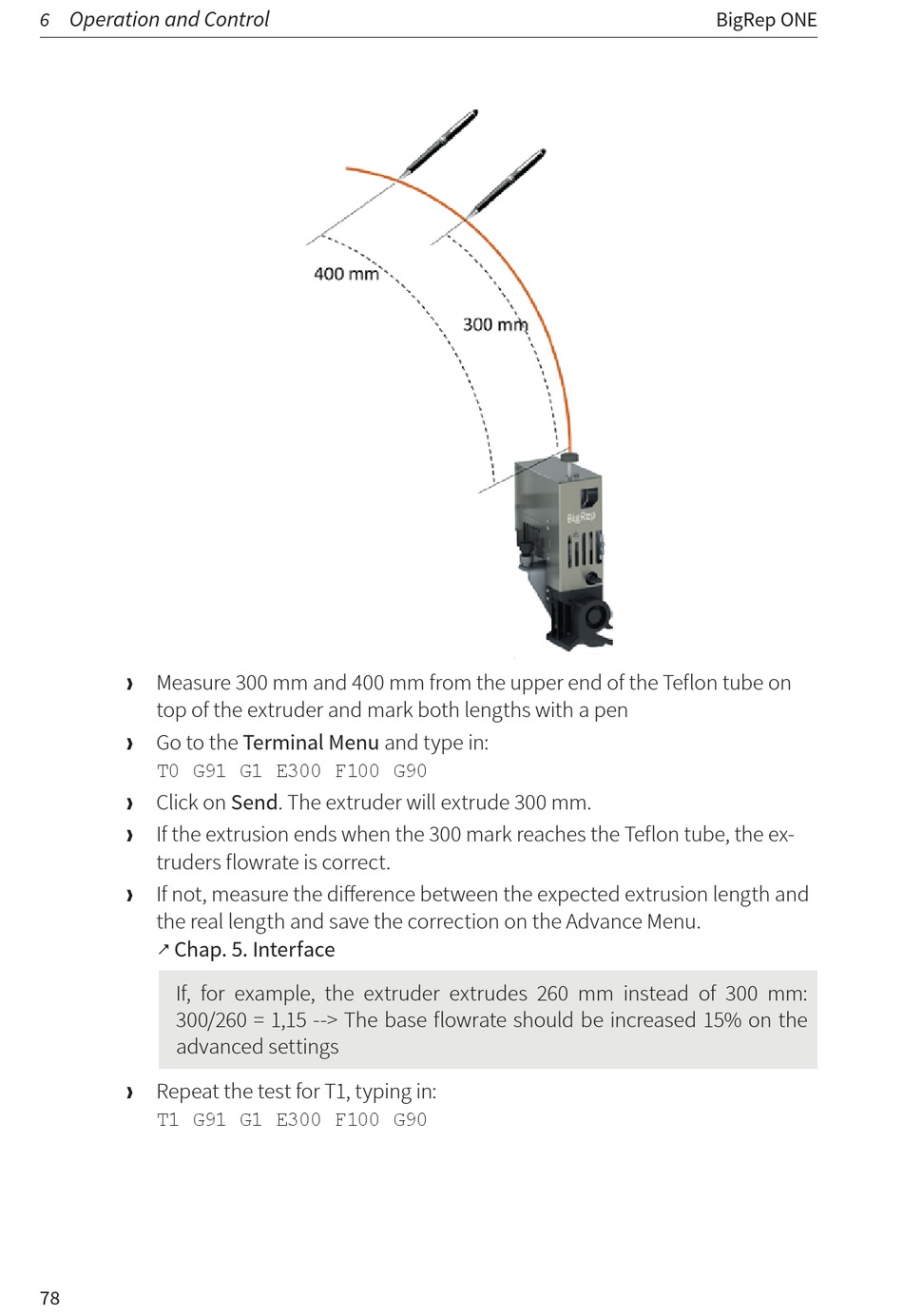

Measure 300 mm and 400 mm from the upper end of the Teflon tube on
top of the extruder and mark both lengths with a pen
›
Go to the Terminal Menu and type in:
T0 G91 G1 E300 F100 G90
›
Click on Send. The extruder will extrude 300 mm.
›
If the extrusion ends when the 300 mark reaches the Teflon tube, the ex-
truders flowrate is correct.
›
If not, measure the difference between the expected extrusion length and
the real length and save the correction on the Advance Menu.
Chap. 5. Interface
&
If, for example, the extruder extrudes 260 mm instead of 300 mm:
300/260 = 1,15 --> The base flowrate should be increased 15% on the
advanced settings
›
Repeat the test for T1, typing in:
T1 G91 G1 E300 F100 G90
