BigRep ONE Betriebsanleitung Seite 83

BigRep ONE
Overview extruder
a
b
c
d
a Filament guide with sponge
b Lever filament drive
c Idler wheel
d Filament cooling fan
e Hotend cooling fan
f Knob for extruder attachment screw
g Main cooling fan
h Electrical connectors
q
g
l
h
f
f
e k
k Pin hole
l Screws to remove front cover
m Main filament drive wheel
n Hotend with nozzle
o Nozzle
p Filament cooling duct
q Access hole for screw to remove hotend
b
c
p

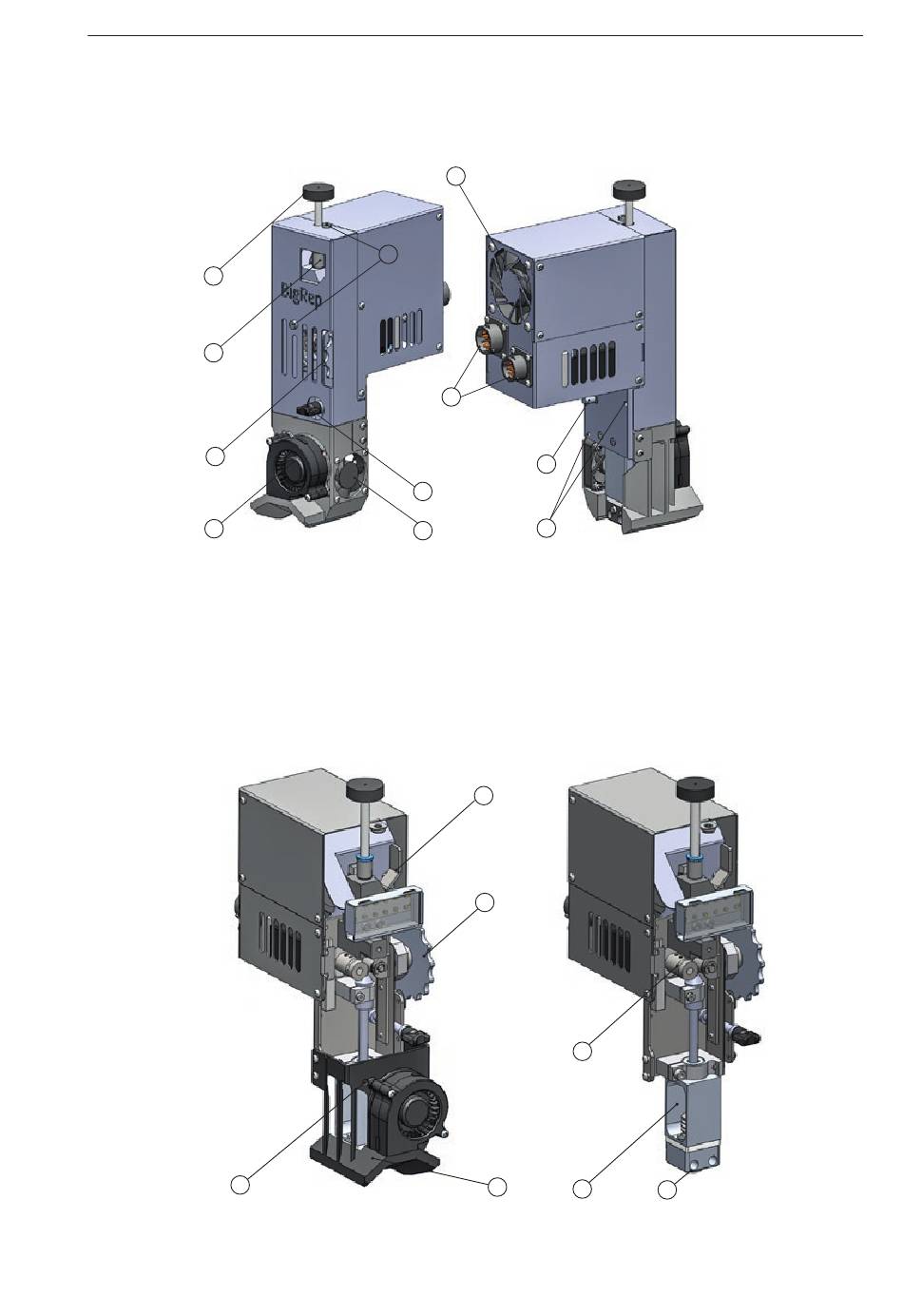

Fig. 7-4: Overview Extruder
7
m
n
o
Retrofitting
83
