Preparing the cables

For optimum results, proceed as follows:
D Remove the outer sheath of the cable and, depending on the cable diameter,
expose the braided shield for about 10...15 mm.
D Push the cap nut and the bladed insert with the sealing ring onto the cable.
D Bend the braided shield outward at right angles (90°).
D Crimp the braided shield over towards the outer sheath of the cable, i.e. fold
it a further 180°.
D Slip the intermediate connection piece on as far as the braided screen, briefly
turning it to and fro around the cable axis.
D Push the bladed insert with the sealing ring into the intermediate connection
piece and engage the locking element.
D Firmly tighten the cap nut.
cap nut
shielded cable

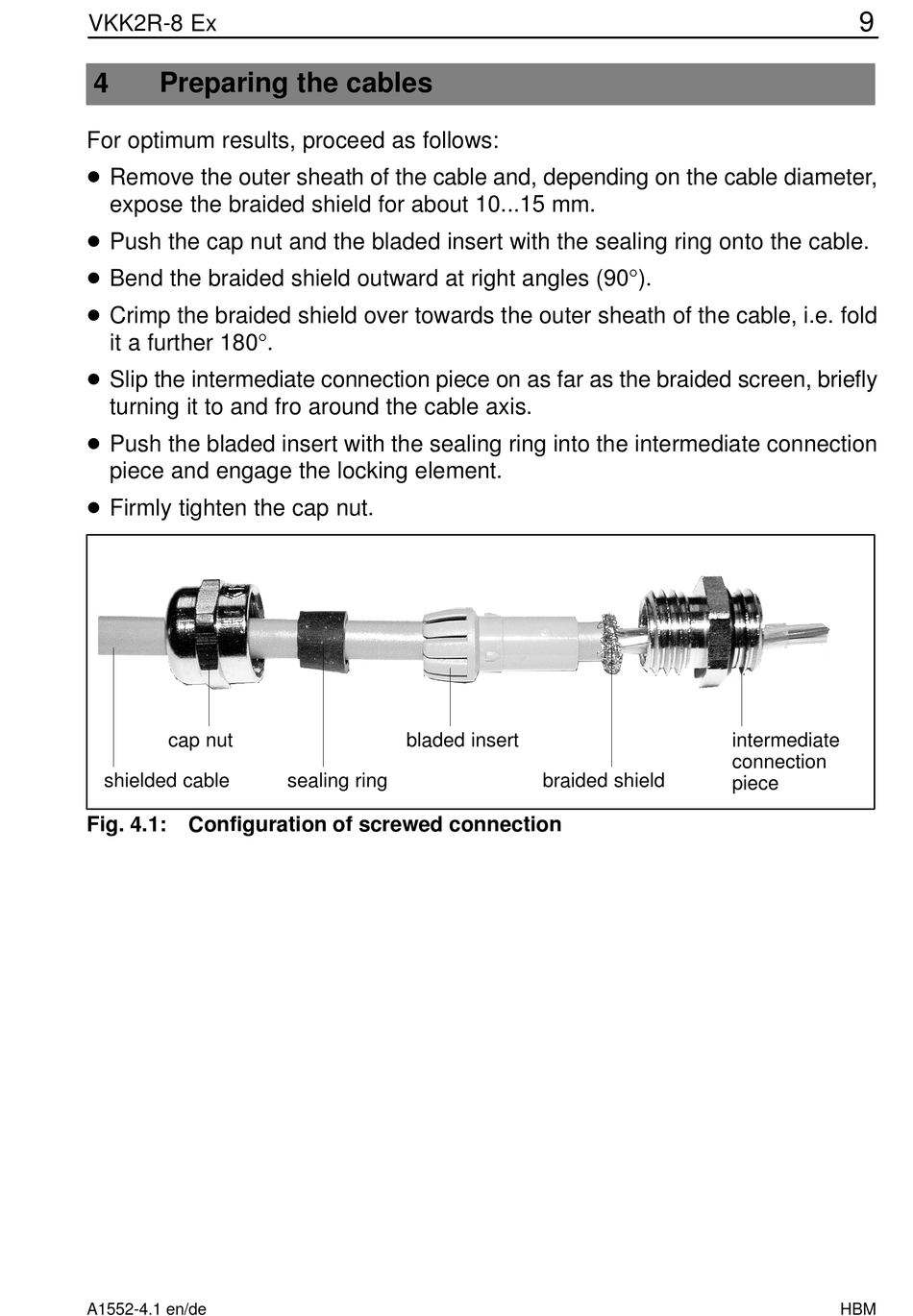

Fig. 4.1: Configuration of screwed connection
A1552-4.1 en/de
bladed insert
sealing ring braided shield
9
intermediate
connection
piece
