HBM VKK2R-8 Ex Bedienungsanleitung Seite 13

VKK2R-8 Ex
50 kg
0.5 t
5 t
0.2 1
2 10
20 100
80

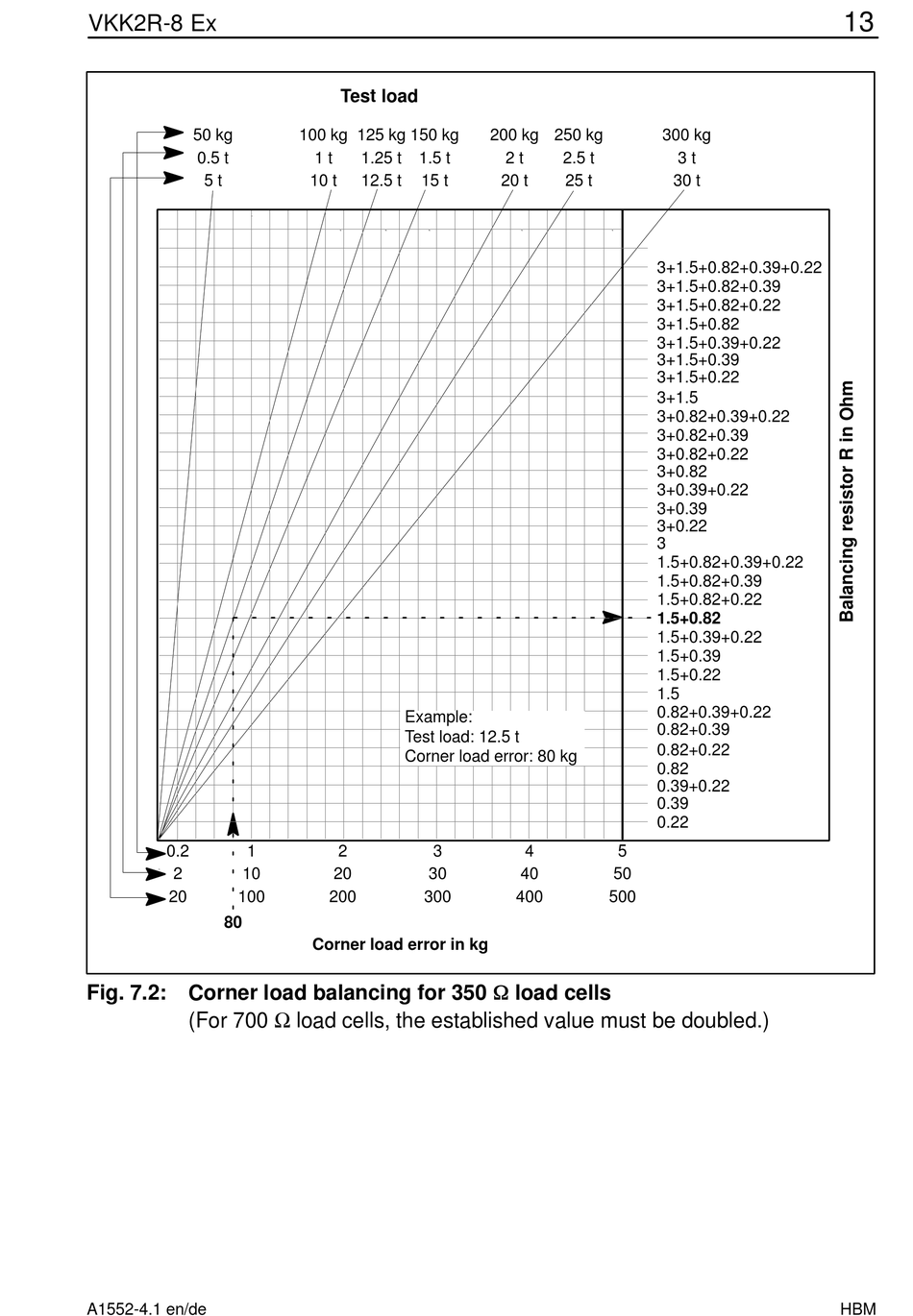

Fig. 7.2: Corner load balancing for 350 W load cells
(For 700 Ω load cells, the established value must be doubled.)
A1552-4.1 en/de
Test load
100 kg 125 kg 150 kg
1 t 1.25 t 1.5 t
10 t 12.5 t 15 t
Example:
Test load: 12.5 t
Corner load error: 80 kg
2 3
20 30
200 300
Corner load error in kg
200 kg 250 kg 300 kg
2 t 2.5 t
20 t 25 t
3+1.5+0.82+0.39+0.22
3+1.5+0.82+0.39
3+1.5+0.82+0.22
3+1.5+0.82
3+1.5+0.39+0.22
3+1.5+0.39
3+1.5+0.22
3+1.5
3+0.82+0.39+0.22
3+0.82+0.39
3+0.82+0.22
3+0.82
3+0.39+0.22
3+0.39
3+0.22
3
1.5+0.82+0.39+0.22
1.5+0.82+0.39
1.5+0.82+0.22
1.5+0.82
1.5+0.39+0.22
1.5+0.39
1.5+0.22
1.5
0.82+0.39+0.22
0.82+0.39
0.82+0.22
0.82
0.39+0.22
0.39
0.22
4 5
40 50
400 500
13
3 t
30 t
