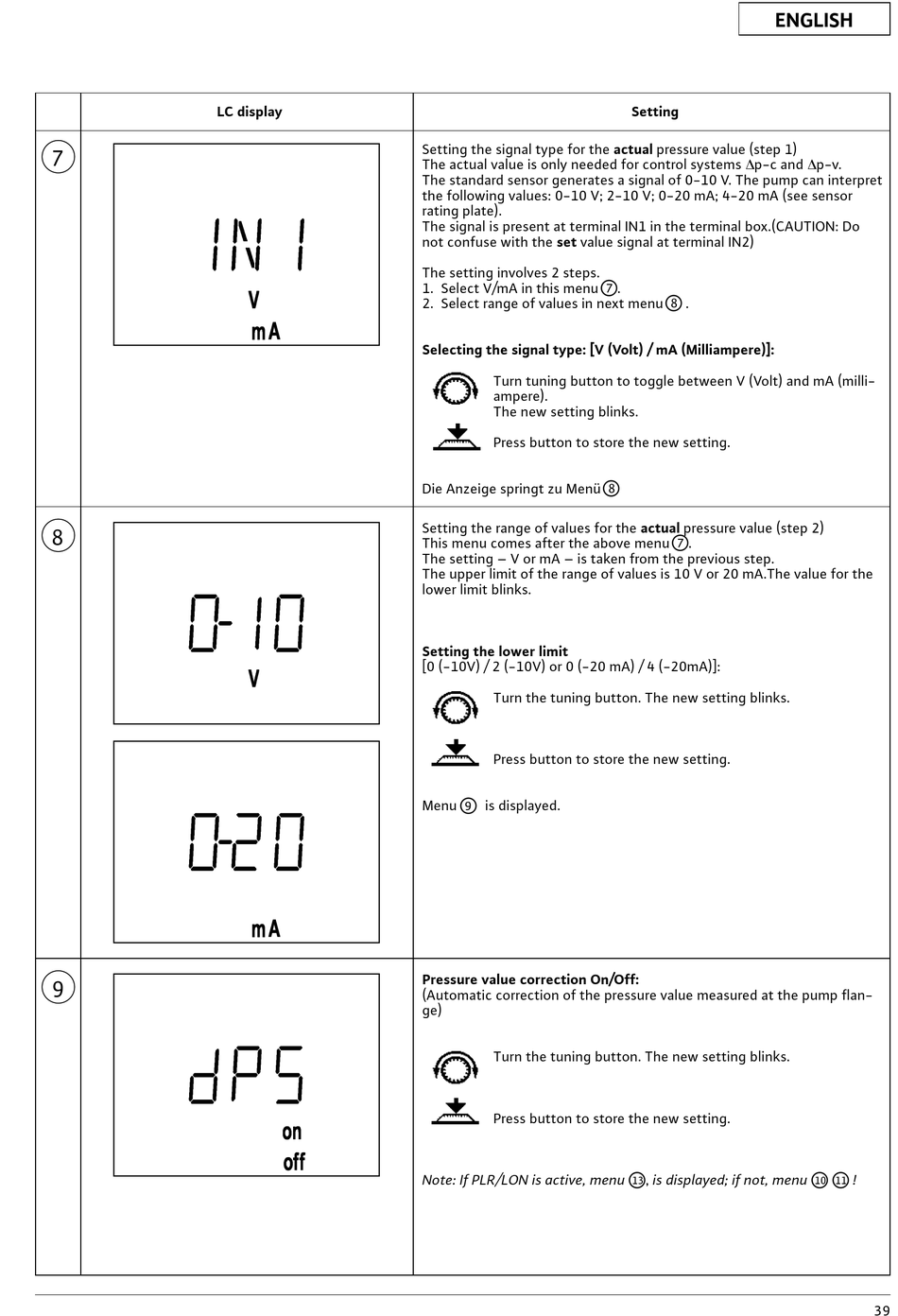

Setting the signal type for the actual pressure value (step 1)
The actual value is only needed for control systems ∆p-c and ∆p-v.
The standard sensor generates a signal of 0-10 V. The pump can interpret
the following values: 0-10 V; 2-10 V; 0-20 mA; 4-20 mA (see sensor
rating plate).
The signal is present at terminal IN1 in the terminal box.(CAUTION: Do
not confuse with the set value signal at terminal IN2)
The setting involves 2 steps.
1. Select V/mA in this menu
2. Select range of values in next menu
Selecting the signal type: [V (Volt) / mA (Milliampere)]:
Turn tuning button to toggle between V (Volt) and mA (milli-
ampere).
The new setting blinks.
Press button to store the new setting.
Die Anzeige springt zu Menü
Setting the range of values for the actual pressure value (step 2)
This menu comes after the above menu
The setting – V or mA – is taken from the previous step.
The upper limit of the range of values is 10 V or 20 mA.The value for the
lower limit blinks.
Setting the lower limit
[0 (-10V) / 2 (-10V) or 0 (-20 mA) / 4 (-20mA)]:
Turn the tuning button. The new setting blinks.
Press button to store the new setting.
X
Menu 9 is displayed.
Pressure value correction On/Off:
(Automatic correction of the pressure value measured at the pump flan-
ge)
Turn the tuning button. The new setting blinks.
Press button to store the new setting.
Note: If PLR/LON is active, menu
Setting
X
.
7
X
.
8
X
8
X
.
7
X
, is displayed; if not, menu
13
