Operating Instructions ORTHOPHOS 3
5.3

Program P 6.1 / P 6.2

P6.1 P6.2
60 82 262 D 3285
D 3285.201.04.06.02
P6.2 P6.1
Head positioner
P6.1
P6.2

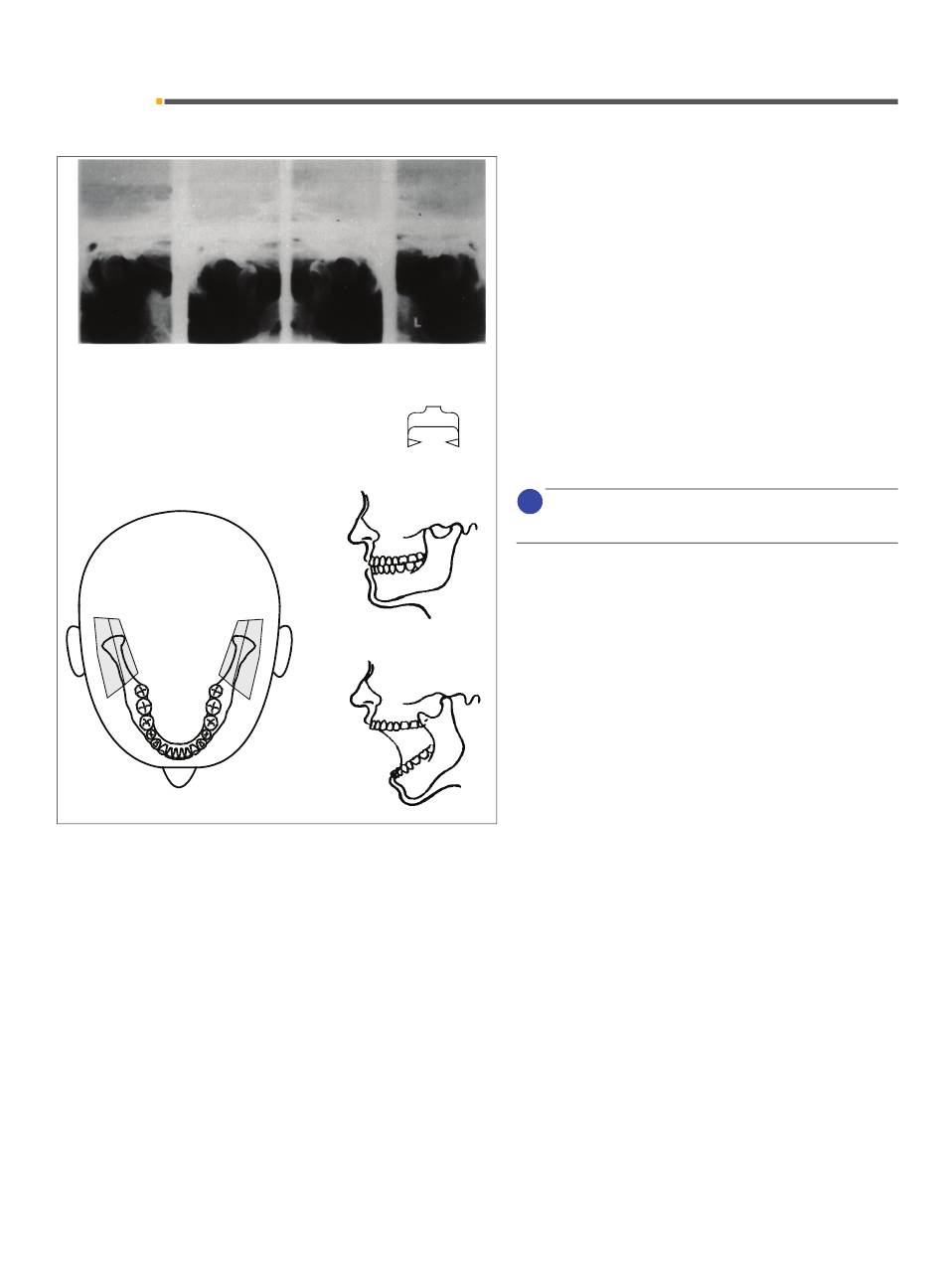

Lateral exposures of the temporomandibular joints
with closed and open mouth.
(4 exposures on one image)
• Insert head positioner (see page 18).
P6.1 Outer Image: Closed mouth
• Actuate P6.1
After P6.1 is completed, the unit automatically returns
to the initial position.
P6.2 Inner Image: Open mouth
• Have the patient open his mouth and actuate P6.2.
i
NOTE
L on the film means the left half of the cranium.
5 Exposure Programs
17
