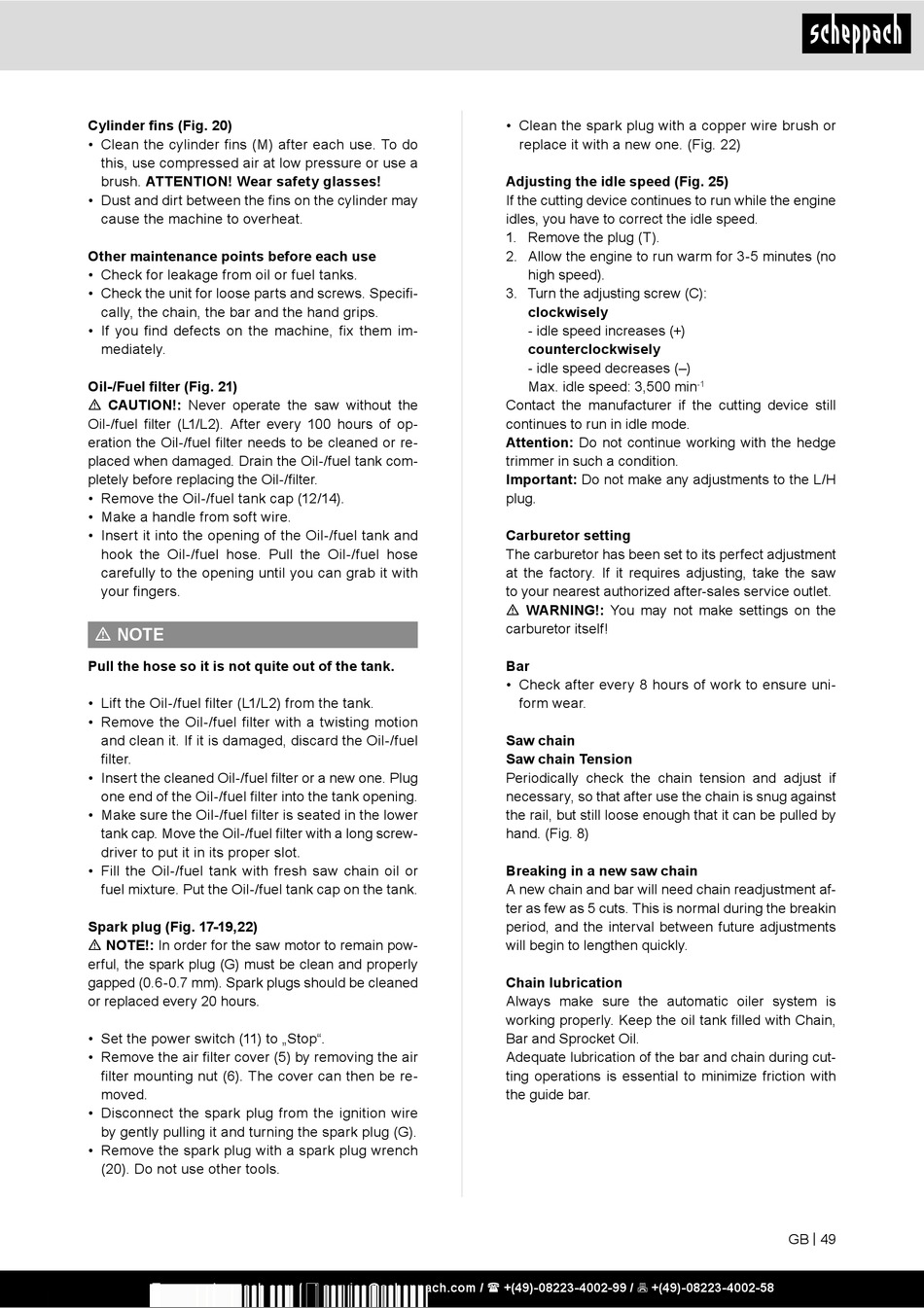

Cylinder fins (Fig. 20)
• Clean the cylinder fins (M) after each use. To do
this, use compressed air at low pressure or use a
brush. ATTENTION! Wear safety glasses!
• Dust and dirt between the fins on the cylinder may
cause the machine to overheat.
Other maintenance points before each use
• Check for leakage from oil or fuel tanks.
• Check the unit for loose parts and screws. Specifi-
cally, the chain, the bar and the hand grips.
• If you find defects on the machine, fix them im-
mediately.
Oil-/Fuel filter (Fig. 21)
m CAUTION!: Never operate the saw without the
Oil-/fuel filter (L1/L2). After every 100 hours of op-
eration the Oil-/fuel filter needs to be cleaned or re-
placed when damaged. Drain the Oil-/fuel tank com-
pletely before replacing the Oil-/filter.
• Remove the Oil-/fuel tank cap (12/14).
• Make a handle from soft wire.
• Insert it into the opening of the Oil-/fuel tank and
hook the Oil-/fuel hose. Pull the Oil-/fuel hose
carefully to the opening until you can grab it with
your fingers.
m NOTE
Pull the hose so it is not quite out of the tank.
• Lift the Oil-/fuel filter (L1/L2) from the tank.
• Remove the Oil-/fuel filter with a twisting motion
and clean it. If it is damaged, discard the Oil-/fuel
filter.
• Insert the cleaned Oil-/fuel filter or a new one. Plug
one end of the Oil-/fuel filter into the tank opening.
• Make sure the Oil-/fuel filter is seated in the lower
tank cap. Move the Oil-/fuel filter with a long screw-
driver to put it in its proper slot.
• Fill the Oil-/fuel tank with fresh saw chain oil or
fuel mixture. Put the Oil-/fuel tank cap on the tank.
Spark plug (Fig. 17-19,22)
m NOTE!: In order for the saw motor to remain pow-
erful, the spark plug (G) must be clean and properly
gapped (0.6-0.7 mm). Spark plugs should be cleaned
or replaced every 20 hours.
• Set the power switch (11) to „Stop".
• Remove the air filter cover (5) by removing the air
filter mounting nut (6). The cover can then be re-
moved.
• Disconnect the spark plug from the ignition wire
by gently pulling it and turning the spark plug (G).
• Remove the spark plug with a spark plug wrench
(20). Do not use other tools.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
• Clean the spark plug with a copper wire brush or
replace it with a new one. (Fig. 22)
Adjusting the idle speed (Fig. 25)
If the cutting device continues to run while the engine
idles, you have to correct the idle speed.
1. Remove the plug (T).
2. Allow the engine to run warm for 3-5 minutes (no
high speed).
3. Turn the adjusting screw (C):
clockwisely
- idle speed increases (+)
counterclockwisely
- idle speed decreases (–)
Max. idle speed: 3,500 min
Contact the manufacturer if the cutting device still
continues to run in idle mode.
Attention: Do not continue working with the hedge
trimmer in such a condition.
Important: Do not make any adjustments to the L/H
plug.
Carburetor setting
The carburetor has been set to its perfect adjustment
at the factory. If it requires adjusting, take the saw
to your nearest authorized after-sales service outlet.
m WARNING!: You may not make settings on the
carburetor itself!
Bar
• Check after every 8 hours of work to ensure uni-
form wear.
Saw chain
Saw chain Tension
Periodically check the chain tension and adjust if
necessary, so that after use the chain is snug against
the rail, but still loose enough that it can be pulled by
hand. (Fig. 8)
Breaking in a new saw chain
A new chain and bar will need chain readjustment af-
ter as few as 5 cuts. This is normal during the breakin
period, and the interval between future adjustments
will begin to lengthen quickly.
Chain lubrication
Always make sure the automatic oiler system is
working properly. Keep the oil tank filled with Chain,
Bar and Sprocket Oil.
Adequate lubrication of the bar and chain during cut-
ting operations is essential to minimize friction with
the guide bar.
