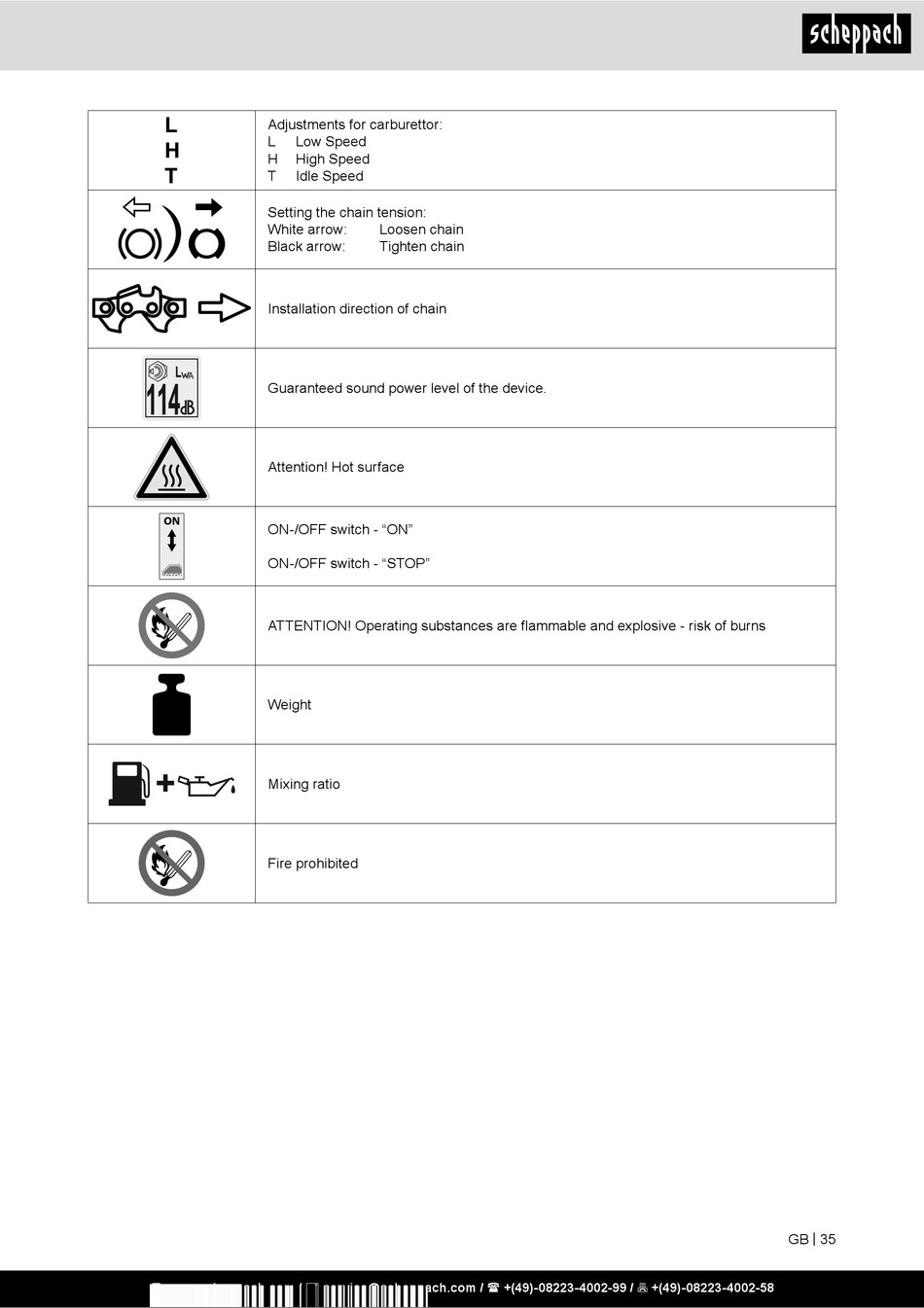

Adjustments for carburettor:
L Low Speed
H High Speed
T Idle Speed
Setting the chain tension:
White arrow:
Black arrow:
Installation direction of chain
Guaranteed sound power level of the device.
Attention! Hot surface
ON
ON-/OFF switch - "ON"
ON-/OFF switch - "STOP"
ATTENTION! Operating substances are flammable and explosive - risk of burns
Weight
Mixing ratio
Fire prohibited
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Loosen chain
Tighten chain
GB | 35
