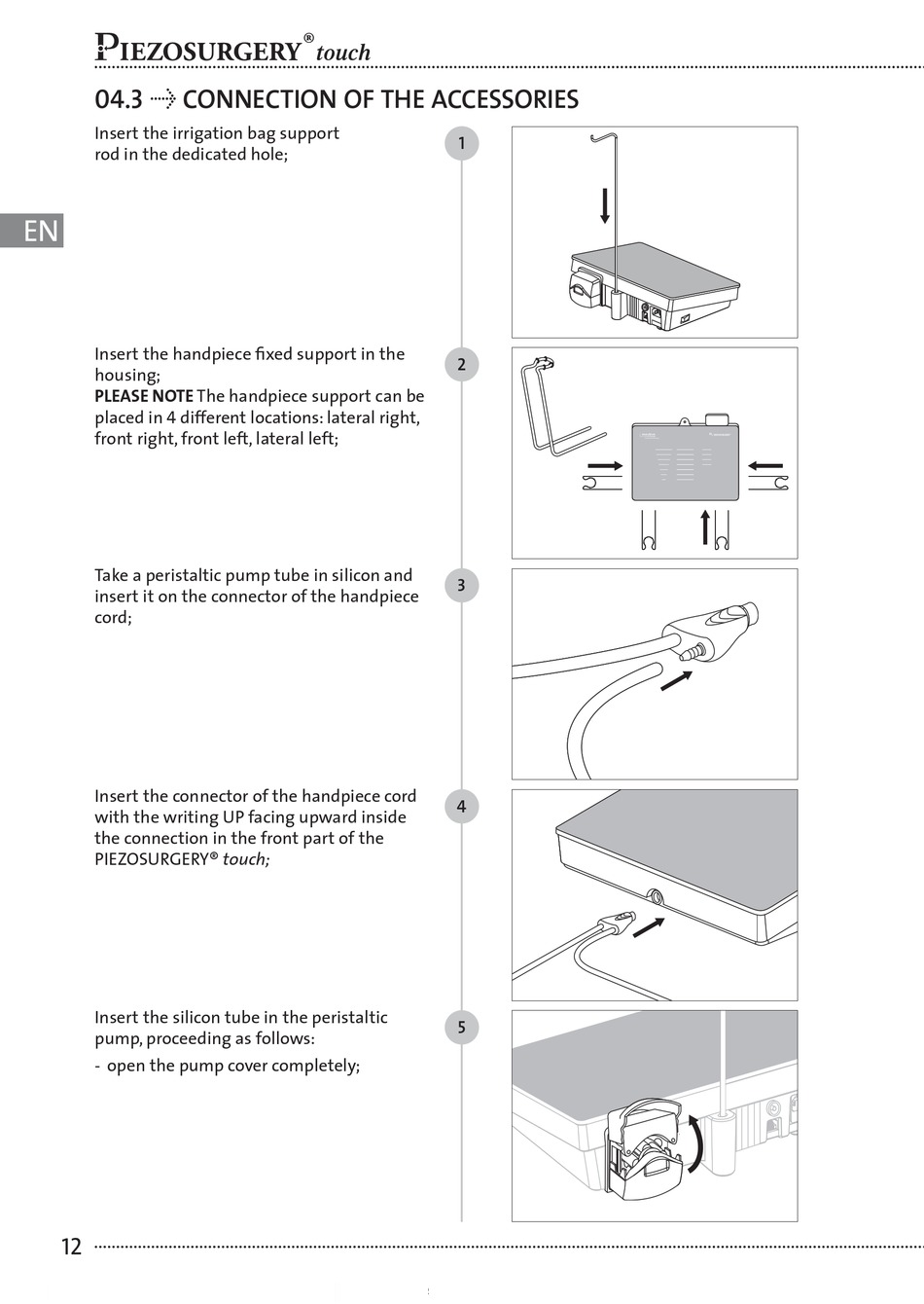

04.3 Û CONNECTION OF THE ACCESSORIES
Insert the irrigation bag support
rod in the dedicated hole;
EN
Insert the handpiece fixed support in the
housing;
PLEASE NOTE The handpiece support can be
placed in 4 different locations: lateral right,
front right, front left, lateral left;
Take a peristaltic pump tube in silicon and
insert it on the connector of the handpiece
cord;
Insert the connector of the handpiece cord
with the writing UP facing upward inside
the connection in the front part of the
PIEZOSURGERY® touch;
Insert the silicon tube in the peristaltic
pump, proceeding as follows:
- open the pump cover completely;
12
1
2
3
4
5
