3.2. Storage
The stainless steel distributor/collector "Multidis SF"
must only be stored under the following conditions:
• Do not store in open air, keep dry and free from dust.
• Do not expose to aggressive fluids or heat sources.
• Protect from direct sunlight and mechanical agitation.
• Storage temperature: -20°C up to +55°C,
max. relative humidity of air: 95 %
ATTENTION:
– Please protect against external forces (e.g. im-
pacts, vibrations etc.)
– External components such as handwheels, pres-
sure test points and actuators should not be used
as lever points during installation.
– Suitable means of transport and fitting devices
have to be used.

4. Technical data

4.1. Performance data
Max. working pressure:
Max. differential pressure:
Max. working temperature:
k value:
vs
DANGER!
Suitable measures (e.g. safety valves) have to be
taken so that the maximum working pressure and
the maximum and minimum temperatures are not
exceeded or undercut.
4.2. Dimensions / Connection dimensions

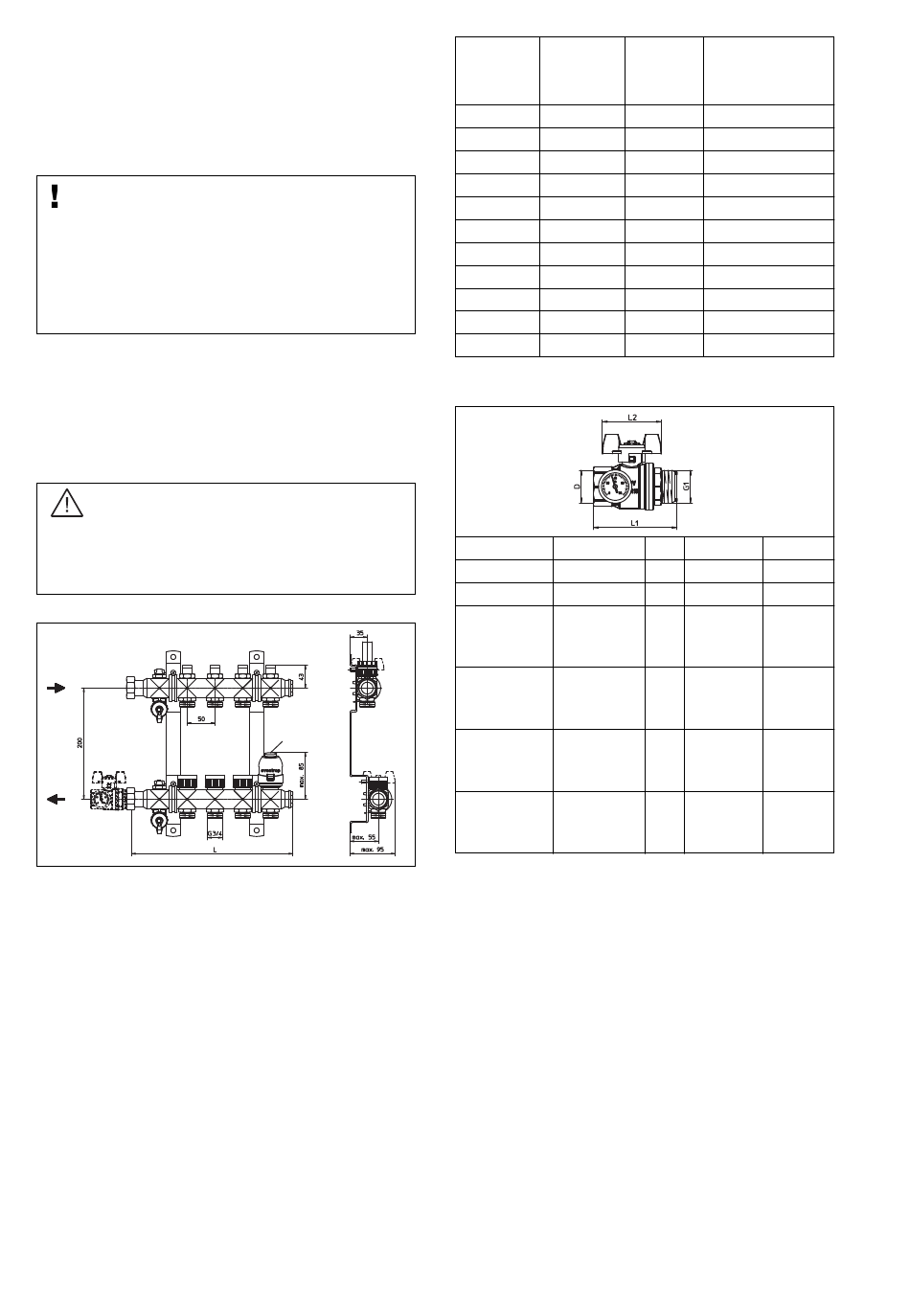

Illustr. 4.1: Dimensions stainless steel distributor/collec-
tor "Multidis SF"
6
6 bar
1 bar
80 °C
1.9 m 3 /h
Actuator
Item Outlets
no.
1404552 2
1404553 3
1404554 4
1404555 5
1404556 6
1404557 7
1404558 8
1404559 9
1404560 10
1404561 11
1404562 12
Illustr. 4.2: Lengths for stainless steel distributor/collec-
tor "Multidis SF"
Item no. Size
1406383 DN 20
1406384 DN 25
1406483 DN 20
(with thermo-
meter and red
T-handle)
1406583 DN 20
(with thermo-
meter and blue
T-handle)
1406484 DN 25
(with thermo-
meter and red
T-handle)
1406584 DN 25
(with thermo-
meter and blue
T-handle)
Illustr. 4.3: Ball valve dimensions

5. Construction and function

5.1. Summary / Functional description
The stainless steel distributors/collectors "Multidis SF"
are designed for use in surface heating and cooling sys-
tems with circulation pump.
The risers can be connected to the distributor/collector
from either the left or right hand side.
The brackets allow the fixing of the distributor/collector
in the cabinet or directly on the wall. The stainless steel
distributors/collectors can be equipped with the ball
valves displayed in illustr. 4.3. The flat sealing ball valves
are directly connected to the collar nuts (G 1 female
thread) of the distributors/collectors.
Standard heat meters G 1 and G
When choosing the cabinet, please take into considera-
tion that this will result in an enlarged depth and length
of the stainless steel distributor/collector "Multidis SF".
The heating/cooling circuit connections have a G
male thread according to DIN EN 16313 (cone "Euro").
Printed tags for marking the heating/cooling circuit con-
nections are supplied with the distributors/collectors.
Length (L) Length with
ball valves
14064/6583
190 mm 263 mm
240 mm 313 mm
290 mm 363 mm
340 mm 413 mm
390 mm 463 mm
440 mm 513 mm
490 mm 563 mm
540 mm 613 mm
590 mm 663 mm
640 mm 713 mm
690 mm 763 mm
D L1 L2
3
G ⁄ 55 mm 57 mm
4
G1 80 mm 60 mm
3
G ⁄ 73 mm 60 mm
4
3
G ⁄ 73 mm 60 mm
4
G1 85 mm 60 mm
G1 85 mm 60 mm
3
⁄ can be connected.
4
3
⁄
4
