EN

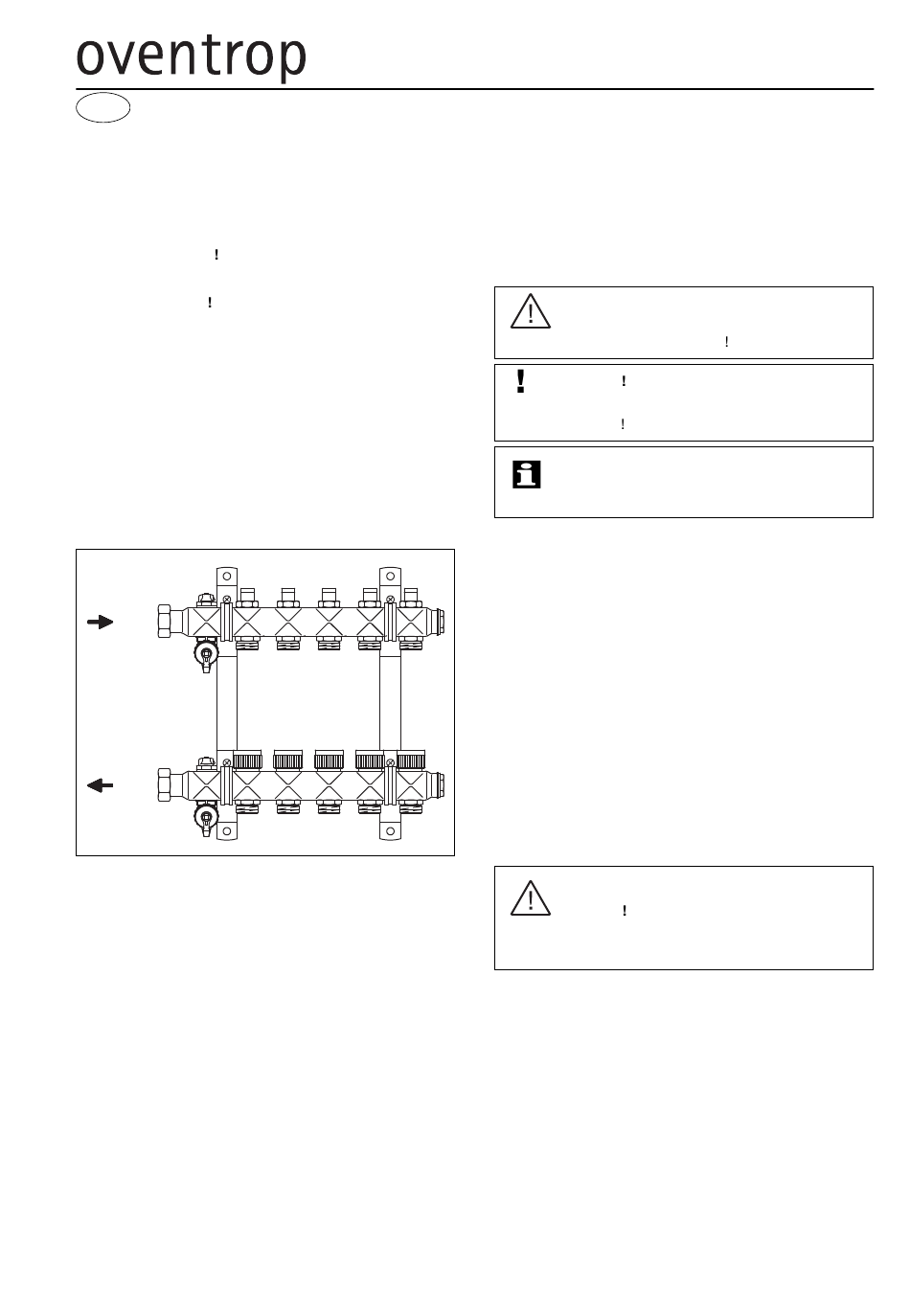

Stainless steel distributor/collector "Multidis SF" for surface heating and cooling
Read installation and operating instructions carefully
before installing the stainless steel distributor/col-
lector "Multidis SF"
The installation and operating instructions as well as
all other valid documents have to remain with the
user of the system
Content:
1. General information . . . . . . . . . . . . . . . . . . . . . . . . . 5
2. Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3. Transport, packaging and storage . . . . . . . . . . . . . 5
4. Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5. Construction and function . . . . . . . . . . . . . . . . . . . . 6
6. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
7. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
8. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
9. Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1. General information

1.1. Information regarding installation and operating
instructions
These installation and operating instructions serve the
installer to install the stainless steel distributor/collector
"Multidis SF" professionally and to set it into operation.
Other valid documents:
Manuals of all system components.
1.2. Keeping of documents
These installation and operating instructions should be
kept by the user of the system.
For an overview of our global presence visit
www.oventrop.com.
Subject to technical modification without notice.
140455280 11/2016
Installation and operating instructions for the specialised installer
1.3. Symbol explanation
Safety guidelines are displayed by symbols. These
guidelines are to be observed to prevent accidents,
damage to property and malfunctions.
Imminent danger to life and limb
Potential dangerous situation for product, system
and environment
Useful information and notes!
1.4. Copyright
The installation and operating instructions are copyright-
ed.

2. Safety notes

2.1. Correct use
Operating safety is only guaranteed if the stainless steel
distributor/collector "Multidis SF" is used correctly.
The stainless steel distributor/collector "Multidis SF" is
used in hot water central heating and/or cooling sys-
tems for individual room temperature control.
Any use of the product outside the above circumstances
will be considered as non-compliant and misuse.
Claims of any kind against the manufacturer and/or its
authorised representatives due to damages caused by
incorrect use cannot be accepted.
The observance of the operating and installation instruc-
tions is part of the compliance terms.
2.2. Possible dangers at the installation location
The stainless steel distributor/collector "Multidis
SF" can get very hot during operation. Do not
touch without safety gloves.
3. Transport, packaging and
3.1. Transport inspection
Upon receipt, check delivery for any damages caused
during transit.
Any damages must be reported immediately upon
receipt.
Valves, controls + systems
with regulating inserts in the supply
(2 to 12 heating circuit connections
DANGER!
ATTENTION
NOTE!
DANGER Hot surfaces
storage
)
