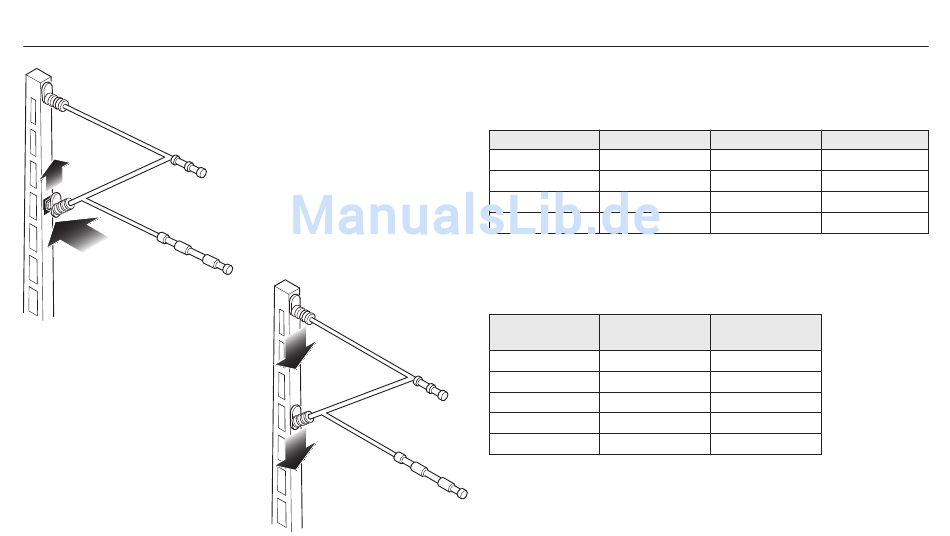

c. Carefully press the hanger arm
down to fix the snap-in con-
nections in place.
b. Press the lower hanger arm moun-
ting piece gently up until the clip
snaps into place in the mounting
hold on the mast.
3.1.5 Selection of Catenary Wire Sections on Curves
Standard Radius Curves
Track System Radius
C Track 360.0 mm / 14-3/16" 142.0 mm / 5-9/16"
C Track 437.5 mm / 17-1/4" 172.5 mm / 6-13/16"
K Track 360.0 mm / 14-3/16" 142.0 mm / 5-9/16"
K Track 424.6 mm / 16-11/16" 167.5 mm / 6-5/8"
Maximum Length of the Catenary Wires on Larger Radius Curves.
Track System Radius
C Track 515.0 mm / 20-1/4"
C Track 579.3 mm / 22-13/16"
C Track 643.6 mm / 25-5/16"
K Track 553.9 mm / 21-13/16" 218.0 mm / 8-9/16"
K Track 618.5 mm / 24-3/8"
Catenary Wire Length Item No.
70142
70172
70142
70167
Maximum Catenary
Wire Length
202.5 mm / 8"
228.2 mm / 9"
253.5 mm / 10"
243.7 mm / 9-5/8"
25
