5 Electrical installation
Wiring

Design of the cables

5.3.2 Design of the cables
The cables used must comply with the approvals required for the location
ƒ
(e.g. UL).
The cross−section of the PE conductor must be dimensioned according to
ƒ
the relevant national regulations.
The effectiveness of a shielded cable is reached by:
ƒ
–
Providing a good shield connection through large−surface shield
contact.
–
Using only braided shields with low shield resistance made of tin−plated
or nickel−plated copper braid.
–
Using braided shields with an overlap rate > 70 % and an overlap angle
of 90 °.
–
Keeping unshielded cable ends as short as possible.
Use system cables or shielded cables for these connections:
Motor
ƒ
Motor holding brake (shielding is required when being integrated into the
ƒ
motor cable; connection to optional motor brake control)
Motor temperature monitoring
ƒ
The following connections need not be shielded:
DC bus, cable length up to 0.3 m
ƒ
5.3.3

How to connect the shield

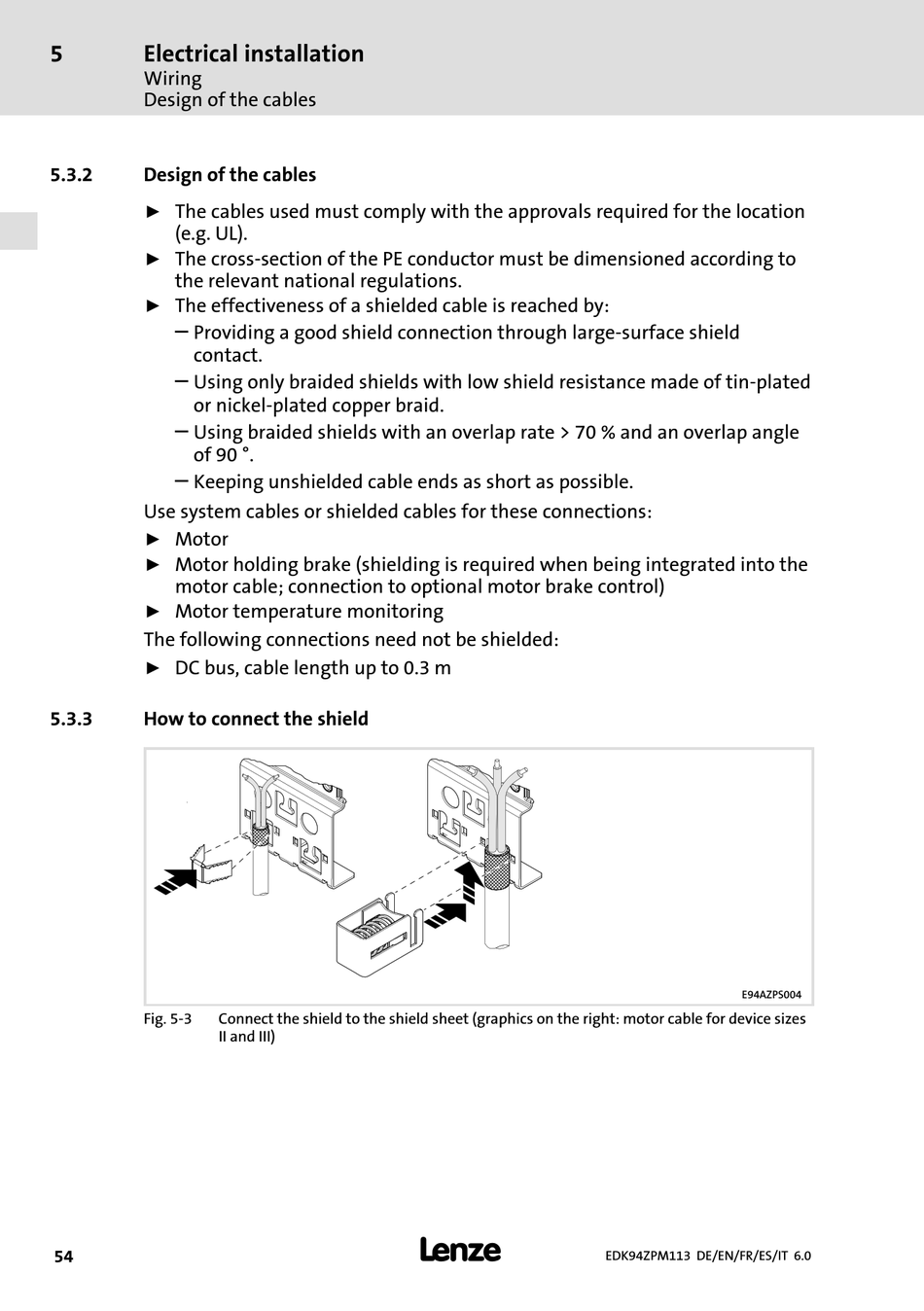

Fig. 5−3 Connect the shield to the shield sheet (graphics on the right: motor cable for device sizes
II and III)
54
l
E94AZPS004
