4.2

Arrangement of the devices

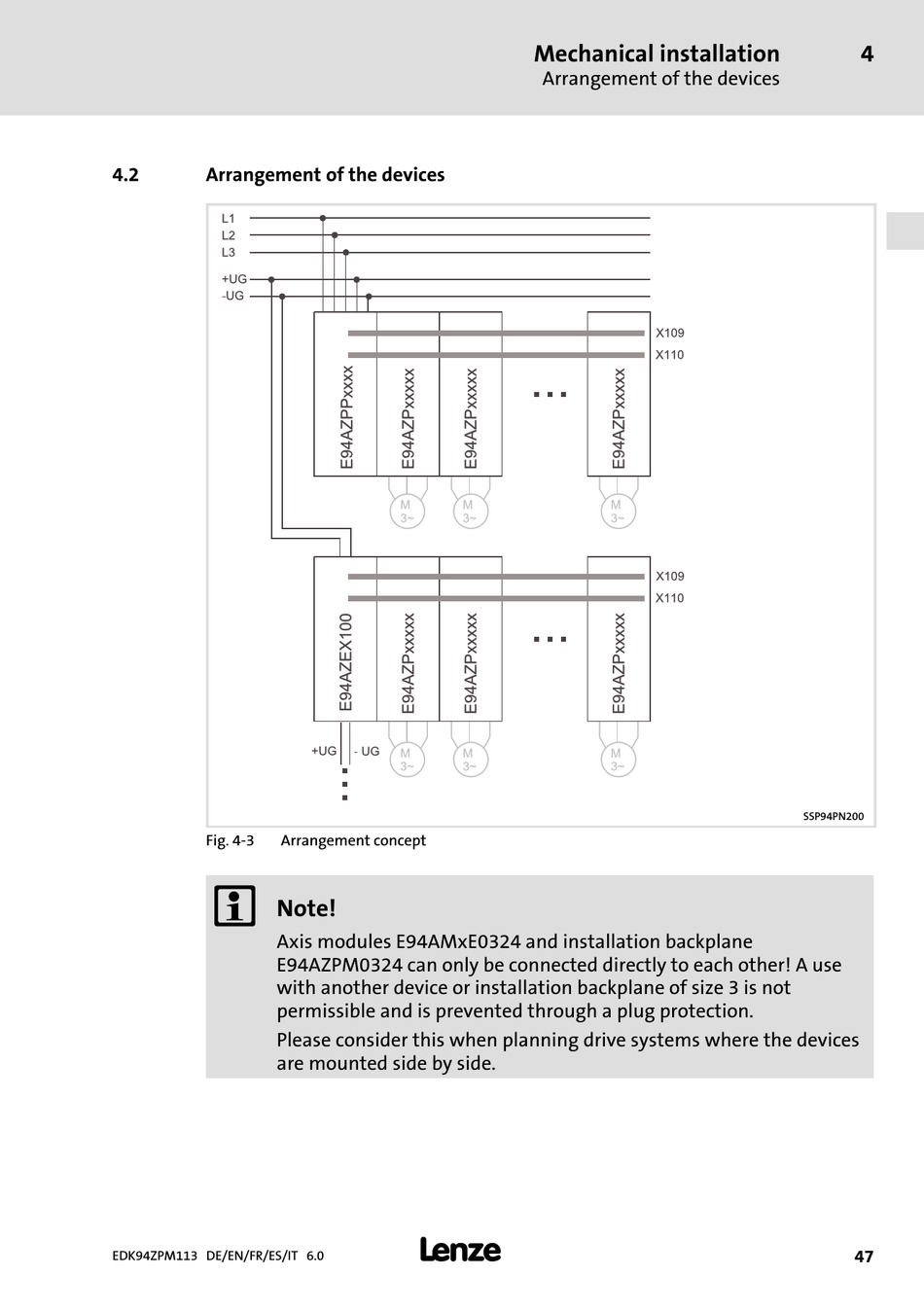

Fig. 4−3 Arrangement concept
)
Note!
Axis modules E94AMxE0324 and installation backplane
E94AZPM0324 can only be connected directly to each other! A use
with another device or installation backplane of size 3 is not
permissible and is prevented through a plug protection.
Please consider this when planning drive systems where the devices
are mounted side by side.
EDK94ZPM113 DE/EN/FR/ES/IT 6.0
Mechanical installation
Arrangement of the devices
l
4
SSP94PN200
47
