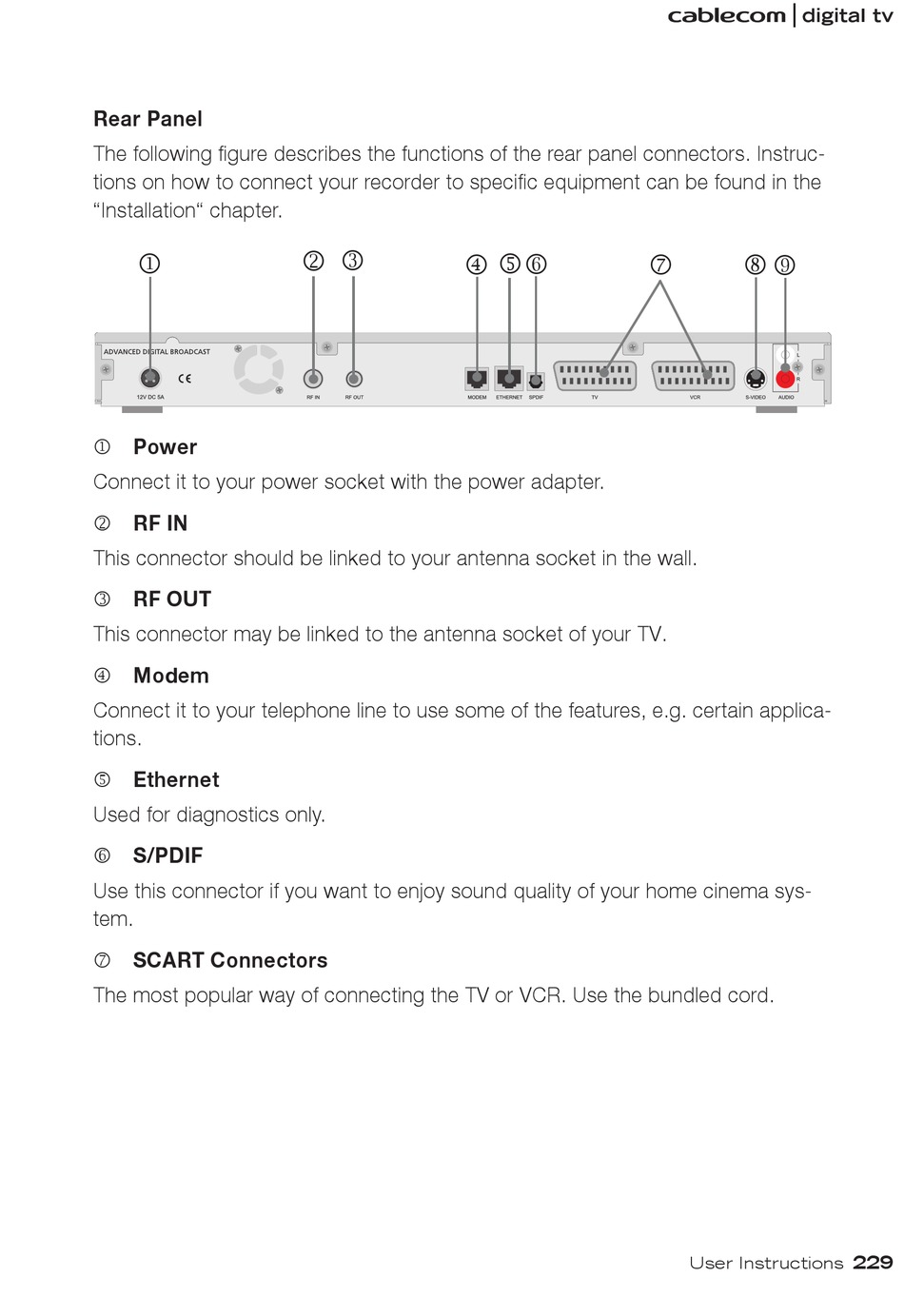

Rear Panel
The following figure describes the functions of the rear panel connectors. Instruc-
tions on how to connect your recorder to specific equipment can be found in the
"Installation" chapter.
 

     
 Power
Connect it to your power socket with the power adapter.
 RF IN
This connector should be linked to your antenna socket in the wall.
 RF OUT
This connector may be linked to the antenna socket of your TV.
 Modem
Connect it to your telephone line to use some of the features, e.g. certain applica-
tions.
 Ethernet
Used for diagnostics only.
 S/PDIF
Use this connector if you want to enjoy sound quality of your home cinema sys-
tem.
 SCART Connectors
The most popular way of connecting the TV or VCR. Use the bundled cord.
