Moulding spindle adjustment

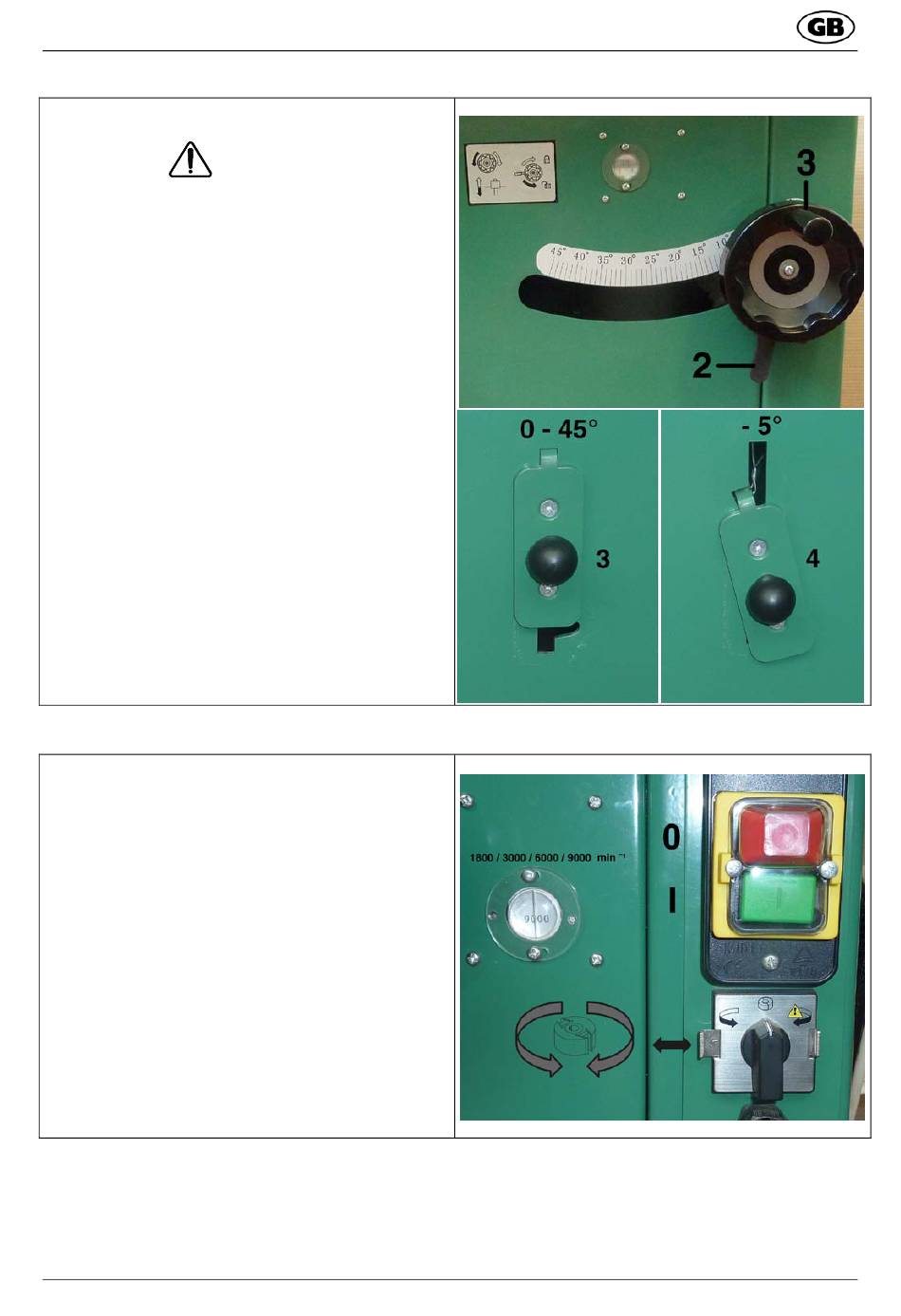

Figure M
!! Caution!
The moulding spindle should only be adjusted
when the motor is switched off and the moulding
tool is at a standstill!
Spindle height adjustment: 95mm
- The handwheel (1) is used to adjust the height.
Disengage the spindle brake at the clamping
-
handle (2) and adjust the height using the
handwheel.
One scale mark on the scale plate corresponds to
-
0.1mm. One turn of the handwheel corresponds
to 2mm.
- When the tool height has been successfully
adjusted, firmly tighten the clamping handle.
Always perform a test moulding and
remeasure the workpiece!
Note
Figure N
- The machine door on the front side must be
closed as per the regulations for the machine to
be operated.
Connect the main cable
-
- Turn the direction switch to "left or right".
Switch on the motor switch using the green button
-
of the operating switch.
To switch the machine off normally, use the red
-
button of the operating switch.
The "emergency stop" can be used to stop the
-
machine in an emergency.
