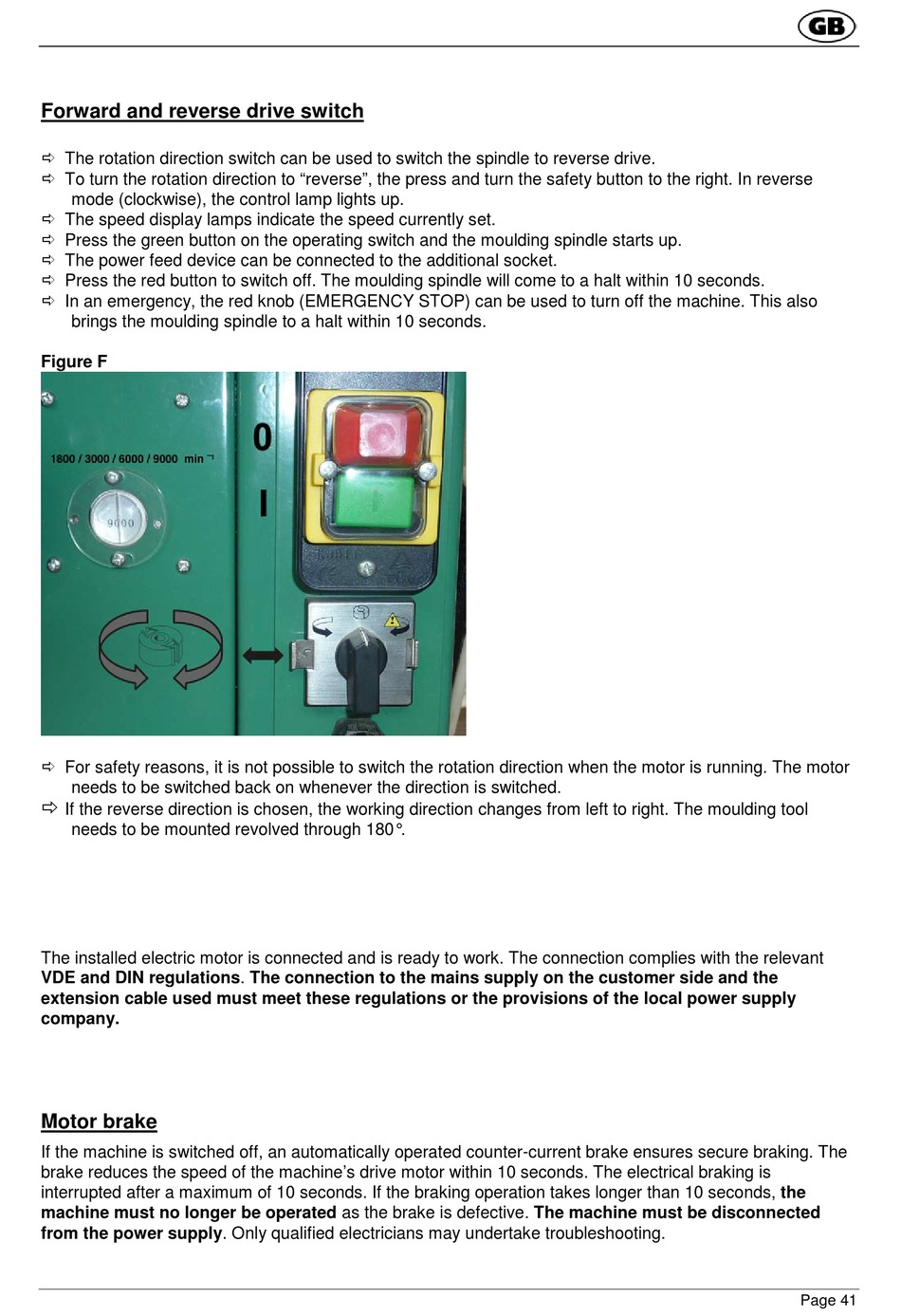

Forward And Reverse Drive Switch - Scheppach Molda 5.0f Originalbetriebsanleitung

Forward and reverse drive switch

 The rotation direction switch can be used to switch the spindle to reverse drive.
 To turn the rotation direction to "reverse", the press and turn the safety button to the right. In reverse
mode (clockwise), the control lamp lights up.
 The speed display lamps indicate the speed currently set.
 Press the green button on the operating switch and the moulding spindle starts up.
 The power feed device can be connected to the additional socket.
 Press the red button to switch off. The moulding spindle will come to a halt within 10 seconds.
 In an emergency, the red knob (EMERGENCY STOP) can be used to turn off the machine. This also
brings the moulding spindle to a halt within 10 seconds.
Figure F
 For safety reasons, it is not possible to switch the rotation direction when the motor is running. The motor
needs to be switched back on whenever the direction is switched.

If the reverse direction is chosen, the working direction changes from left to right. The moulding tool
needs to be mounted revolved through 180°.
The installed electric motor is connected and is ready to work. The connection complies with the relevant
VDE and DIN regulations. The connection to the mains supply on the customer side and the
extension cable used must meet these regulations or the provisions of the local power supply
company.
Motor brake
If the machine is switched off, an automatically operated counter-current brake ensures secure braking. The
brake reduces the speed of the machine's drive motor within 10 seconds. The electrical braking is
interrupted after a maximum of 10 seconds. If the braking operation takes longer than 10 seconds, the
machine must no longer be operated as the brake is defective. The machine must be disconnected
from the power supply. Only qualified electricians may undertake troubleshooting.
Page 41
