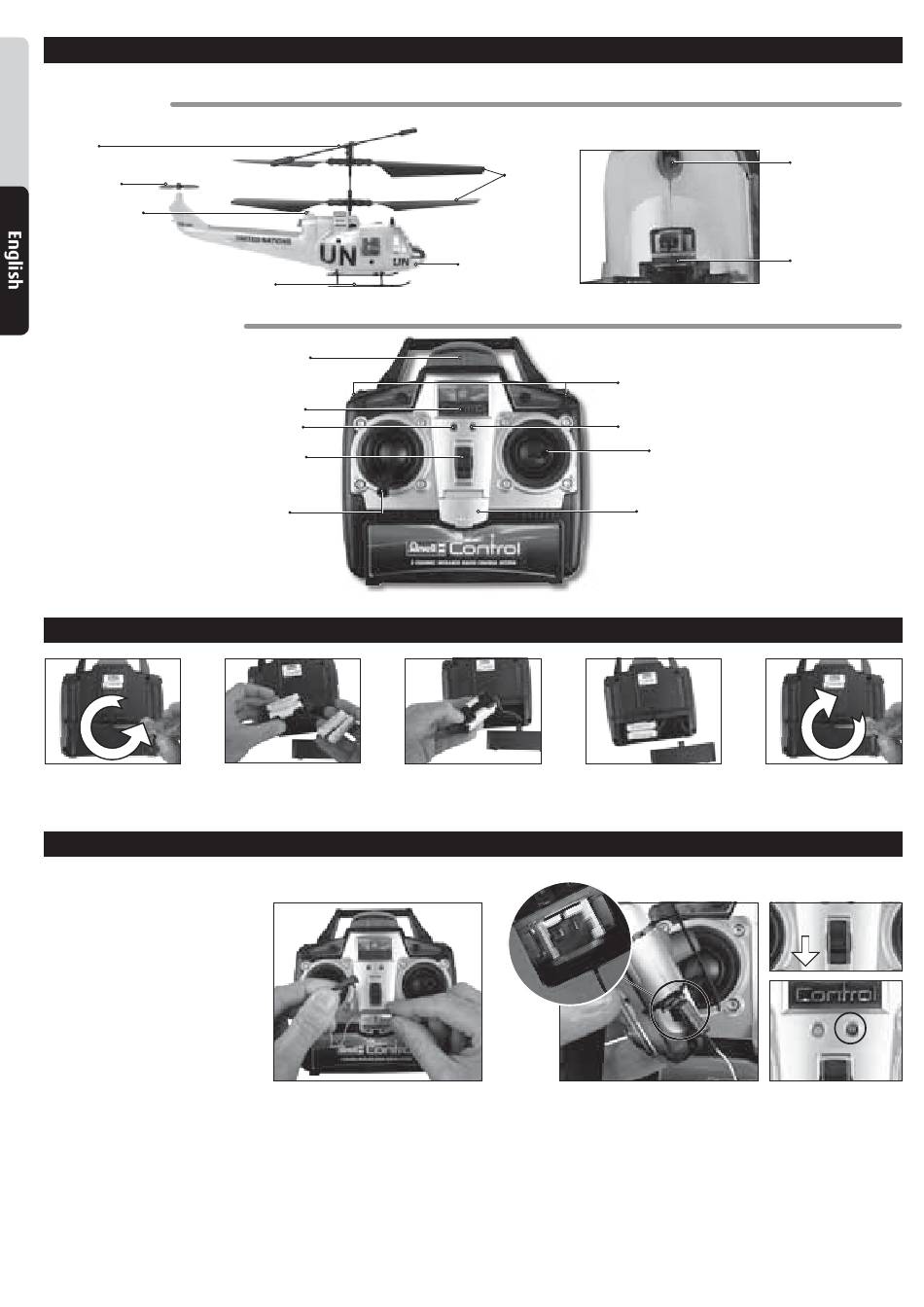

HeLicoPter:
Stabiliser
Tail rotor
Position light
Landing skids
reMote coNtroLLer:
Up/Down throttle stick
1. Unscrew the cover and
remove it.
note: Before recharging and after every flight, always wait 10 to 15 minutes for the battery to cool down. This is in order to avoid damage to the battery. The charging process is electronically
monitored, but you should still monitor the device while charging.
1. Turn off the helicopter and the controller.
2. Carefully insert the charging cable plug into
the socket on the helicopter (pic. 1). The plug
should fit easily into the socket – DO NOT FORCE.
If the plug is not inserted correctly into the
socket, the aircraft may be damaged and there
is also a risk of injury.
3. Then set the remote control unit control switch
down to charge (Fig. 2).
4. The charge status LED turns green and indicates
the charge progress (pic. 3).
5. The aircraft is fully charged when the green
LED is no longer illuminated.
6. After charging, switch the Power to "OFF" and
remove the charging cable from the aircraft.
6
Helicopter and remote control unit
Infrared transmitter
Start control LED
Power LED
Control switch
2. Remove the battery holder.
Charging the Helicopter
the helicopter can fly for about 6 minutes
after approximately 30 minutes of charging.
Contradi-
rectional
rotor blades
Spotlight

Insert Batteries

3. Insert four 1.5 V AA batteries
according to the polarity in
the battery compartment.
Pic. 1
Trim left/right buttons
Charge control LED
Fly backwards/ forwards
Fly left/right
Charge cable compartment
4. Insert the battery holder
into the compartment
again.
Spotlight
ON/OFF switch
5. Close the battery compart-
ment and screw the cover
back in place.
Pic. 2
Pic. 3
