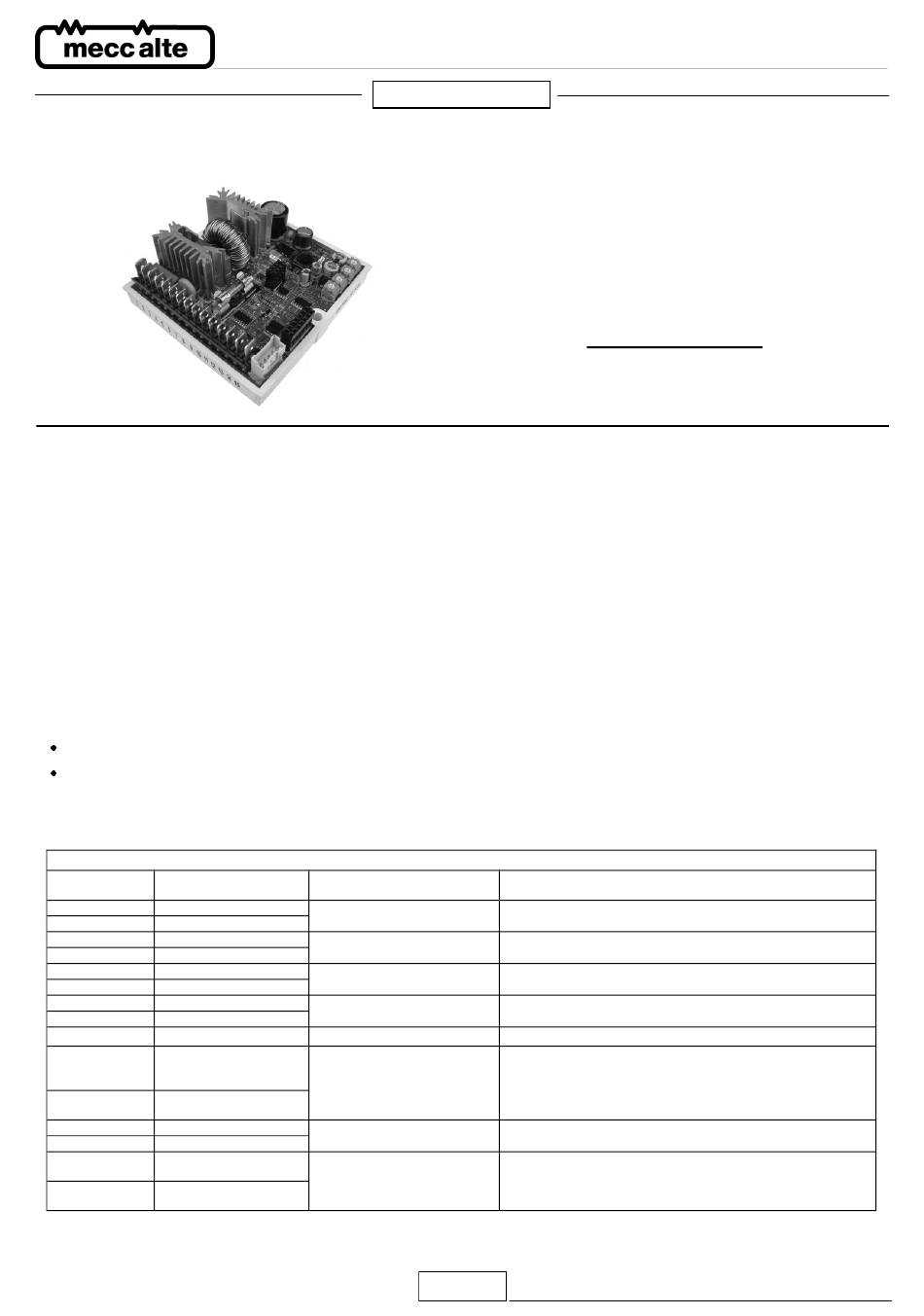

DSR DIGITAL REGULATOR
INSTALLATION
Upon receipt of the digital regulator, perform a visual inspection to ensure that no damage has been sustained during transporta-
tion and movement of the equipment. In the event of damage, advise the shipper, the insurance company, the seller or Mecc Alte
immediately. If the regulator is not installed immediately, store it in its original packaging in a dust and humidity-free environment.
The regulator is normally installed in the generator terminal box. It is fixed with two M4x20 or M4x25 screws and must be installed
in a location where the temperature does not exceed the environmental conditions foreseen.
CONNECTIONS
The digital regulator connections depend on the application and excitation system. An error in connection may have serious
consequences for the unit. Carefully check to make sure that all connections are precise and in accordance with the attached
drawings, before turning on the power
TERMINALS
The connections must be made using cables having a minimum diameter :
1,5 mm² for power cables on terminals 1, 2, 3 and 9 (Exc-, Aux/exc+, Aux)
0,5 mm² for signal cables
INPUTS AND OUTPUTS : TECHNICAL SPECIFICATIONS
(1)
Terminal Name
1 Exc-
2 Aux/Exc+
3 Aux/Exc+
9 Aux/Neutral
4 F_phase
5 F_Phase
6 H_phase
7 H_phase
8 Aux/Neutral
10 Vext/Pext
11 Common
12 50/60Hz
13 Common
14 A.P.O.
15 Common
Note 1) The terminals are connected to each other on the board: 2 with 3, 4 with 5, 6 with 7, 8 with 9, 11 with 13 and 15.
Note 2) with external EMI SDR 128/K filter (3m without EMI filter)
Note 3) starting from revision 10 of the Firmware. It is convenient do not exceed ±10%
ECO - ECP MANUAL

DSR APPENDIX

.
TABELLA 1 : CONNETTORE CN1
Function
Excitation
Power
Sensing
Sensing
Input for remote voltage control
Jumper Input 50/60Hz
Active protections output
52
Further information about DSR regulator are
available in the web site download area at
following address :
www.meccalte.com
Specifications
Continuous Rating : 4Adc max
Transitory Rating : 12Adc peak
Frequency : from 12Hz to 72Hz
Range: 40Vac - 270Vac
Range: 140Vac - 280Vac
Burden : <1VA
Range: 70Vac - 140Vac
Burden : <1VA
Type: Not isolated
Range: 0 - 2,5 Vdc or Potentiometer 10K
Adjustment: from -14% to +14%
Burden: 0 - 2 mA (sink)
(2)
Max length: 30m
Type: Not isolated
Max length: 3m
Type: Open collector not isolated
Current : 100mA
Voltage: 30V
(2)
Max length: 30m
ENGLISH
(3)
