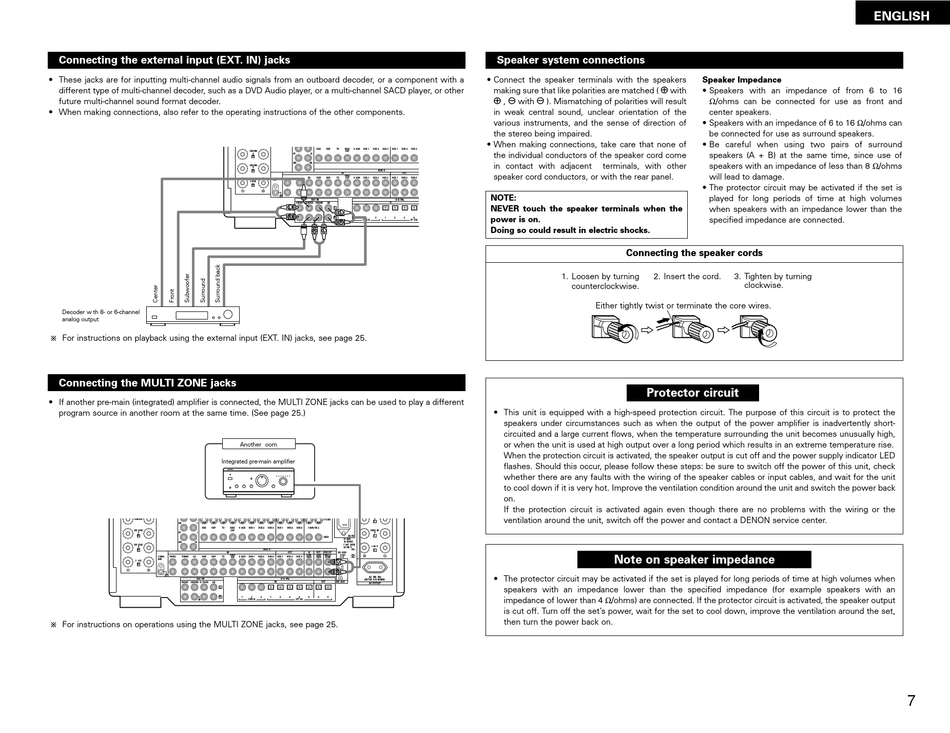

Connecting the external input (EXT. IN) jacks
• These jacks are for inputting multi-channel audio signals from an outboard decoder, or a component with a
different type of multi-channel decoder, such as a DVD Audio player, or a multi-channel SACD player, or other
future multi-channel sound format decoder.
• When making connections, also refer to the operating instructions of the other components.
Decoder w th 8- or 6-channel
analog output
For instructions on playback using the external input (EXT. IN) jacks, see page 25.
Connecting the MULTI ZONE jacks
• If another pre-main (integrated) amplifier is connected, the MULTI ZONE jacks can be used to play a different
program source in another room at the same time. (See page 25.)
Integrated pre-main amplifier
CENTER
SW C
DVD VDP TV
SUR OUND
A SR L
R
SBR SB
SUR OUND
B
R
IN
S GNAL PHONO TUNER CD DVD VDP TV
GND
S ACK
R
EXT IN
FRONT CENTER SU ROUND SB
L
R
SW
For instructions on operations using the MULTI ZONE jacks, see page 25.
DVD VDP TV DBS/ V AUX VCR 1 VCR 2 VCR 3 VCR 1 VCR 2
URROUND SAT
A SR SL
R
SBR SBL
URROUND
B
R AUD O
IN OUT
DBS/
CD DVD VDP TV SAT V AUX VCR 1 VCR 2 VCR 3 VCR 1 VCR-2
GND
S BACK
R
EXT IN D G TAL
N
FRONT CENTER URROUND SB
L
L
L
R
R
3 1 2 3
SW C X AL
R
R L
Another oom
-A
S-V DEO
L
DBS/ V AUX VCR-1 VCR-2 VCR-3 VCR 1 VCR-2 VCR-3 1-MON TOR 2
SAT SURRO ND
-B
L
AC IN
VIDEO
SP AKER
M EDANCE
F ONT ENTER
S BA K
SB / MU TI
AUD O
~16Ω L
OUT N OUT PRE OUT SUR OUND
DBS/ CDR/ CDR/ MULTI A OR B ~16Ω
SAT V AUX VCR-1 VCR-2 VCR-3 VCR 1 VCR 2 VCR 3 TAPE TAPE ZONE A + B ~16Ω
L
R
AC 30V 0Hz
D G TAL
SW TCH D 10 W MAX
IN OUT RS 232C
AC OUTLET
1 2 3 1 2 3 4 5 4 5
COAX AL OPT CAL
Speaker system connections
• Connect the speaker terminals with the speakers
making sure that like polarities are matched ( < with
< , > with > ). Mismatching of polarities will result
in weak central sound, unclear orientation of the
various instruments, and the sense of direction of
the stereo being impaired.
• When making connections, take care that none of
VCR 3
the individual conductors of the speaker cord come
in contact with adjacent
speaker cord conductors, or with the rear panel.
VCR-3
NOTE:
NEVER touch the speaker terminals when the
power is on.
4
OP ICAL
Doing so could result in electric shocks.
1. Loosen by turning
counterclockwise.
• This unit is equipped with a high-speed protection circuit. The purpose of this circuit is to protect the
speakers under circumstances such as when the output of the power amplifier is inadvertently short-
circuited and a large current flows, when the temperature surrounding the unit becomes unusually high,
or when the unit is used at high output over a long period which results in an extreme temperature rise.
When the protection circuit is activated, the speaker output is cut off and the power supply indicator LED
flashes. Should this occur, please follow these steps: be sure to switch off the power of this unit, check
whether there are any faults with the wiring of the speaker cables or input cables, and wait for the unit
to cool down if it is very hot. Improve the ventilation condition around the unit and switch the power back
on.
If the protection circuit is activated again even though there are no problems with the wiring or the
ventilation around the unit, switch off the power and contact a DENON service center.
• The protector circuit may be activated if the set is played for long periods of time at high volumes when
speakers with an impedance lower than the specified impedance (for example speakers with an
impedance of lower than 4 Ω/ohms) are connected. If the protector circuit is activated, the speaker output
is cut off. Turn off the set's power, wait for the set to cool down, improve the ventilation around the set,
then turn the power back on.
Speaker Impedance
• Speakers with an impedance of from 6 to 16
Ω/ohms can be connected for use as front and
center speakers.
• Speakers with an impedance of 6 to 16 Ω/ohms can
be connected for use as surround speakers.
• Be careful when using two pairs of surround
speakers (A + B) at the same time, since use of
speakers with an impedance of less than 8 Ω/ohms
terminals, with other
will lead to damage.
• The protector circuit may be activated if the set is
played for long periods of time at high volumes
when speakers with an impedance lower than the
specified impedance are connected.
Connecting the speaker cords
2. Insert the cord. 3. Tighten by turning
clockwise.
Either tightly twist or terminate the core wires.
Protector circuit
Note on speaker impedance
ENGLISH
7
