Replacing fuses

Pull out the power plug before changing fuses.

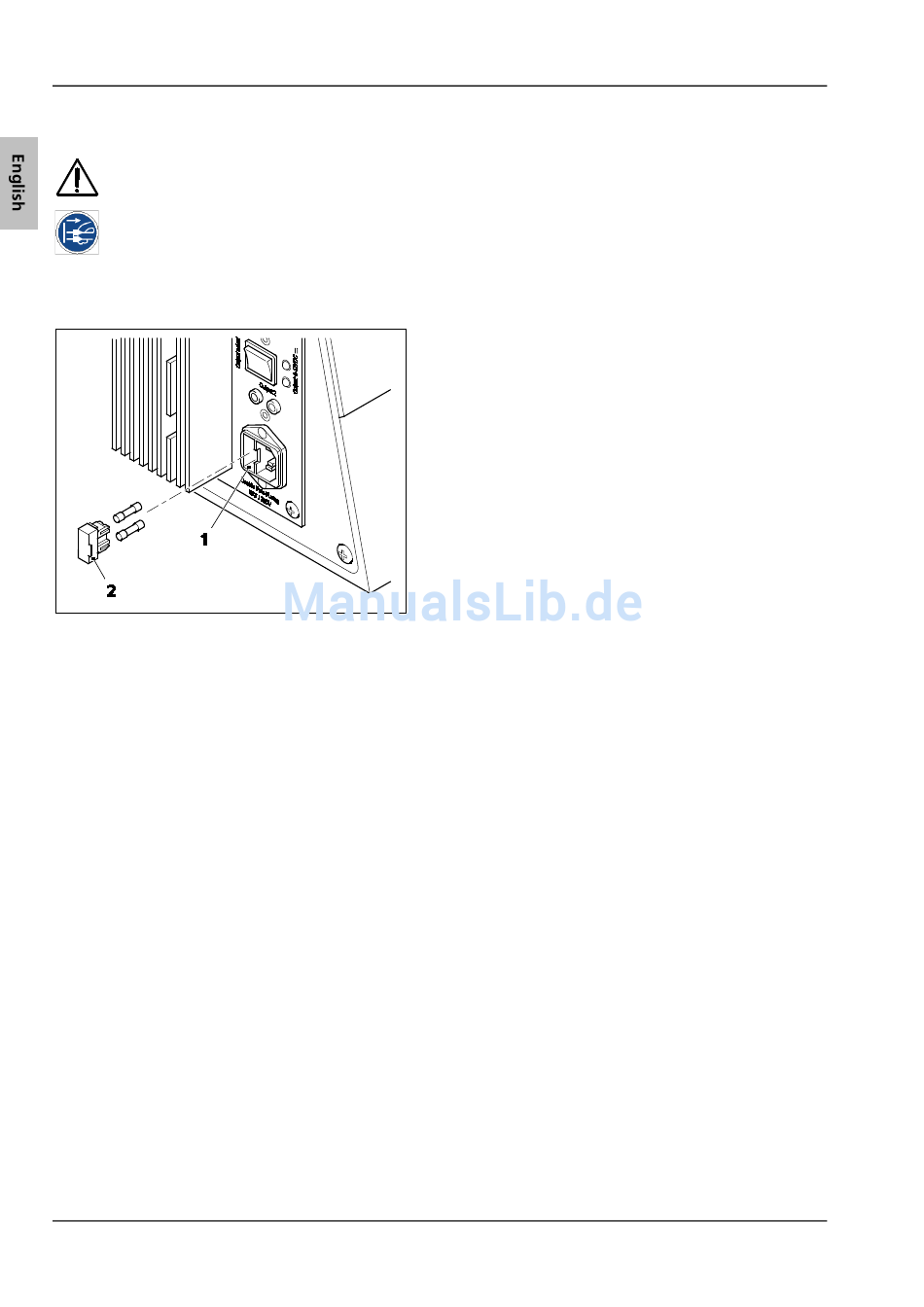

Fig. 12 Replacing the fuses in the Axio
Observer 3 materials and 5 materials
20
INSTALLATION NOTES AND FIRST-TIME SET-UP
431004-8044-010
4.10.1 Changing the fuses in the Axio
Observer 3 materials and
5 materials
The power fuses for the input voltage are located
in the back of the stand of the Axio Observer
3 materials and 5 materials. The fuse compartment
is integrated into the power socket and contains
two T 5.0 A/H 250 V 5 x 20 mm fuses. If the device
fuses fail the cause must first of all be ascertained
and technical problems properly remedied.
•
Pull out the power plug.
•
Pull out the fuse holder (Fig. 12/2) frontward.
•
Remove the fuses from the fuse carrier and
insert new fuses.
•
Reinsert the fuse
compartment (Fig. 12/1) until it clicks into place.
•
Plug in the power cable.
Axio Observer materials
carrier into the fuse
