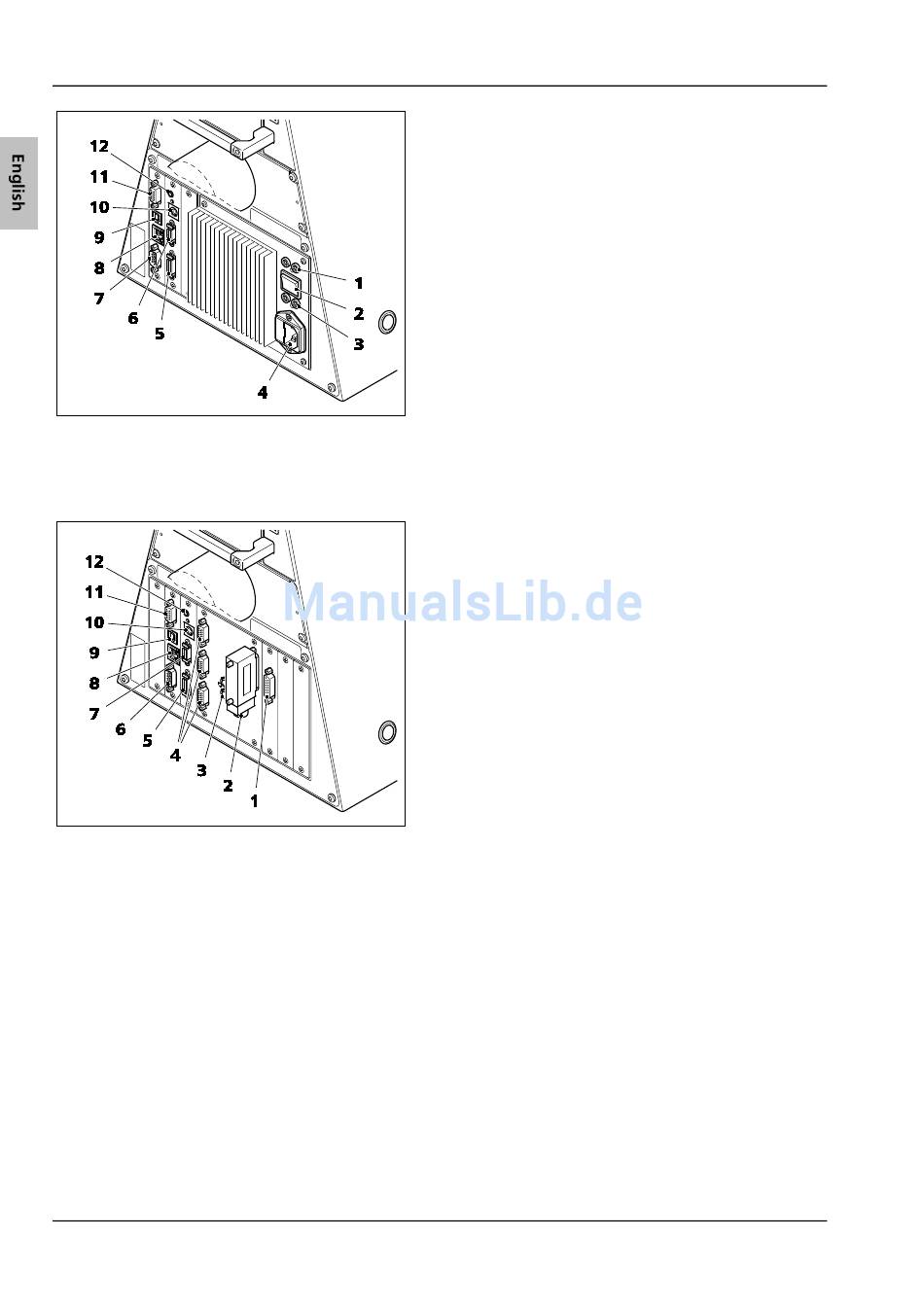

Fig. 9 Axio Observer 5 materials (rear)
Fig. 10 Axio Observer 7 materials (rear)
18
INSTALLATION NOTES AND FIRST-TIME SET-UP
431004-8044-010
4.6 Connectors on the rear of the
Axio Observer 5 materials
Key to figure 9:
1 Connector for LED light / halogen light
transmitted light (output 1)
2
Reflected light / transmitted light selector switch
(LED light / halogen light)
3 Connector for LED light / halogen light
reflected light (output 2)
4 Power socket
5 Connector for LCD display
Transmitted light illumination support
6
Connector for transmitted light shutter
7
RS-232 port
8
TCP/IP port
9
USB port
10
External high speed shutter connector
11
CAN connecting socket
12 Trigger socket (IN/OUT) for shutter
4.7 Connectors on the rear of the
Axio Observer 7 materials
Key to figure 10:
1
Power supply unit socket VP232-2
2 Docking station port (optional)
3 Connector for LED light / halogen light
transmitted light
4
CAN connecting sockets
5
not used
6
RS-232 port
7
Connector for transmitted light shutter
8
TCP/IP port
9
USB port
10
External high speed shutter connector
11
CAN connecting socket
12
Trigger socket (IN/OUT) for shutter
