4.4

Switching on the instrument

Plug the power cable (supplied) into the power socket of the Axio Observer 3 materials or 5 materials.
Switch on the device using the power switch on the microscope,
The Axio Observer 7 materials is supplied with
voltage from the external power unit VP232-2.
•
Plug connecting plug of power supply VP232-2
into the corresponding connector (Fig. 10/1) on
the rear side of the stand.
•
Plug the power cable first into the power
connector of the power supply VP232-2 and
then into a power outlet.
•
Turn on the power supply VP232-2 using the
power switch (Fig. 7/1).
•
Press the standby
Axio Observer 7 materials.
4.5 Connectors on the rear of the
Axio Observer 3 materials
Switch off
connecting any components.
Key to figure 8:
1
Connector for LED light / halogen light
transmitted light (output 1)
2 Reflected light/transmitted light selector switch
(LED light / halogen light)
3 Connector for LED light / halogen light
reflected light (output 2)
4
Power connector
5
CAN connecting socket
6
USB port
09/2015
INSTALLATION NOTES AND FIRST-TIME SET-UP
button on the
the microscope before
431004-8044-010

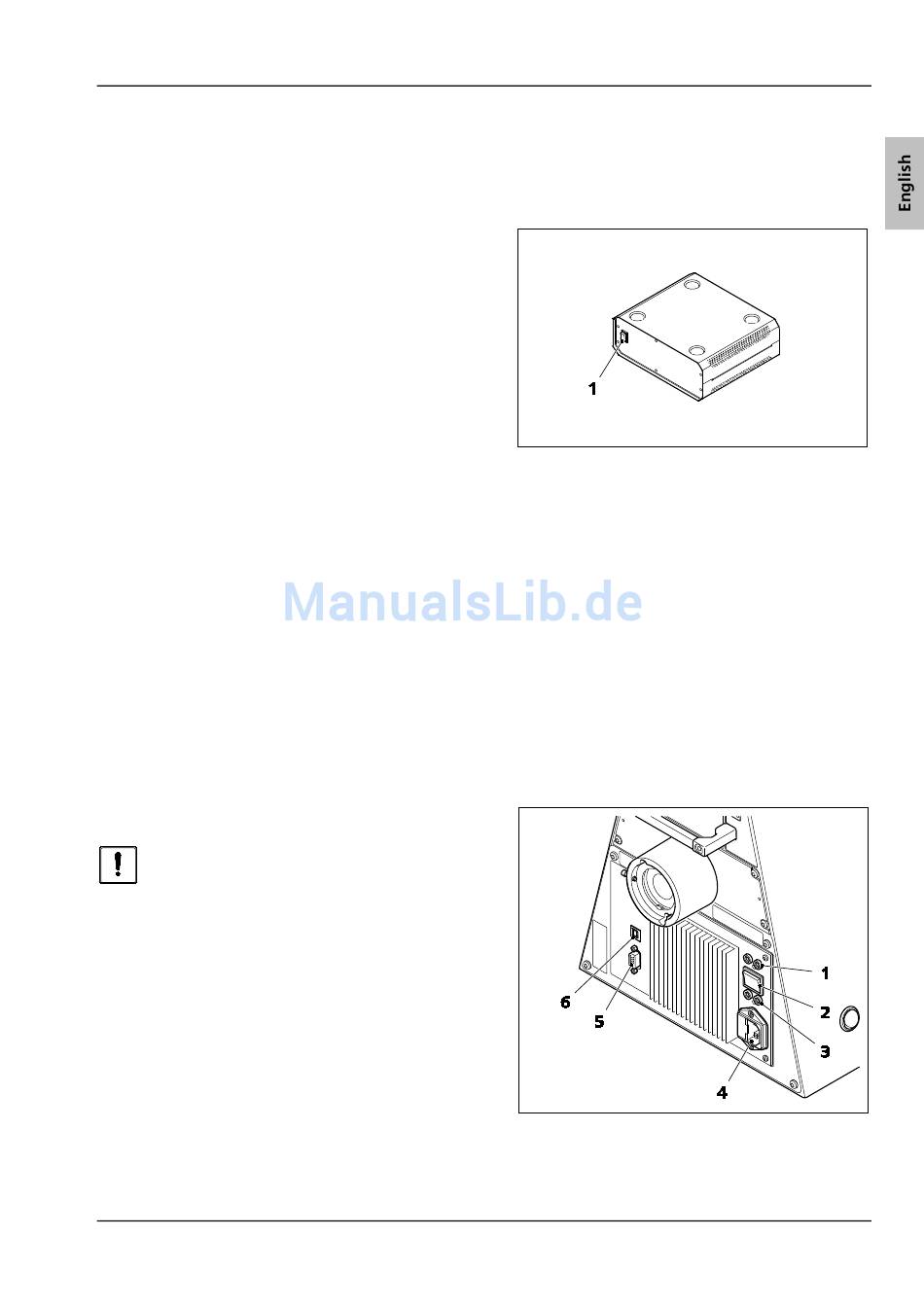

Fig. 7 External power unit VP232-2 of the
Axio Observer 7 materials
Fig. 8 Axio Observer 3 materials (rear)
